Application

Ejectors Application Oil Break

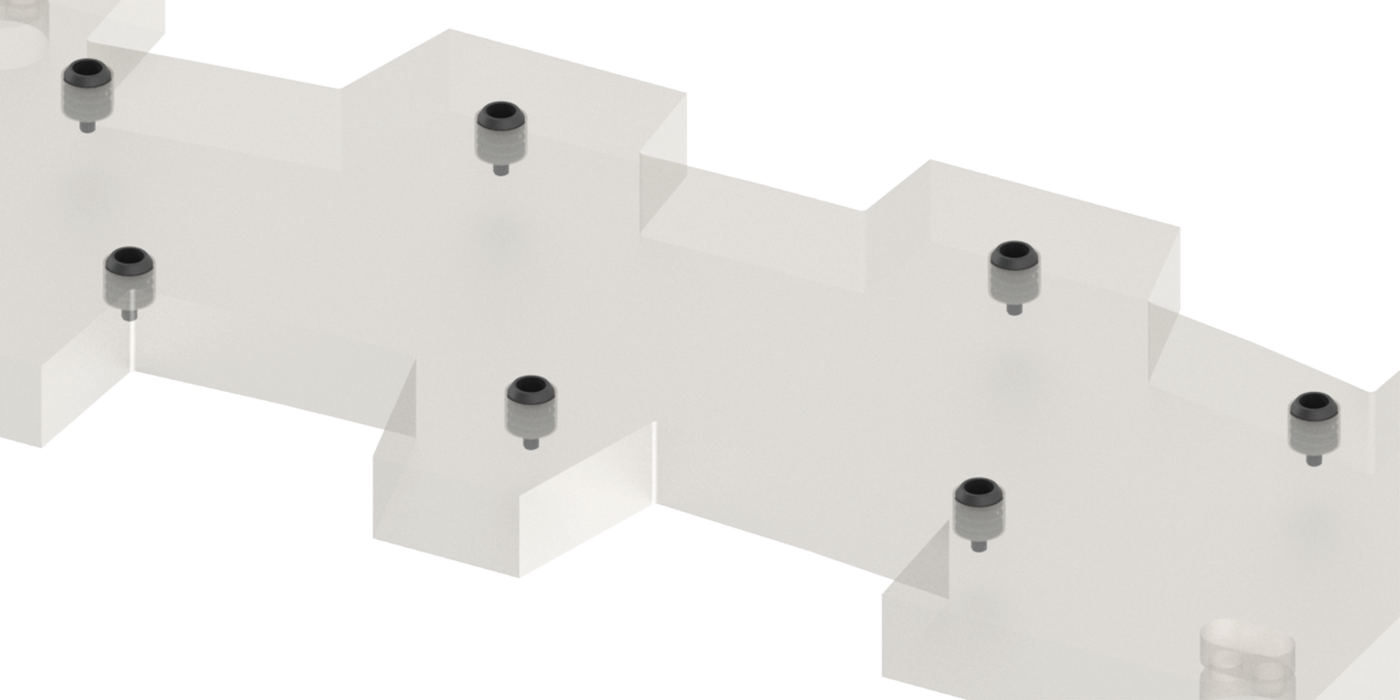

Oil break

Our Stock Ejectors prevent lubricated sheet metal stock from sticking to large surfaces in tooling.

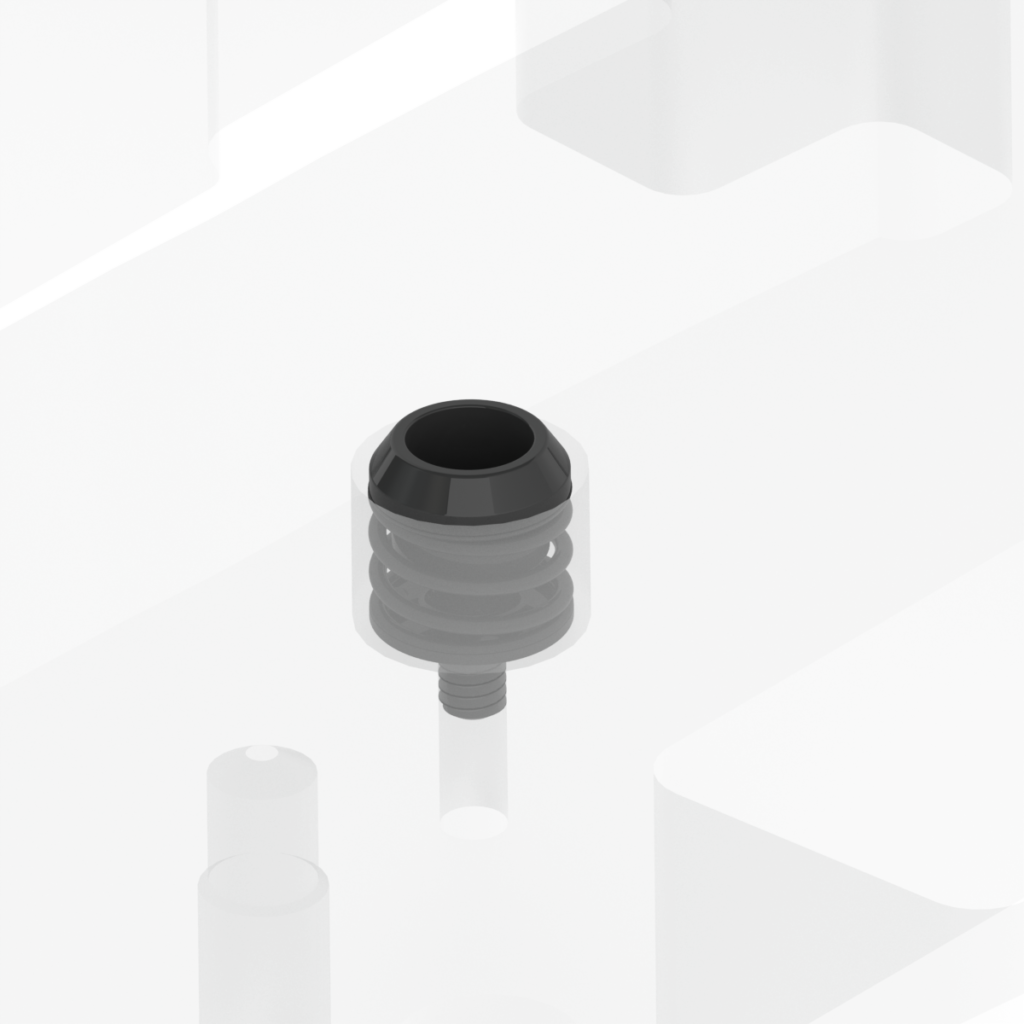

Ejectors Application Oil Break close up
Ejectors Application Part Ejector

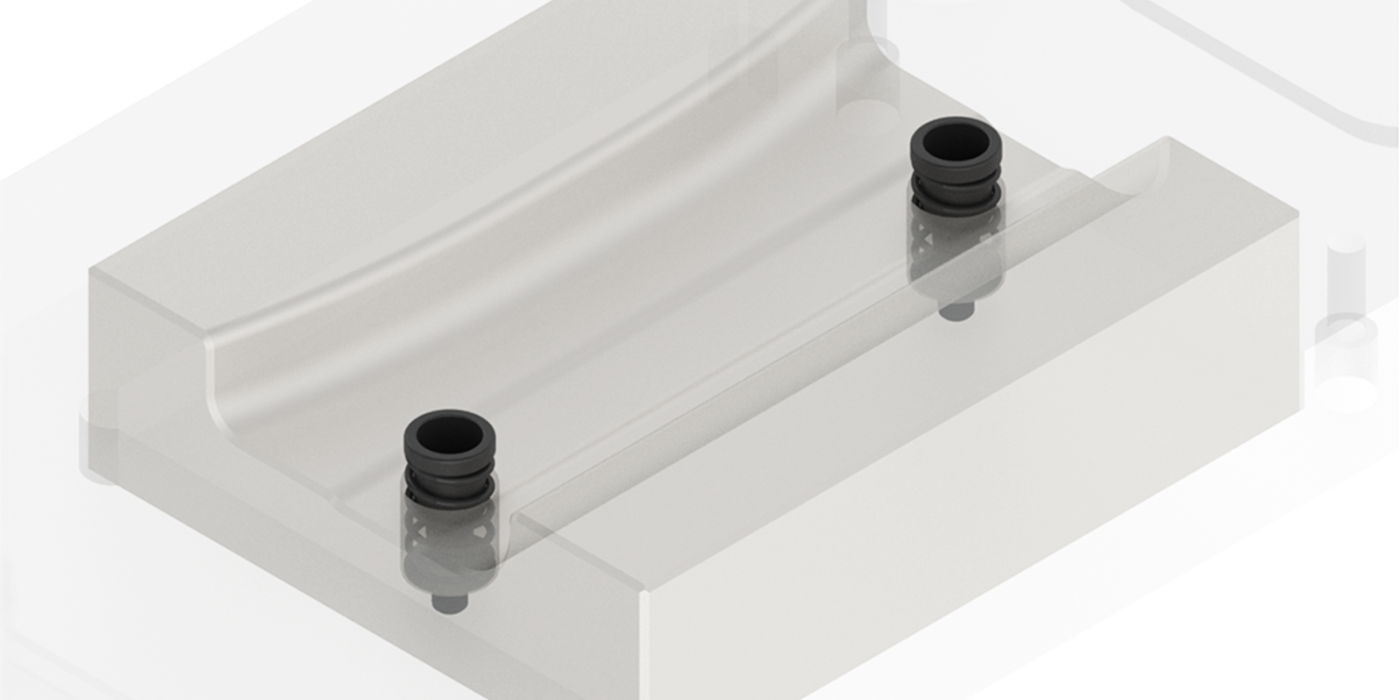

Part ejection

Our Part Ejectors are ideal for applications requiring more travel and force.

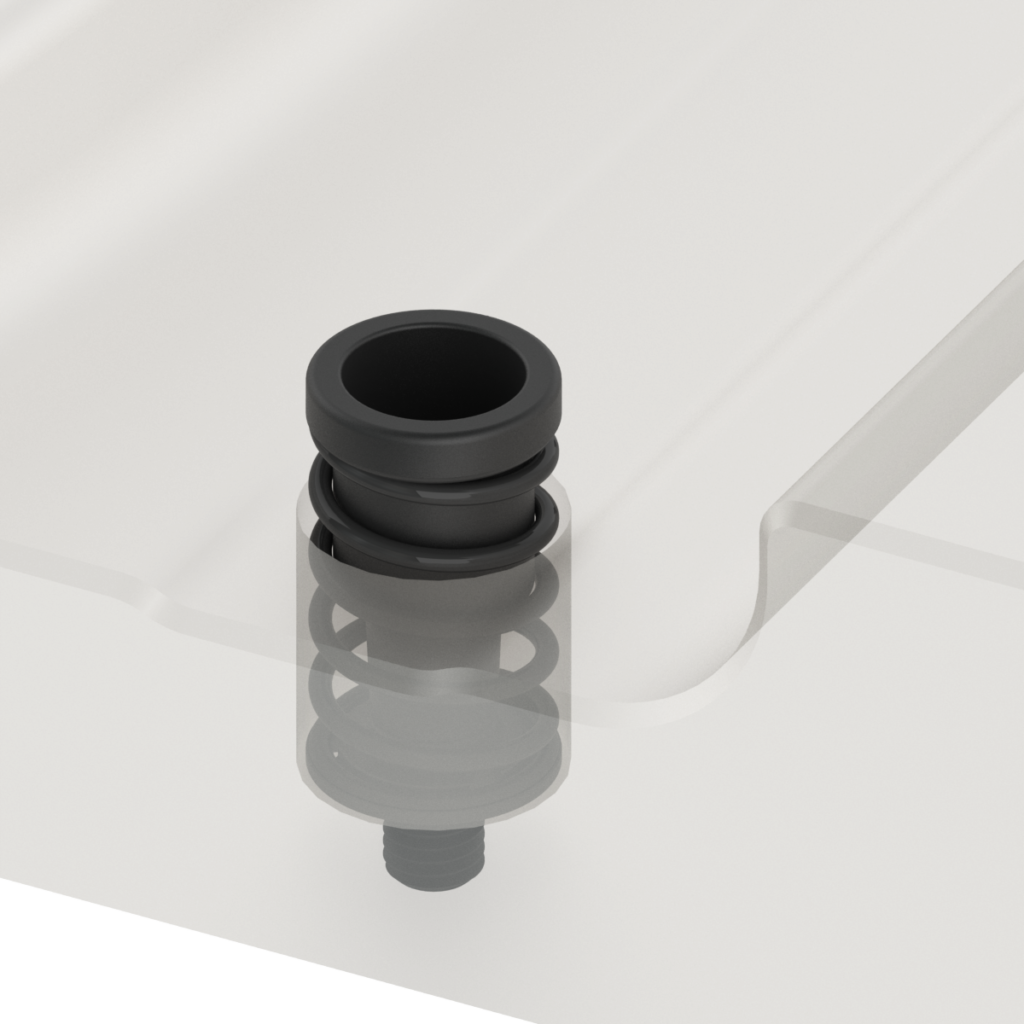

Ejectors Application Part Ejector closeup

Innovation

Designed for superior, long-life performance and all-in-one complete assembly.

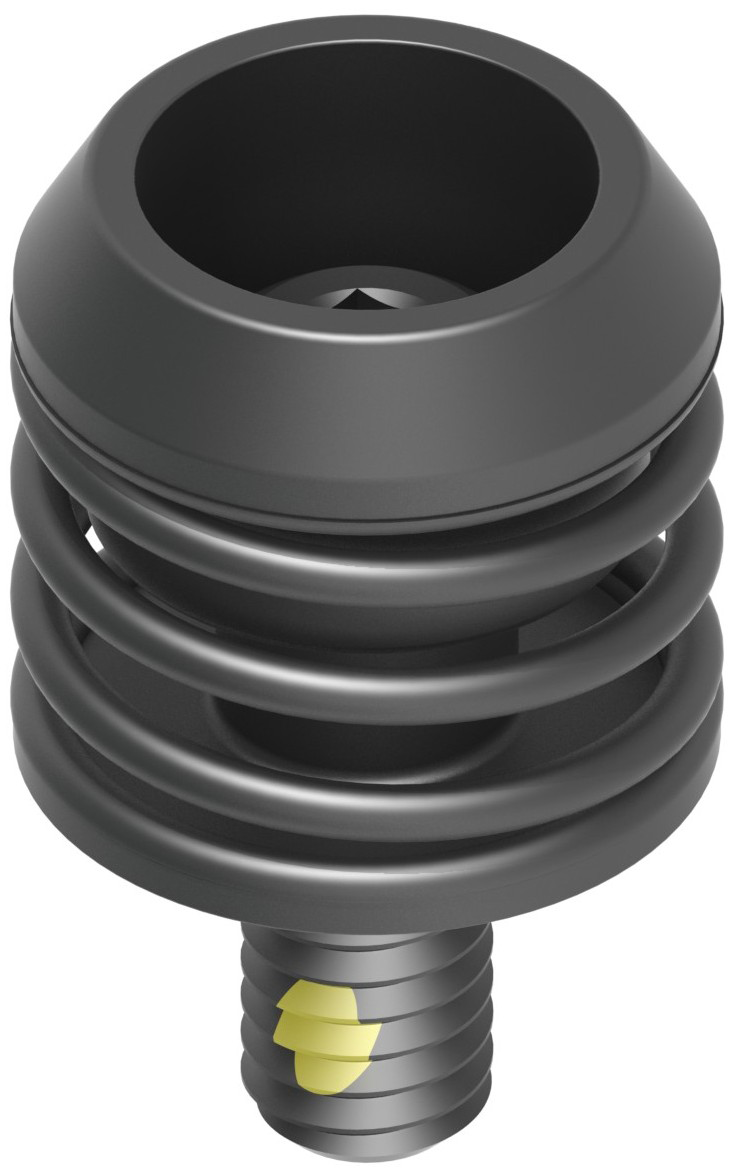

Black ejector .875-.156-S-A
Ejector design features

Design features

  1. Large contact surface
  2. Robust, long-life spring
  3. Complete all-in-one assembly
  4. Flexible and able to tip
  5. Easy assembly with standard tools

We’ve run these Ejectors in dies well past 8 million hits, and they never break a sweat. We require them in all our dies.

Sr. Tooling Engineer, Tier 1 Stamper

These are so slick. Drop in, tighten down, and you’re off. I like that we can use less of them due to their force vs. traditional ejectors that never last.

Designer, Tooling Supplier

These work so well; we’ll never go back to the old methods of oil break. Thanks for a simple and effective solution.

Tool Room Supervisor, Tier 1 Stamper
Man standing at workstation using a pilot ejector

Benefits

  • Superior long-life performance
  • Cost-effective, off-the-shelf assembly
  • Saves labor and time during die assembly

Options

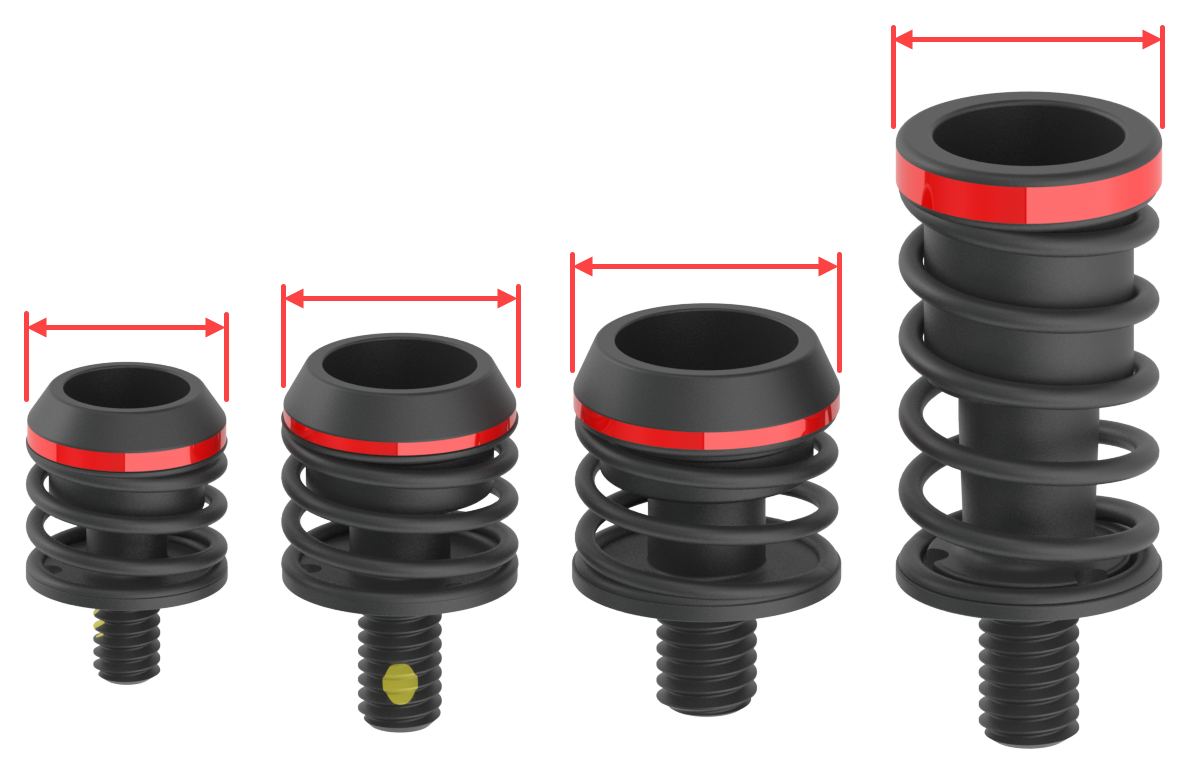

Outside diameter

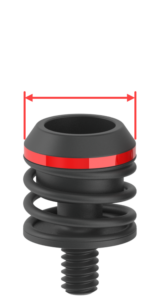

20mm

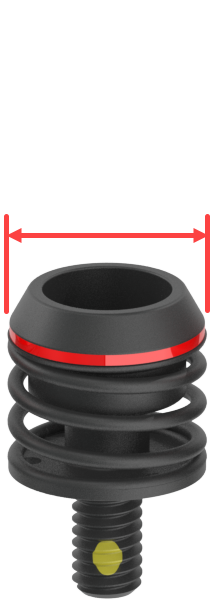

20mm Black ejector with red arrows labeling diameter

22.5mm

22.5mm Black ejector with red arrows labeling diameter

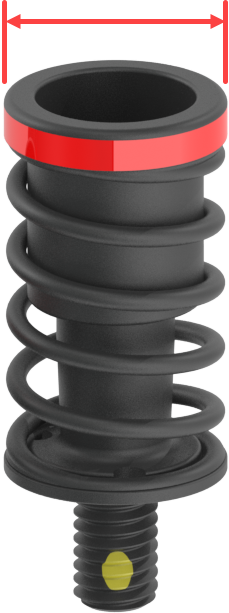

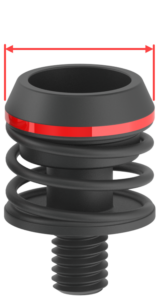

25mm

25mm Black ejector with red arrows labeling diameter

25mm

25mm Black ejector with red arrows labeling diameter

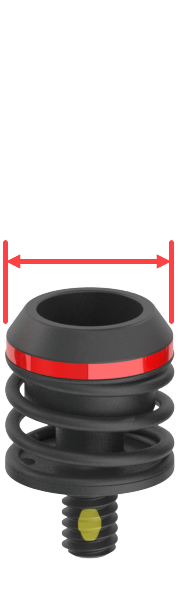

.75"

Ejector showing outside diameter

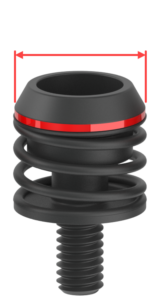

.875"

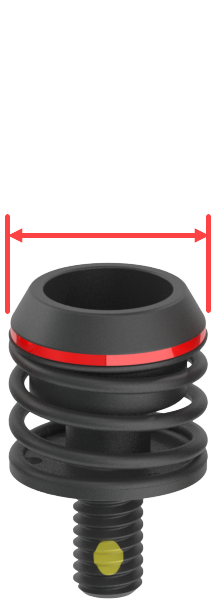

.875mm Black ejector with red arrows labeling diameter

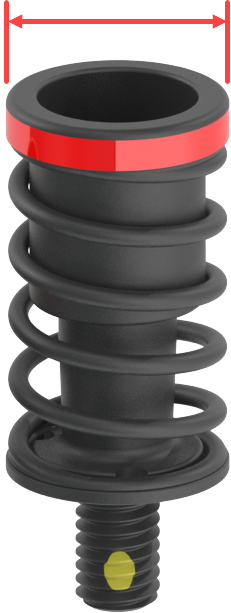

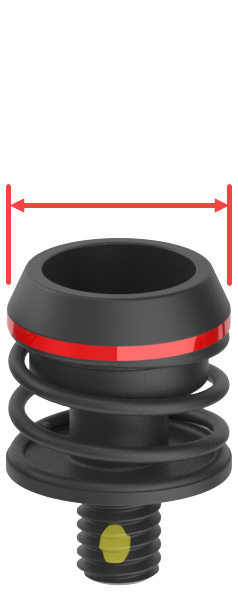

1.00"

1.0mm Black ejector with red arrows labeling diameter

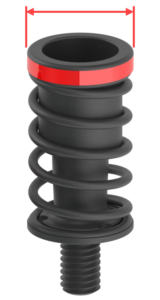

1.00"

1.0mm Black ejector with red arrows labeling diameter

More Details

Use the largest diameter your space will allow

4 guided keepers with red arrow diameter labels

Maximum Travel

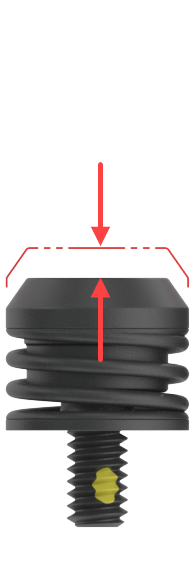

3.2mm

20mm black ejector with red arrows labeling travel

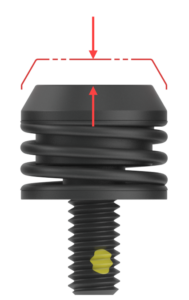

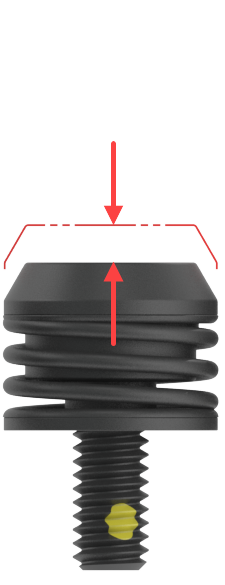

4mm

22.5mm black ejector with red arrow travel labels

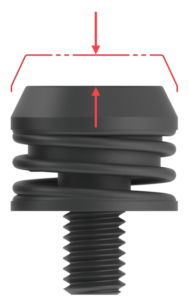

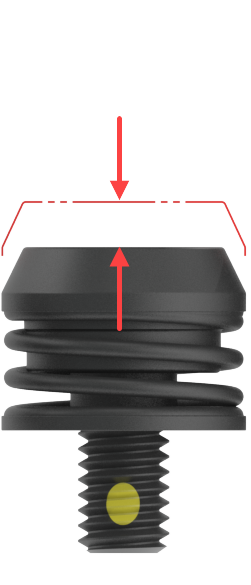

4.8mm

25mm black ejector with red arrow travel labels

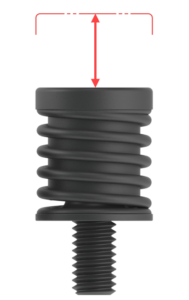

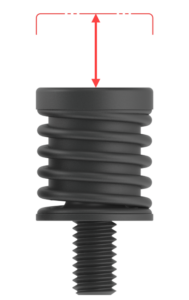

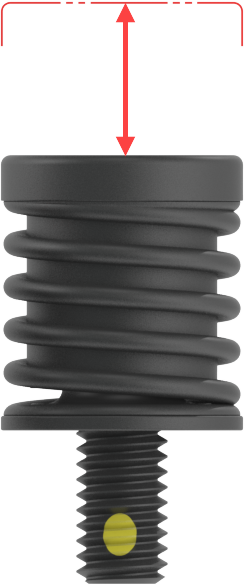

16mm

25mm black ejector with red arrow travel labels

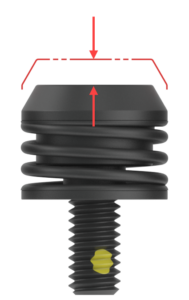

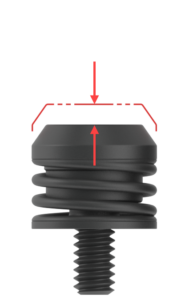

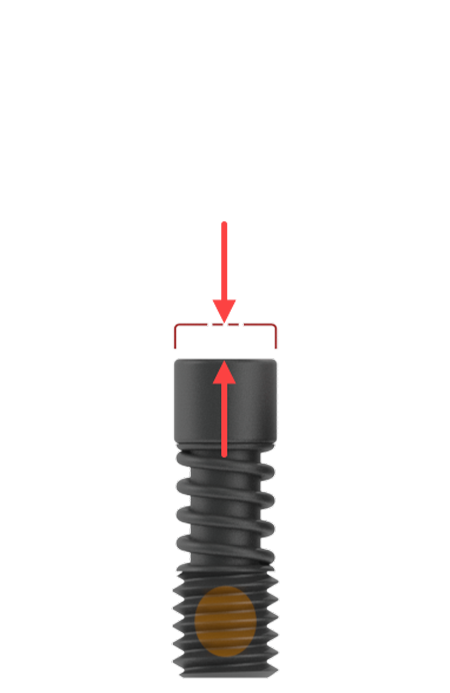

.125"

.75mm black ejector with red arrow travel labels

.156"

.875 black ejector with red arrow travel labels

.188"

1.00mm black ejector with red arrow travel labels

.625"

1.00mm black ejector with red arrow travel labels

More Details

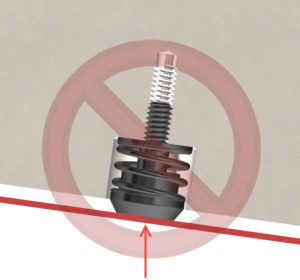

Use of Ejector Assemblies on angled surfaces is NOT recommended

Standard Lifters does not recommend using Ejector units on angled surfaces or where the material is compressing the stripper on an angle. Doing so may cause damage to the Ejector assembly.

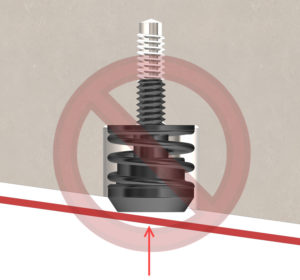

Ejector showing that it doesn't fit on an angle
Ejector showing that it doesn't fit on an angle
See all technical data

Pricing

Model SE-20mm-3.2mm-S-A ejector

$7.95

SE-20mm/.750”

Model SE-22.5mm-4mm-S-A ejector

$8.95

SE-22.5mm/.875”

Model SE-25mm-4.8mm-S-A ejector

$9.95

SE-25mm/1.00”

Model PE-25mm-16mm-S-A ejector

$15.95

PE-25mm/1.00”

Full pricing detail
Ejectors Configurator Preview

Configure Product

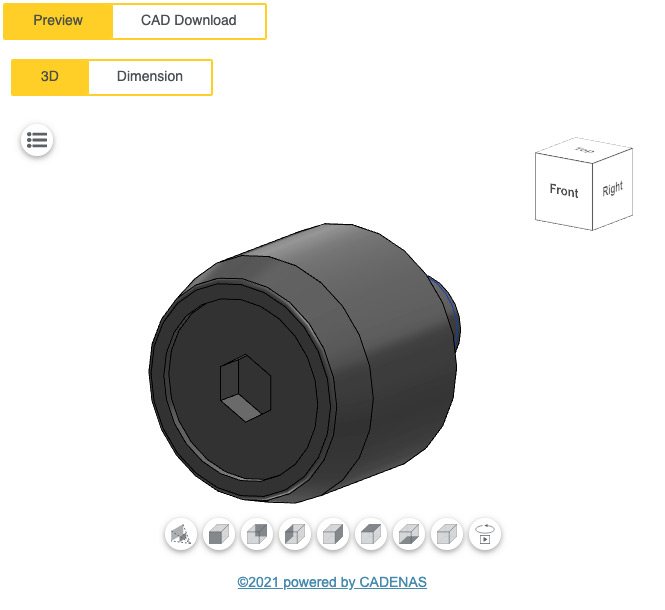

Preview and download the CAD file you need with our product configuration tool.

See product configuration
