Instead of manufacturing stock lifters or stock rails in-house, save design time, build time, and shop labor with Standard Lifters' "bolt-on-ready" Rail Lifter assemblies. Drag and drop them into your designs to complete projects faster and more economically. Lifter heights and travel are readily configurable for your specific die application. They’re easy to repair with on-shelf components from Standard Lifters and are compatible with virtually all gas spring brands.

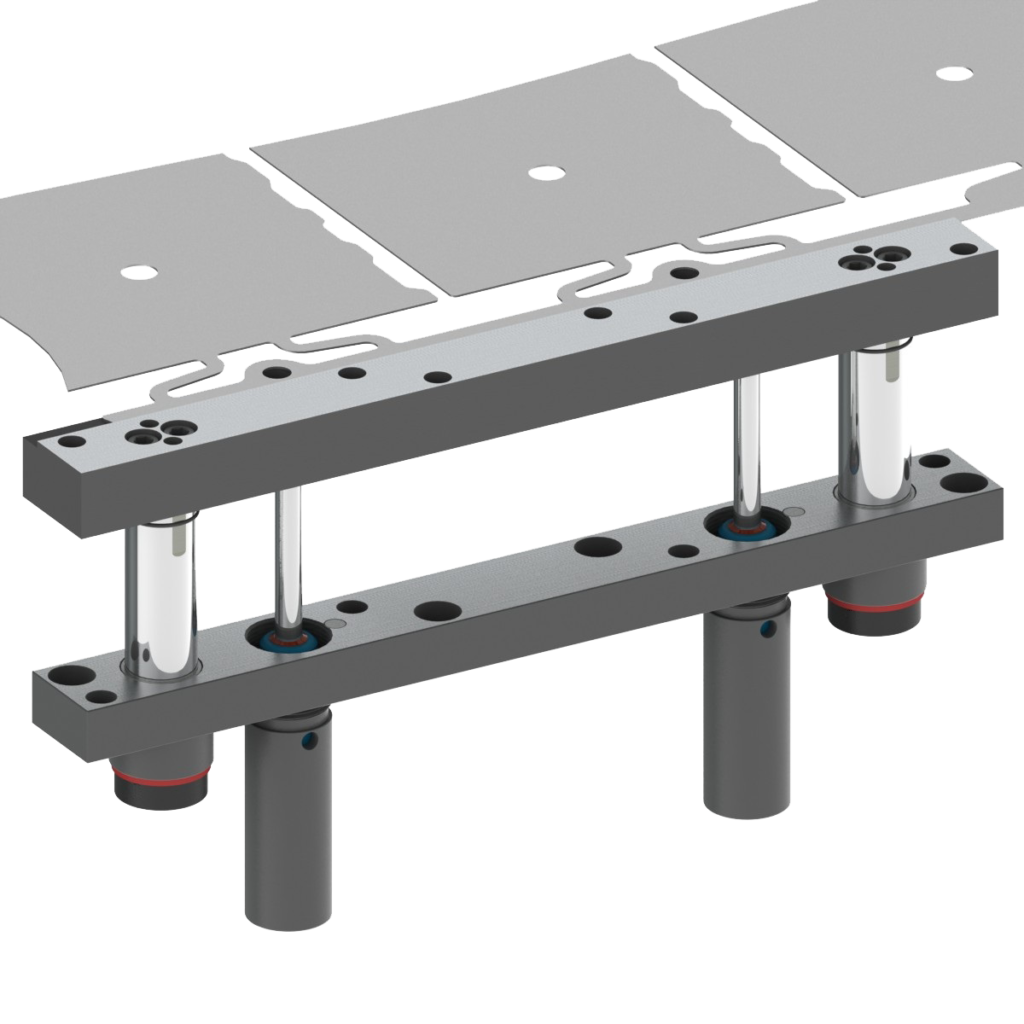

Used in metal stamping dies to lift sheet metal stock through die stations.
Innovation

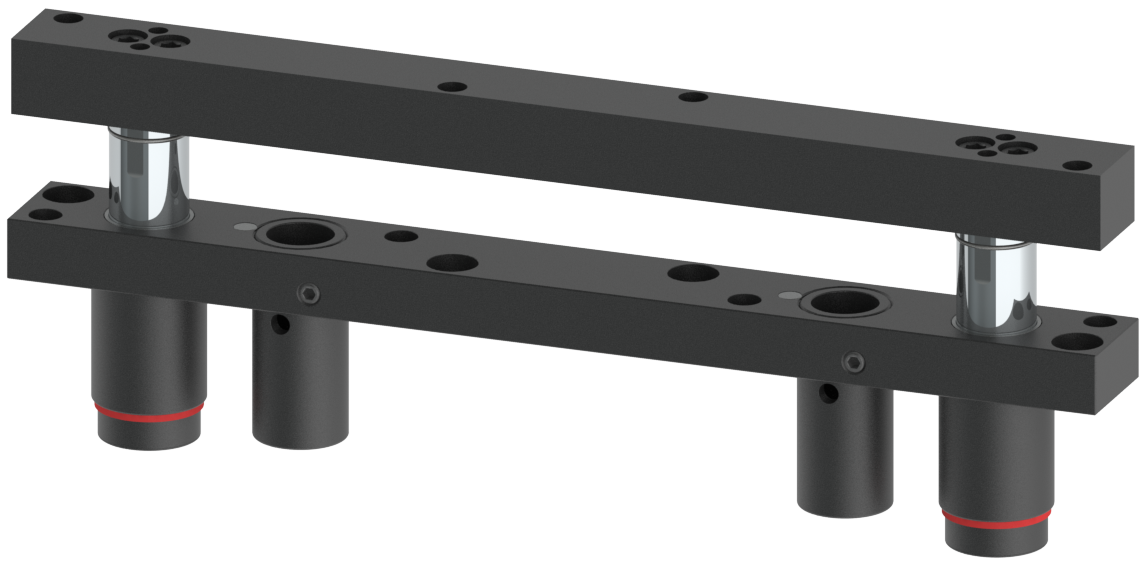

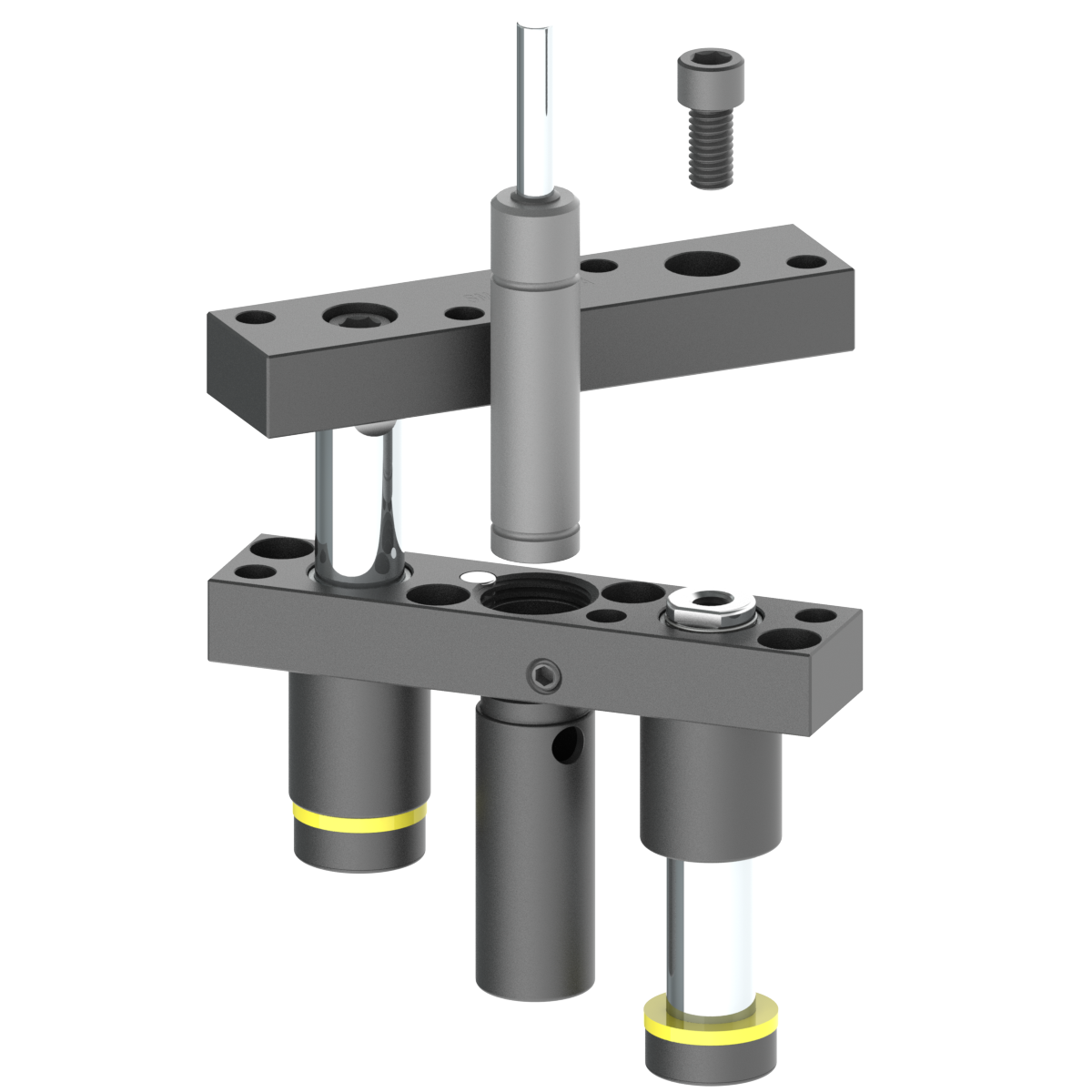

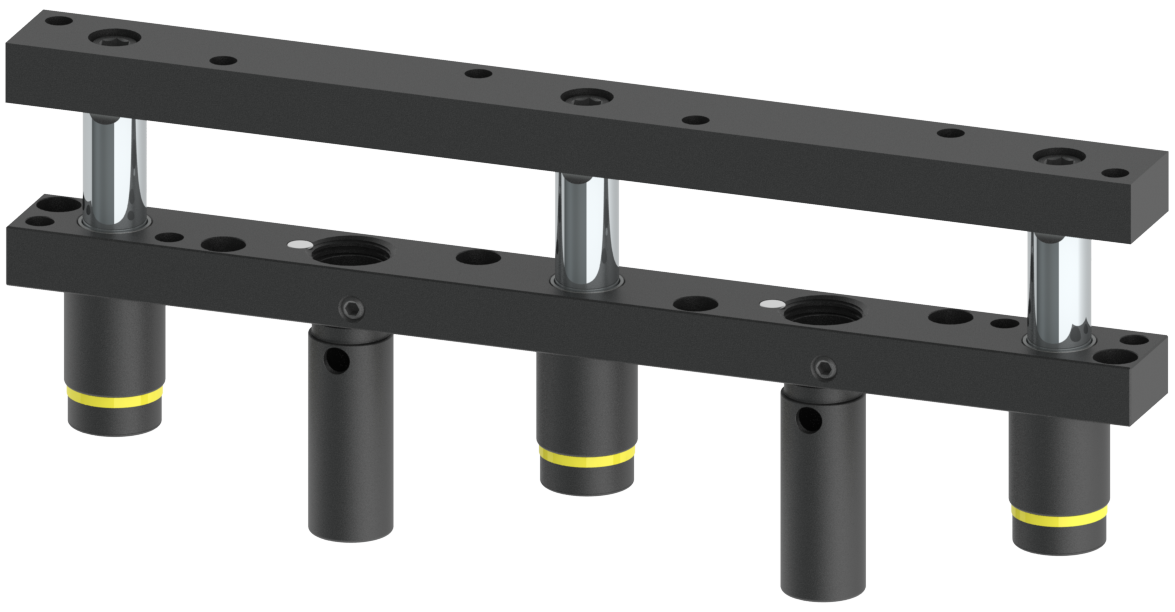

All-in-one, complete assembly
Bolt-on-ready Stock Rails.
Configurable and adjustable
Heights available in 0.125” increments, providing design flexibility.
Travel is configured by height and stroke, which allows for a shorter gas spring and minimum clearance beneath the base.

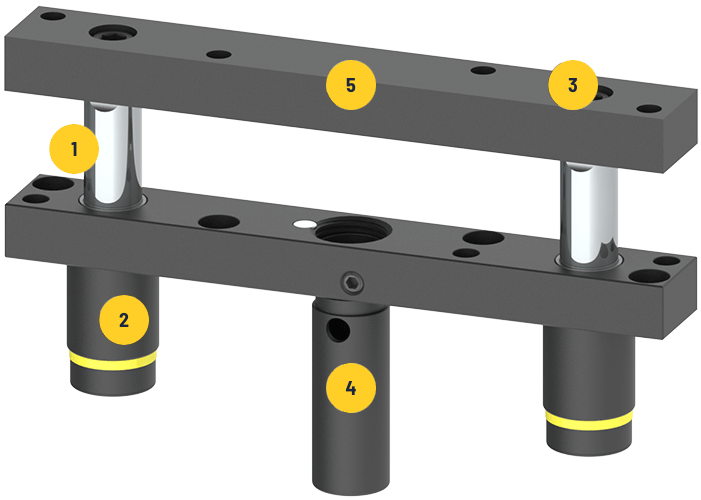

Design features
Highly configurable — heights available in 0.125" increments
Extended bushings for long-life performance
High quality and bolt on ready
Adjustable can — locks and protects drop in gas spring
NTP or Standard top plates available

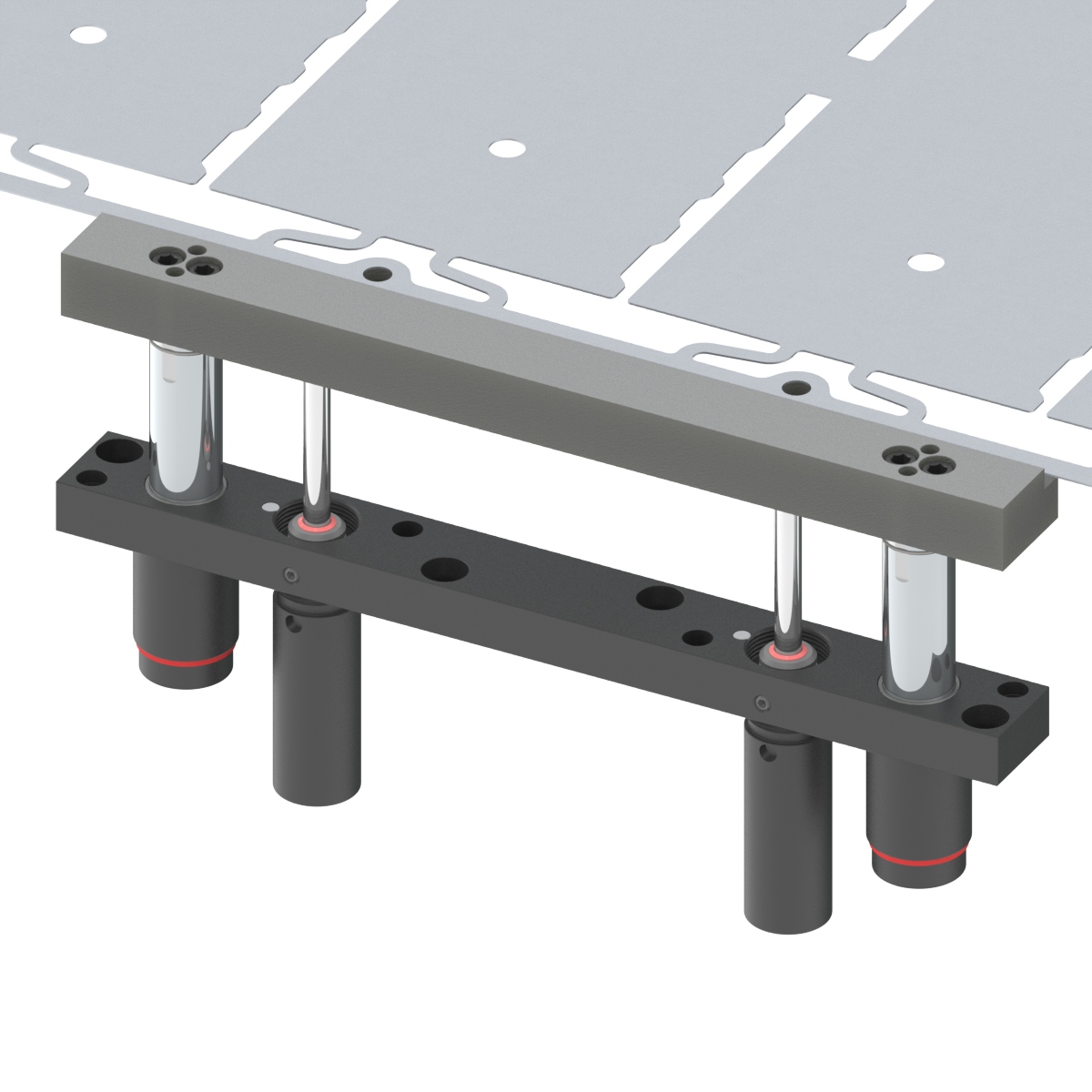

Benefits
High-quality and dependable performance.
Savings in design and die assembly.
Quick change/repair with off-the-shelf products.
Options
Series and guide pin diameter
SM / .75"
SL / 1.25"
More Details
Series
Fastener(s)
Machining
Top Plate Thickness (A Model)
SM / .75"
1 – M10 / 3/8
.75"
SL / 1.25"
2 – M10 / 3/8
1.25"
Base lengths and widths

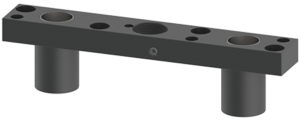

4.0" / 2.0"

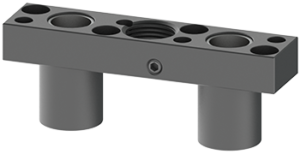

5.38" / 1.25"
7.0" / 1.90"
9.0" / 1.25"
12.0" / 1.90"
14.0" / 1.25"
18.0" / 1.90"
Top plates
A Model

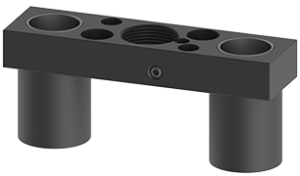

No Top Plate
More Details
Top plate options and info

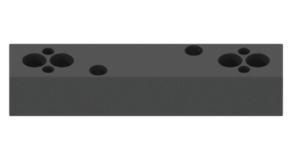

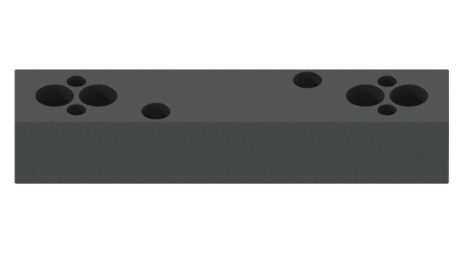

A Model — Standard
The Top Plate is the same width and length as the Base Plate on most models. It includes holes that allow a Hex Wrench to pass through it for loosening the screws in the Base Plate.

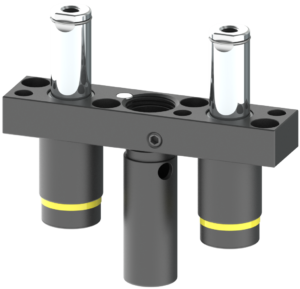

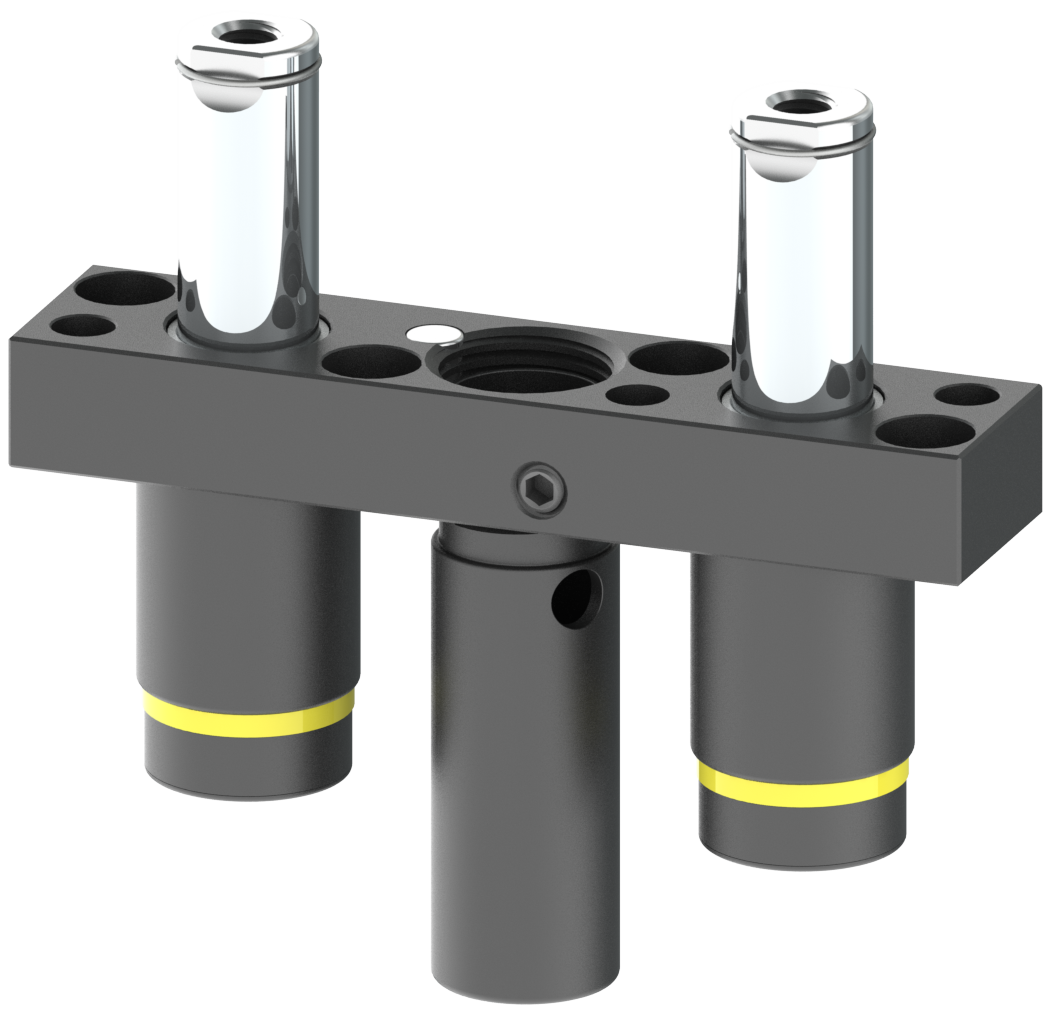

NTP — No Top Plate
The assembly is ordered minus a top plate.
