Rail Lifters



Technical Data

Select Rail Lifter filters

Learn more about Rail Lifters

Additional Filters

Base Width

Bushing Length

Top Plate Style

Gas Spring Diameter

Top Plate Thickness

  • Select a Series / Guide Pin Diameter
  • Select a Base Length

SM / 0.75"

Model SM-75 guide pin

SL / 1.25"

Model SL-125 guide pin

4.0"

Model 40 rail lifter

5.38"

Model 538 Rail Lifter

7.0"

Model 70 rail lifter

9.0"

Model 90 rail lifter

12.0"

Model 120 rail lifter

14.0"

Model 140 Rail Lifter

18.0"

Model 180 rail lifter
Please wait

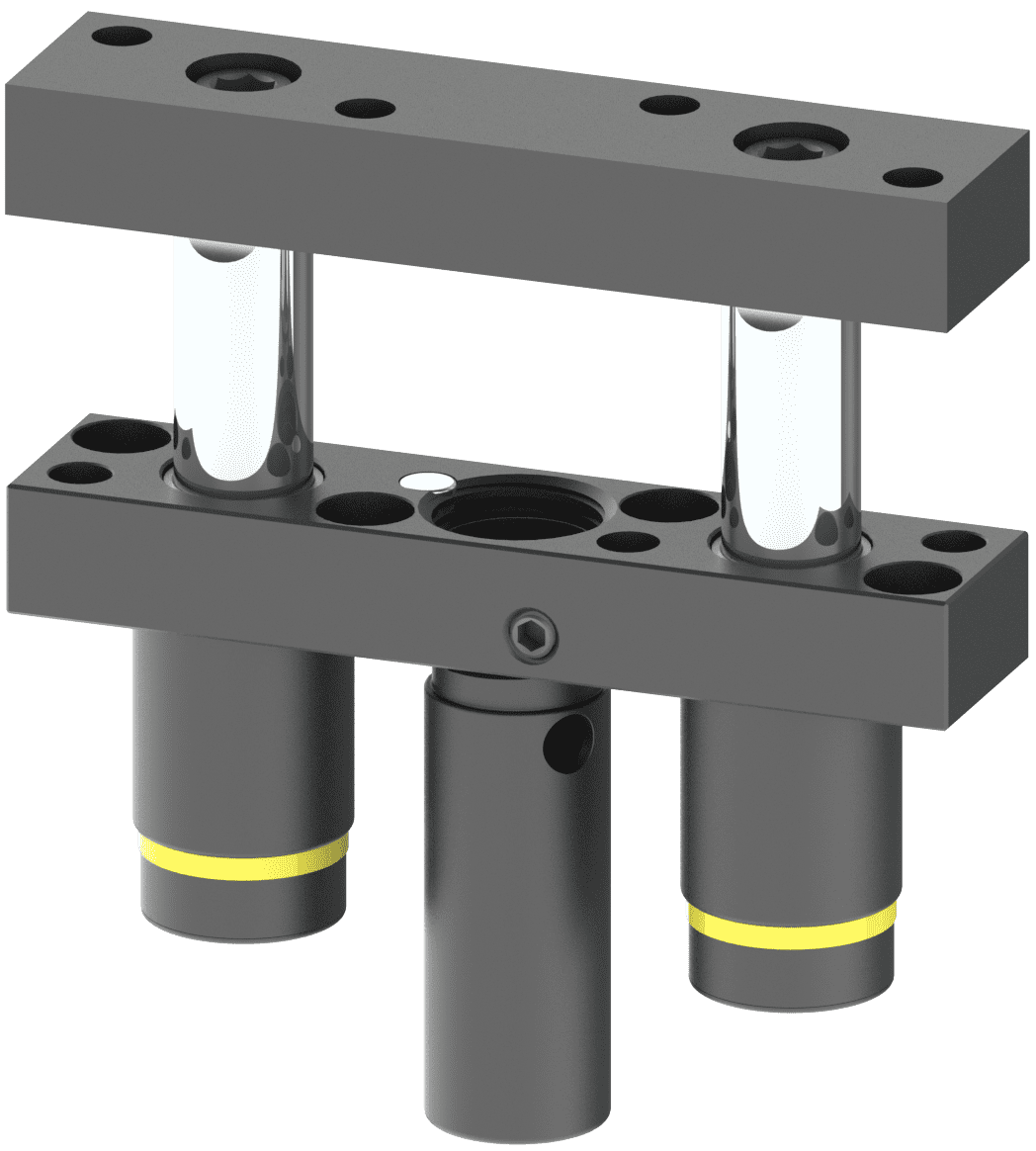

SM12-E/M-XXX-XXX-5.38-1.25-A/NTP

View & Configure Product

Series / Guide Pin Diameter

SM / 0.75"

Base Length

5.38"

Base Width

1.25"

Bushing Length

2.0"

Top Plate Style

A / NTP

Gas Spring Diameter

19mm

Top Plate Thickness

0.75"

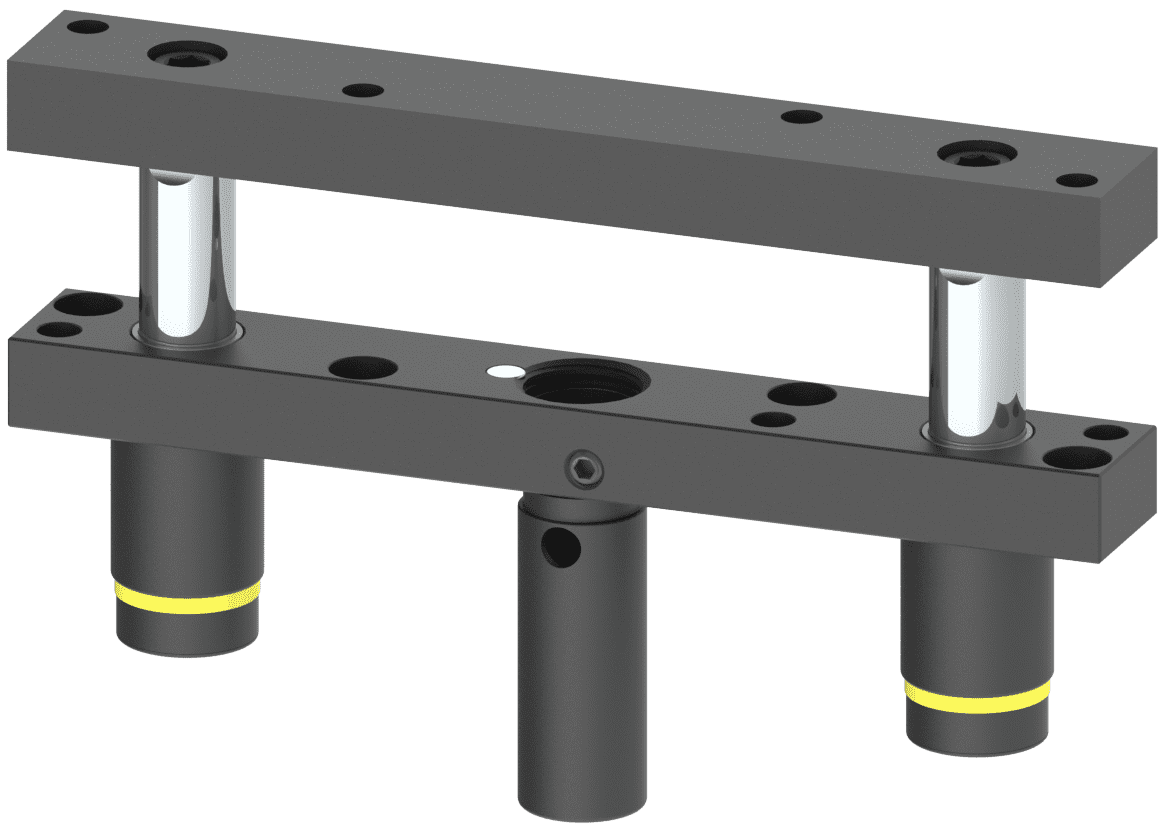

SM12-E/M-XXX-XXX-9-1.25-A/NTP

View & Configure Product

Series / Guide Pin Diameter

SM / 0.75"

Base Length

9.0"

Base Width

1.25"

Bushing Length

2.0"

Top Plate Style

A / NTP

Gas Spring Diameter

19mm

Top Plate Thickness

0.75"

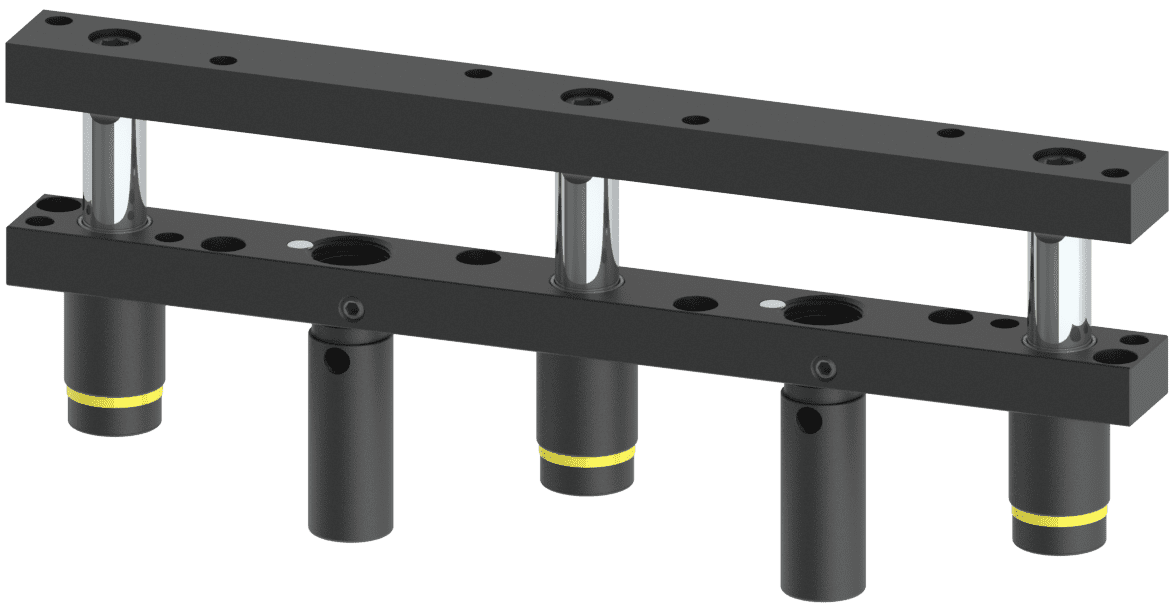

SM12-E/M-XXX-XXX-14-1.25-A/NTP

View & Configure Product

Series / Guide Pin Diameter

SM / 0.75"

Base Length

14.0"

Base Width

1.25"

Bushing Length

2.0"

Top Plate Style

A / NTP

Gas Spring Diameter

19mm

Top Plate Thickness

0.75"

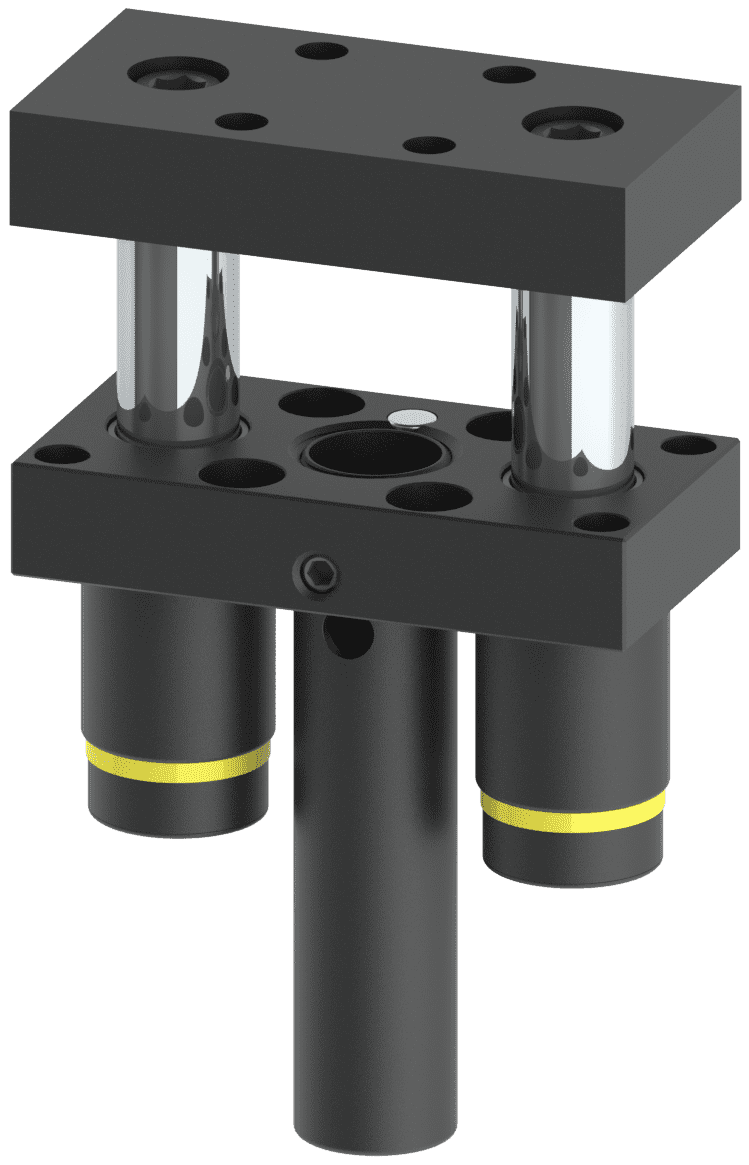

SM20-E/M-XXX-XXX-4-1.25-A/NTP

View & Configure Product

Series / Guide Pin Diameter

SM / 0.75"

Base Length

4.0"

Base Width

2.0"

Bushing Length

2.0"

Top Plate Style

A / NTP

Gas Spring Diameter

19mm

Top Plate Thickness

0.75"

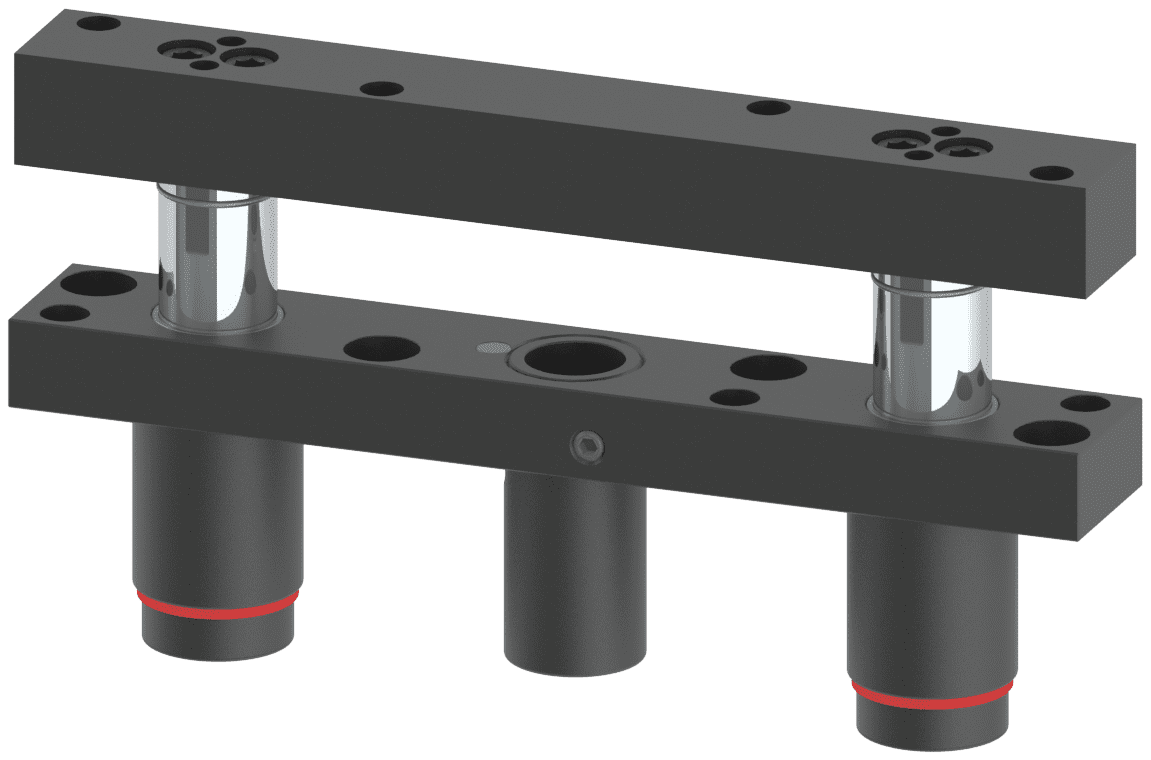

SL19-E/M-XXX-XXX-12-2-A/NTP

View & Configure Product

Series / Guide Pin Diameter

SL / 1.25"

Base Length

12.0"

Base Width

1.90"

Bushing Length

3.0"

Top Plate Style

A / NTP

Gas Spring Diameter

25mm

Top Plate Thickness

1.25"

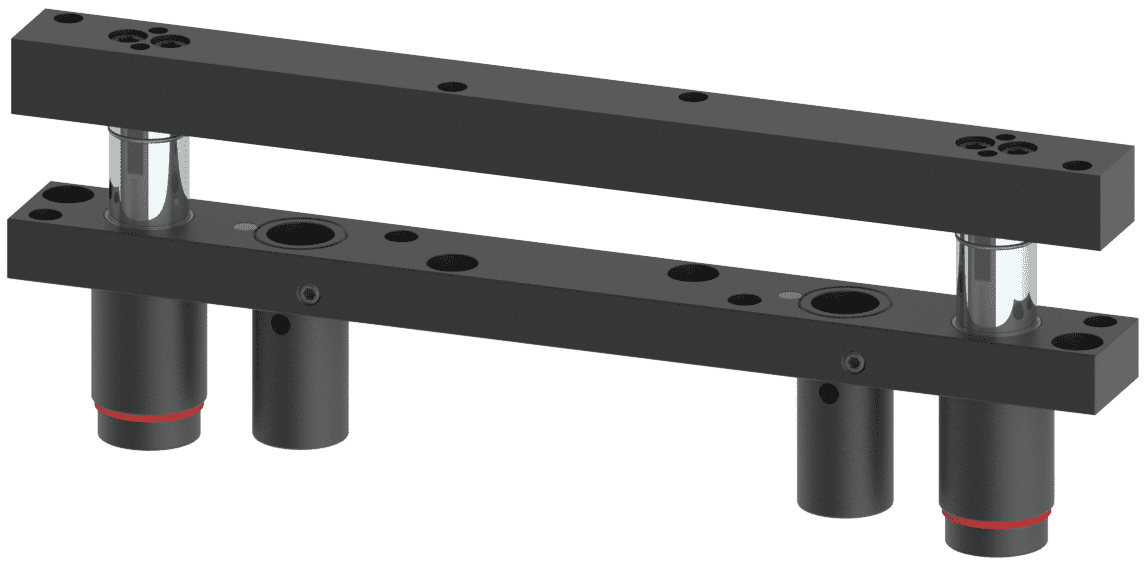

SL19-E/M-XXX-XXX-18-2-A/NTP

View & Configure Product

Series / Guide Pin Diameter

SL / 1.25"

Base Length

18.0"

Base Width

1.90"

Bushing Length

3.0"

Top Plate Style

A / NTP

Gas Spring Diameter

25mm

Top Plate Thickness

1.25"

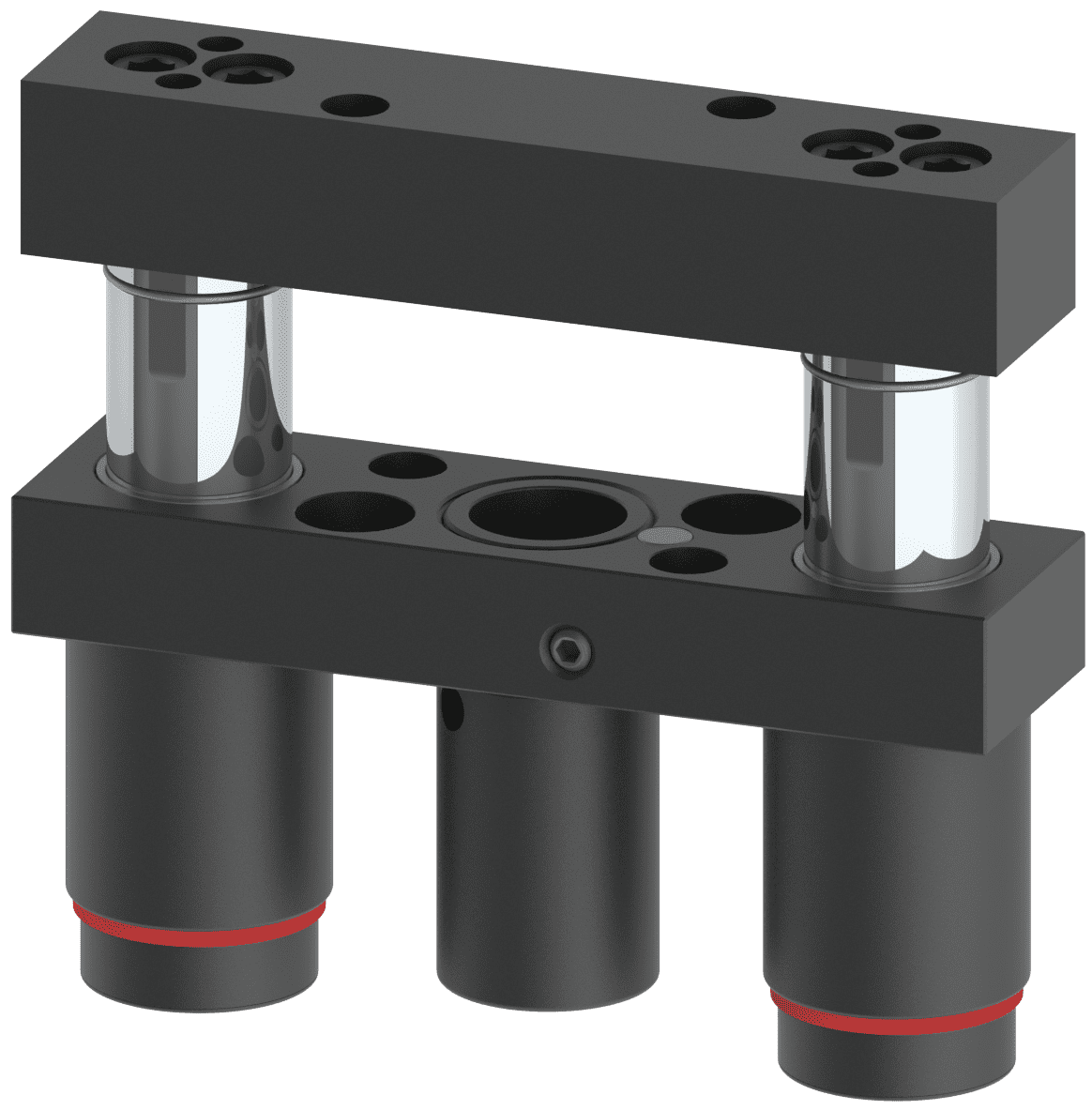

SL19-E/M-XXX-XXX-7-2-A/NTP

View & Configure Product

Series / Guide Pin Diameter

SL / 1.25"

Base Length

7.0"

Base Width

1.90"

Bushing Length

3.0"

Top Plate Style

A / NTP

Gas Spring Diameter

25mm

Top Plate Thickness

1.25"
