Additional Filters

Force Lbs - On Contact / Max Travel

Fastener Size

Download
all CAD files

20mm

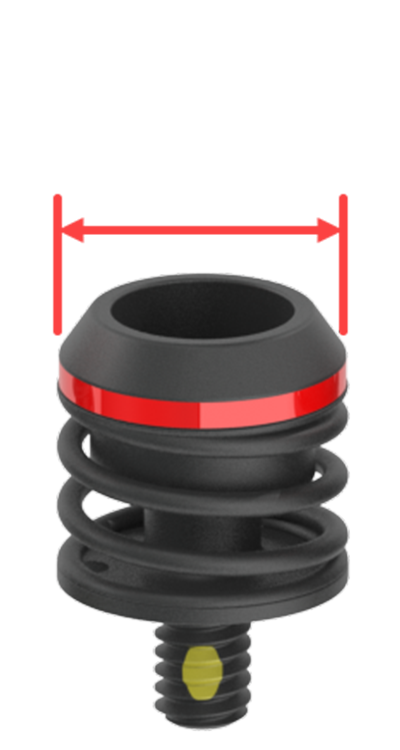

20mm Black ejector with red arrows labeling diameter

22.5mm

22.5mm Black ejector with red arrows labeling diameter

25mm

25mm Black ejector with red arrows labeling diameter

.750"

Ejector showing outside diameter

.875"

.875mm Black ejector with red arrows labeling diameter

1.00"

1.0mm Black ejector with red arrows labeling diameter

3.2mm

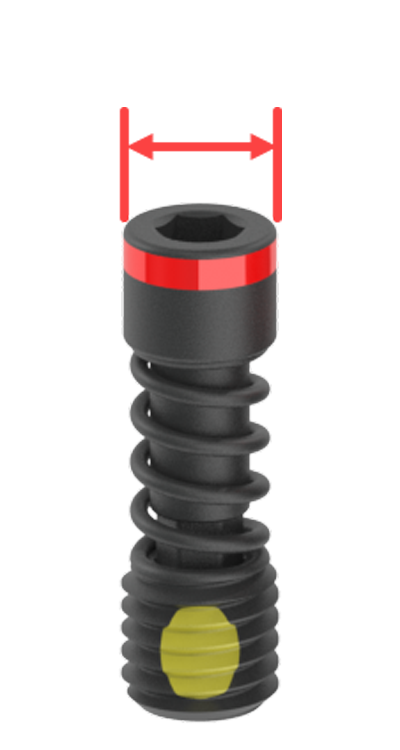

Black Ejector with Red arrow label

4mm

Black Ejector with Red arrow label

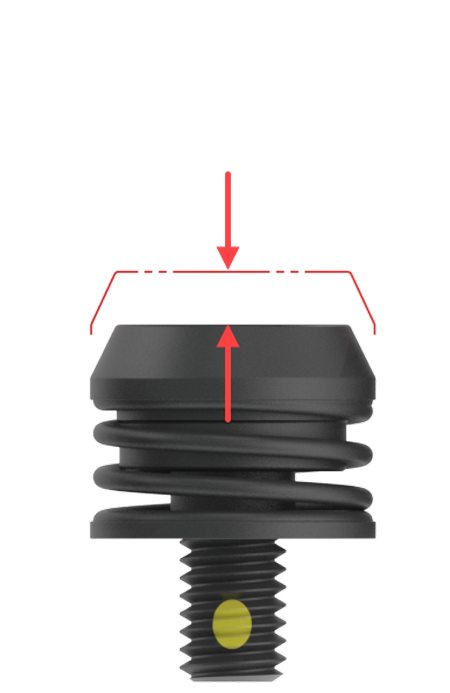

4.8mm

Black Ejector with Red arrow labels

16mm

Black Ejector with Red arrow label

.125"

Black Ejector with Red arrow label

.156"

Black Ejector with Red arrow label

.188"

Black Ejector with Red arrow label

.625"

Black Ejector with Red arrow label
Please wait

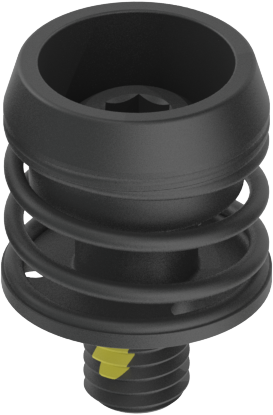

SE-25mm-4.8mm-S-A

View & Configure Product

Outside Diameter

25mm

Max Travel

4.8mm

Force Lbs - On Contact / Max Travel

14 / 20

Fastener Size

M10

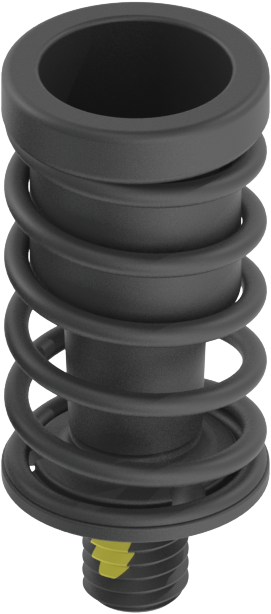

PE-25mm-16mm-S-A

View & Configure Product

Outside Diameter

25mm

Max Travel

16mm

Force Lbs - On Contact / Max Travel

9 / 30

Fastener Size

M10

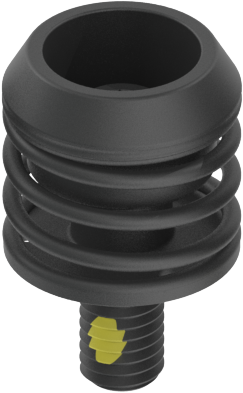

SE-22.5mm-4mm-S-A

View & Configure Product

Outside Diameter

22.5mm

Max Travel

4mm

Force Lbs - On Contact / Max Travel

13 / 19

Fastener Size

M8

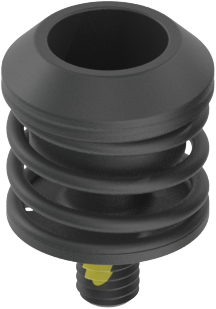

SE-20mm-3.2mm-S-A

View & Configure Product

Outside Diameter

20mm

Max Travel

3.2mm

Force Lbs - On Contact / Max Travel

6 / 12

Fastener Size

M6

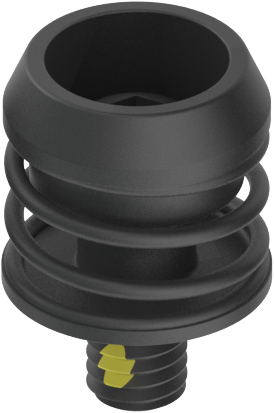

SE-1.00-.188-S-A

View & Configure Product

Outside Diameter

1.00"

Max Travel

.188"

Force Lbs - On Contact / Max Travel

14 / 20

Fastener Size

3/8

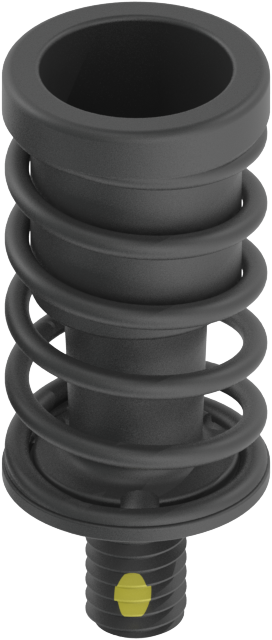

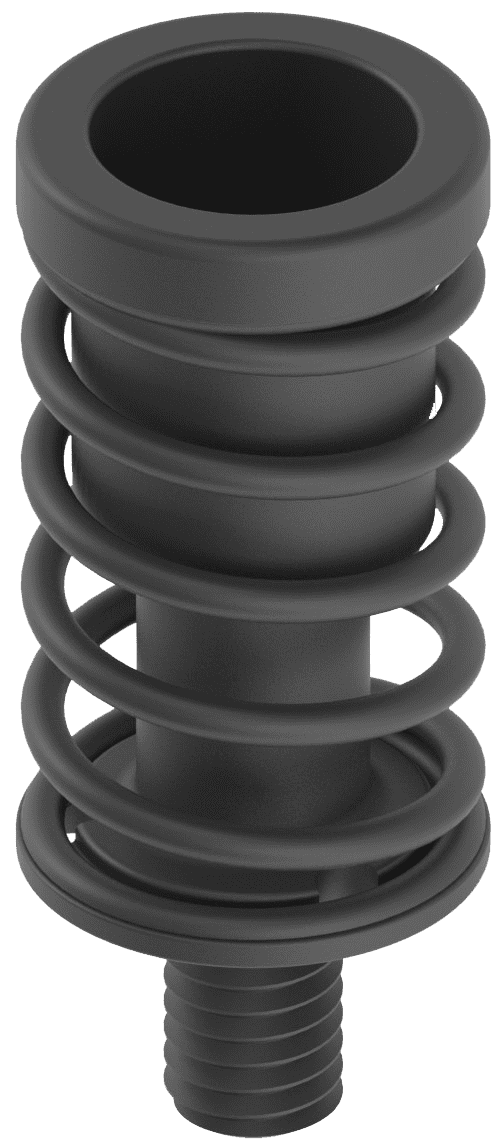

PE-1.00-.625-S-A

View & Configure Product

Outside Diameter

1.00"

Max Travel

.625"

Force Lbs - On Contact / Max Travel

9 / 30

Fastener Size

3/8

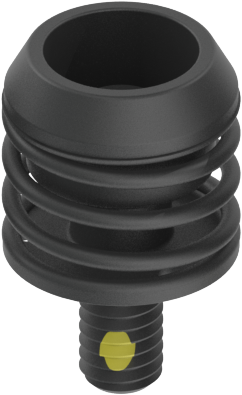

SE-.875-.156-S-A

View & Configure Product

Outside Diameter

.875"

Max Travel

.156"

Force Lbs - On Contact / Max Travel

13 / 19

Fastener Size

5/16

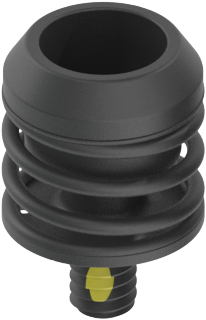

SE-.750-.125-S-A

View & Configure Product

Outside Diameter

.750"

Max Travel

.125"

Force Lbs - On Contact / Max Travel

6 / 12

Fastener Size

1/4
