Application

Insert Mounted Pilots

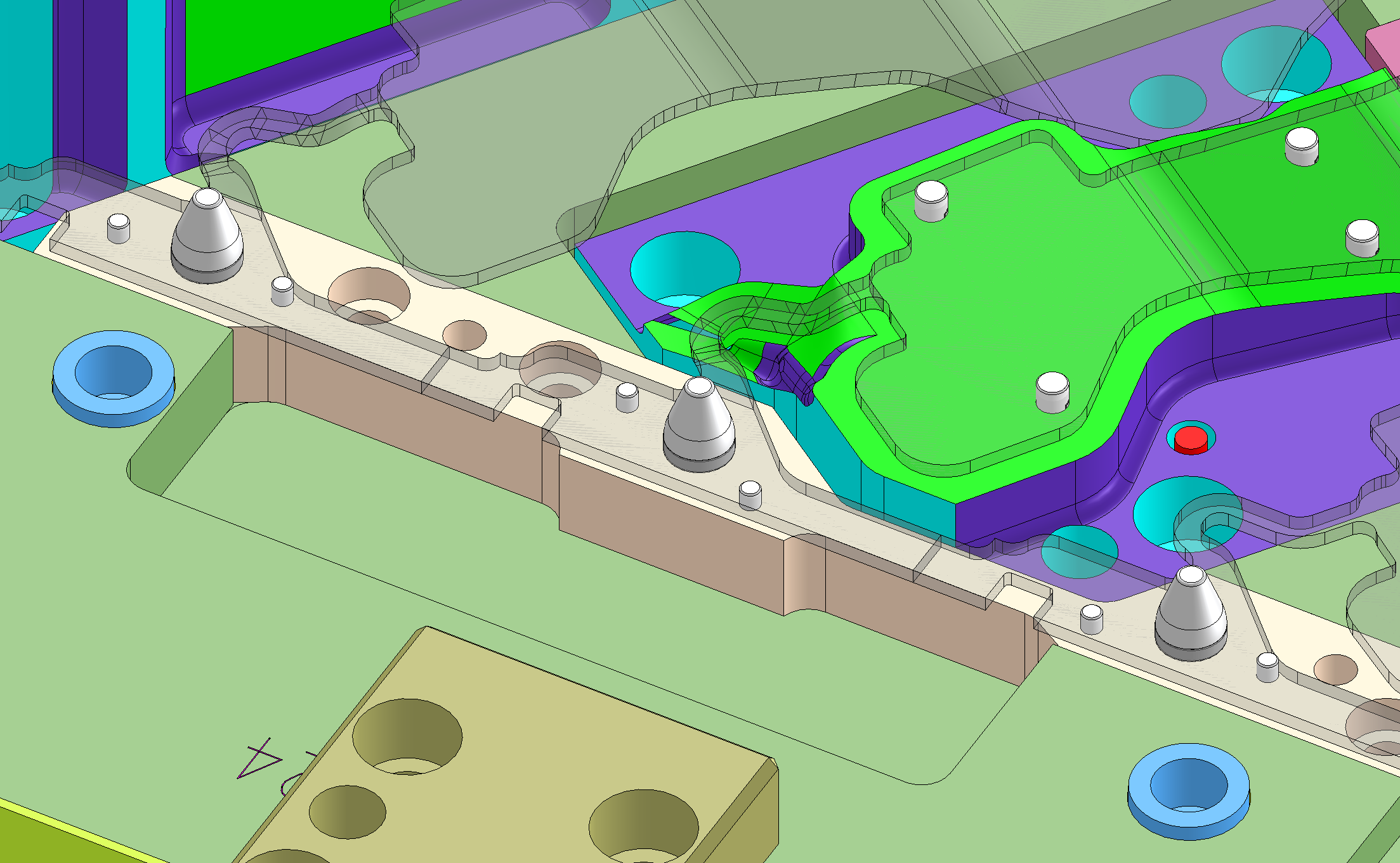

Used to locate metal stock in metal stamping dies.

Innovation

Similar but Superior

Our thorough evaluation of straight pilots in the market identified three areas of improvement; faster machining, more robust head thicknesses, and a simpler part number / call out structure. Our Headed Pilots deliver on these improvements and more while being off the shelf and available to ship same day.

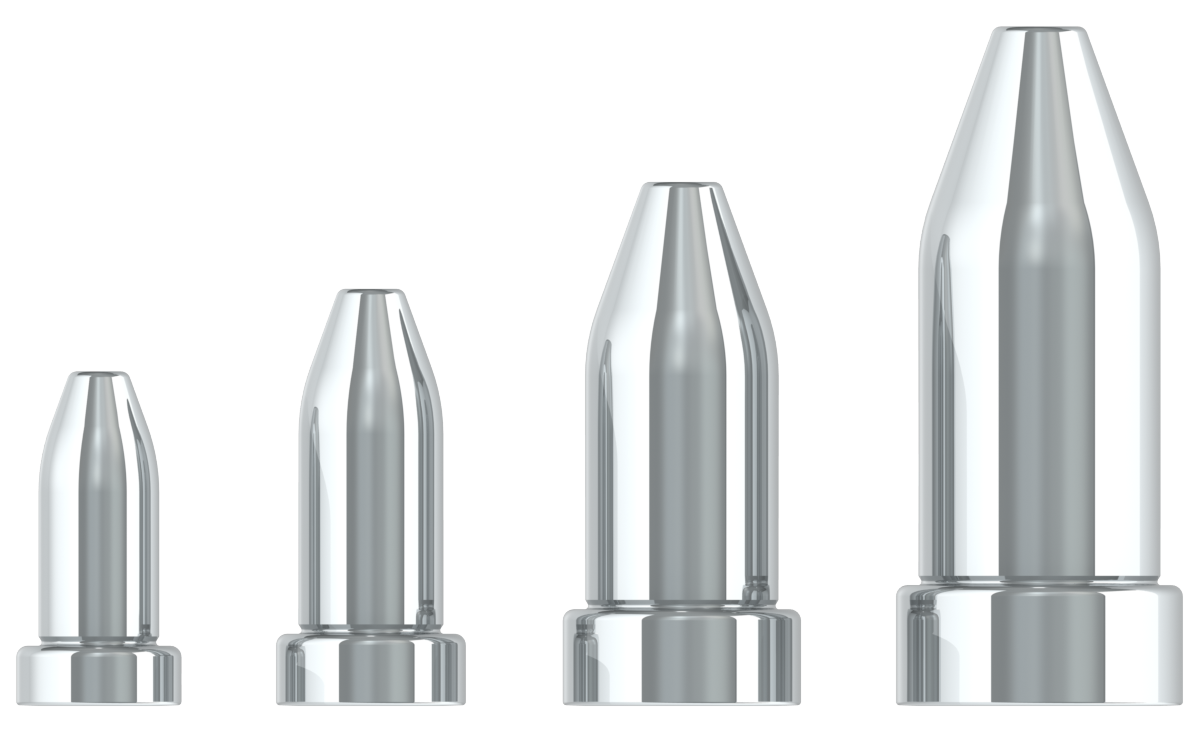

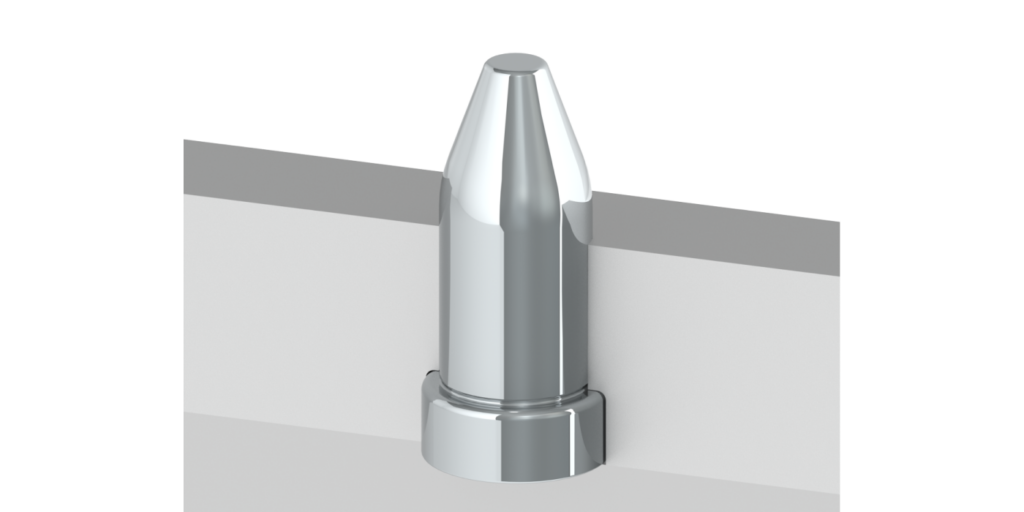

Headed Pilot Design Features

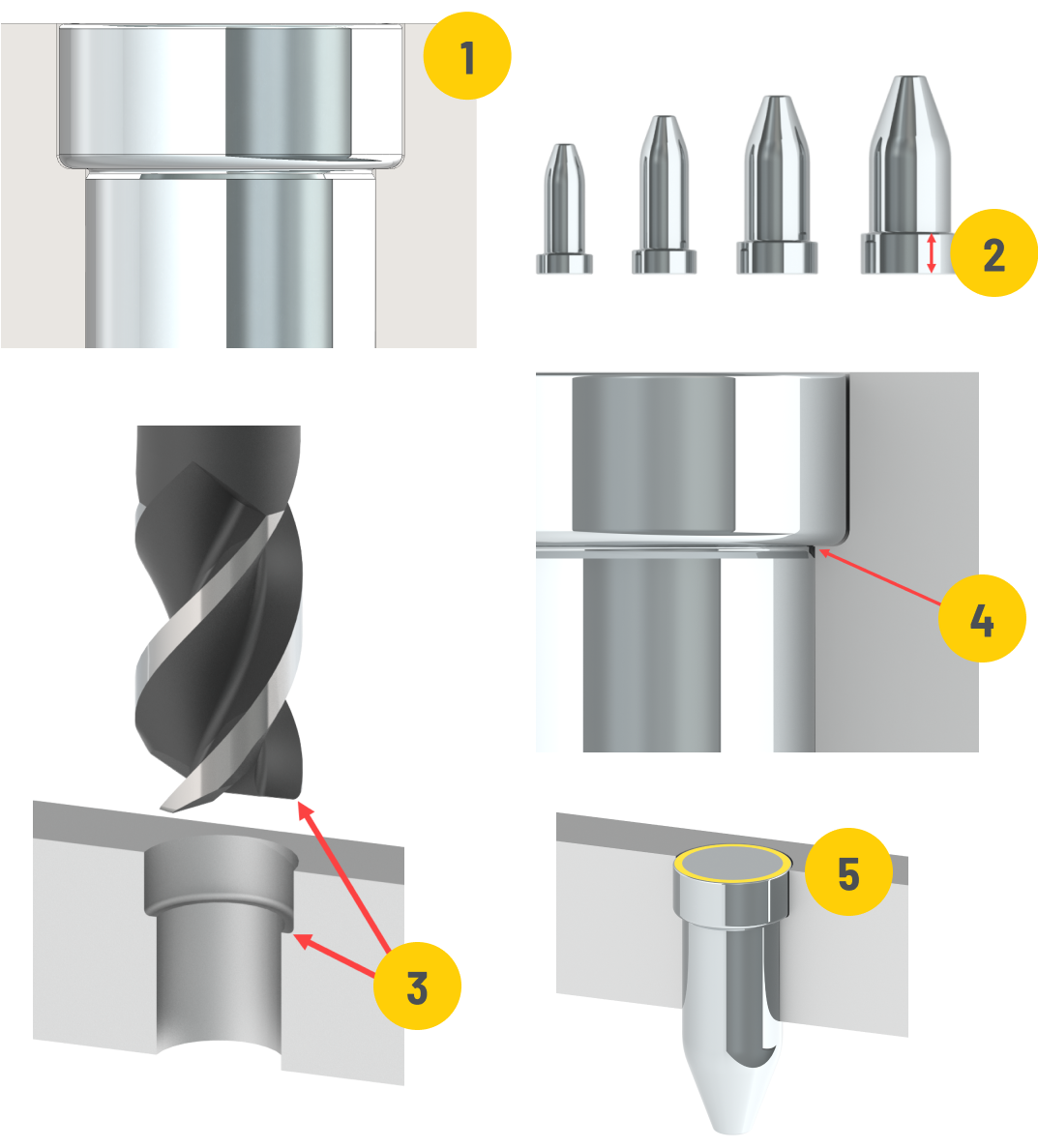

  1. No head grinding required, our head thicknesses are ±.0005″ (5x tighter than other pilots).
  2. Robust head thicknesses, increase in size as diameter increases.
  3. Head radius allows for common tooling to machine the pocket, no sharp corners or making the pocket larger than necessary.
  4. The inside radius is cleared which eliminates the need to chamfer the hole in the bottom of the pocket.
  5. Relief angle added to transfer any mis-hit forces to the pad reducing the shock on the head of the pilot.

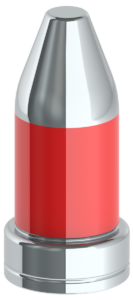

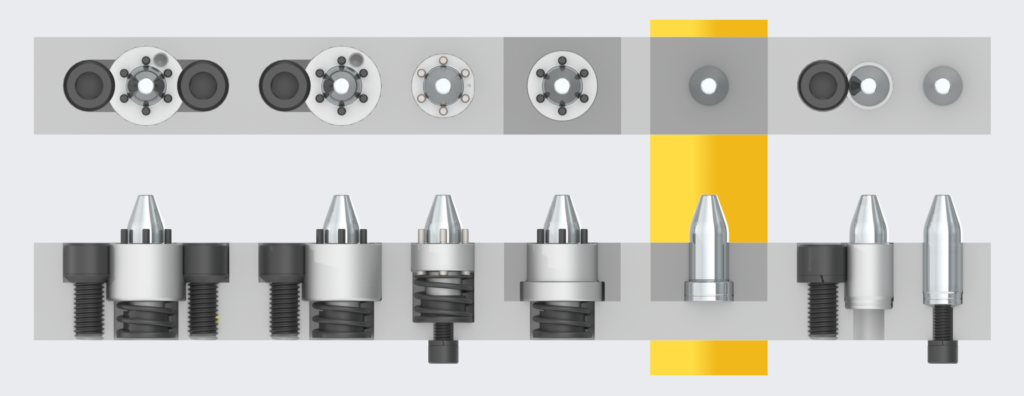

Space Comparison

See all technical data

Options

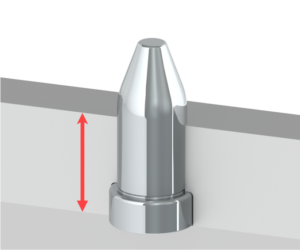

Window Thickness Diagram

Window Thickness

Body Diameter

Body Diameter

.500″ .625″ .750″ 1.000″
.3125″ in stock in stock in stock
.3750″ in stock in stock in stock in stock
.5000″ in stock in stock in stock
.6250″ in stock in stock
8mm .500 inches by .3125 inches in stock in stock
10mm .500 inches by .3125 inches in stock in stock in stock
13mm in stock in stock in stock
16mm in stock in stock
See all technical data

Pricing examples

$23.25

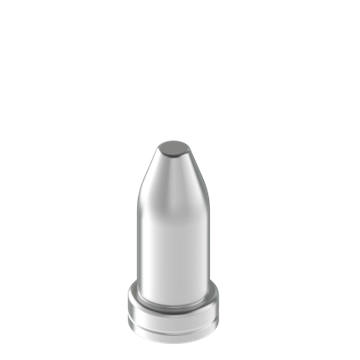

P-8mm / .3125"
.625" Insert Thickness

P-8mm / .3125"


.625" Insert Thickness

$25.00

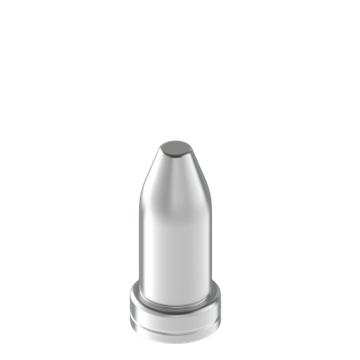

P-10mm / .375"
.625" Insert Thickness

P-10mm / .375"


.625" Insert Thickness

$27.00

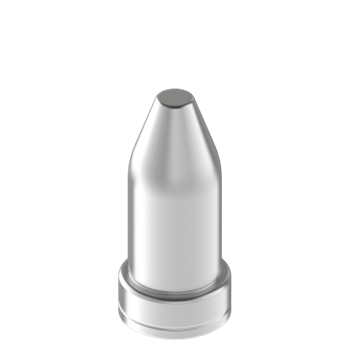

P-13mm / .500"
.750" Insert Thickness

P-13mm / .500"


.750" Insert Thickness

$30.50

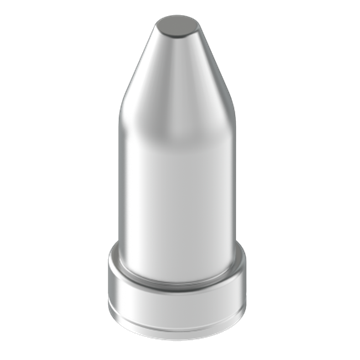

P-16mm / .625"
1.000" Insert Thickness

P-16mm / .625"


1.000" Insert Thickness

Configure Product

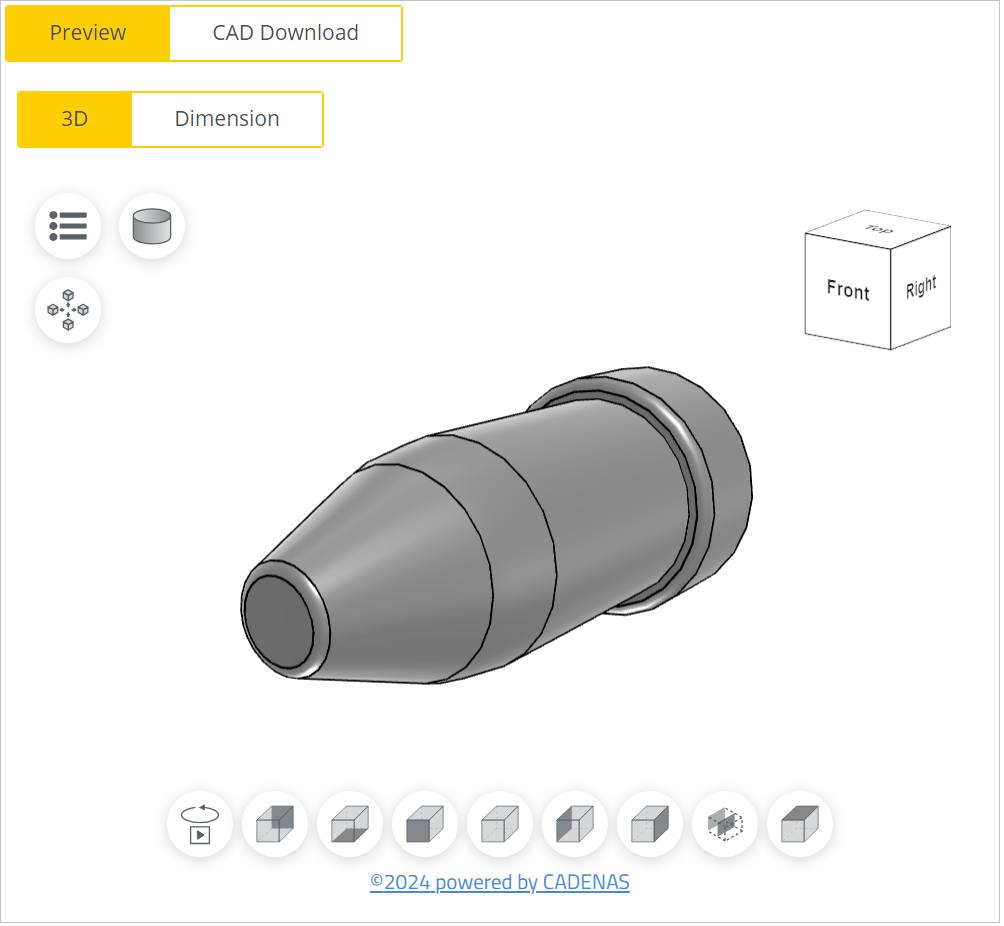

Preview and download the CAD file you need with our product configuration tool.

See product configuration
