Fastener Mounted and Back Tap Pilots



Technical Data

Select Pilot filters

Learn more about Back Tap and Fastener Mounted Pilots
  • Select a Pilot Diameter
  • Select a Pilot Fastener Location
Clear All Filters

10mm

10mm

13mm

13mm

16mm

16mm

.375"

.375"

.500"

.500"

.625"

.625"

Working Side

Working Side

Back Side

Back Side

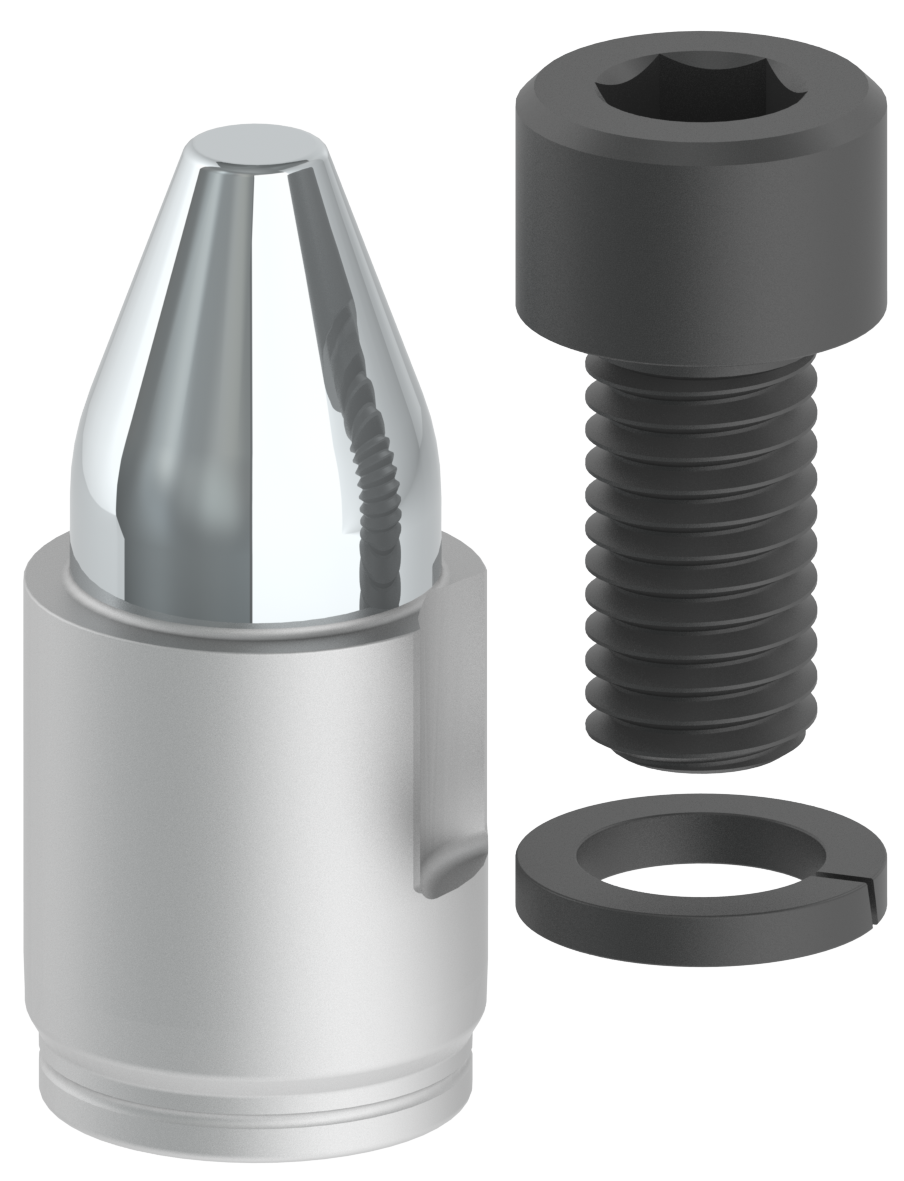

P-16mm-3.2mm-F

View & Configure Product
P-16mm-3.2mm-F

Pilot Diameter

16mm

Max Stock

3.2mm

Locating Land

3.2mm

Retention Method

F

Fastener Size

M10-1.5

Fastener Location

Working Side

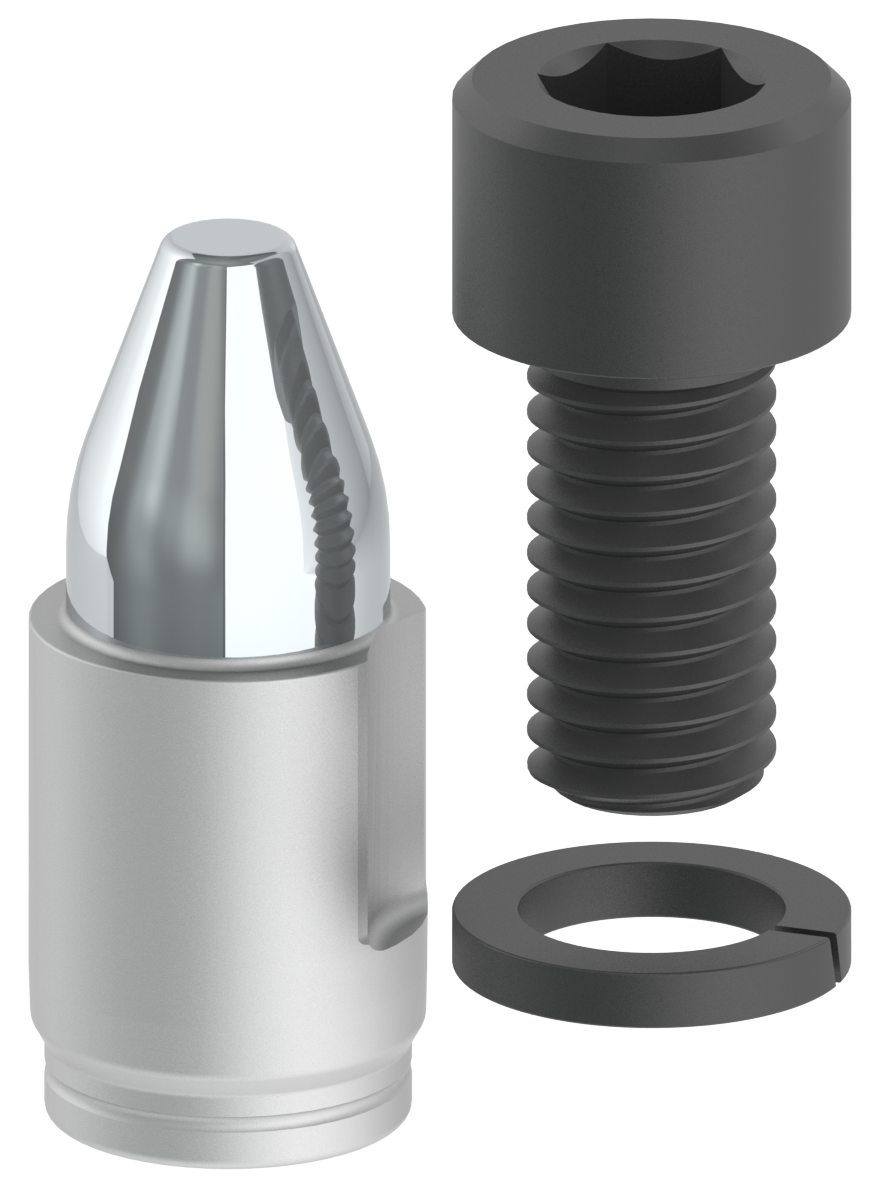

P-13mm-2.5mm-F

View & Configure Product
P-13mm-2.5mm-F

Pilot Diameter

13mm

Max Stock

2.5mm

Locating Land

2.5mm

Retention Method

F

Fastener Size

M10-1.5

Fastener Location

Working Side

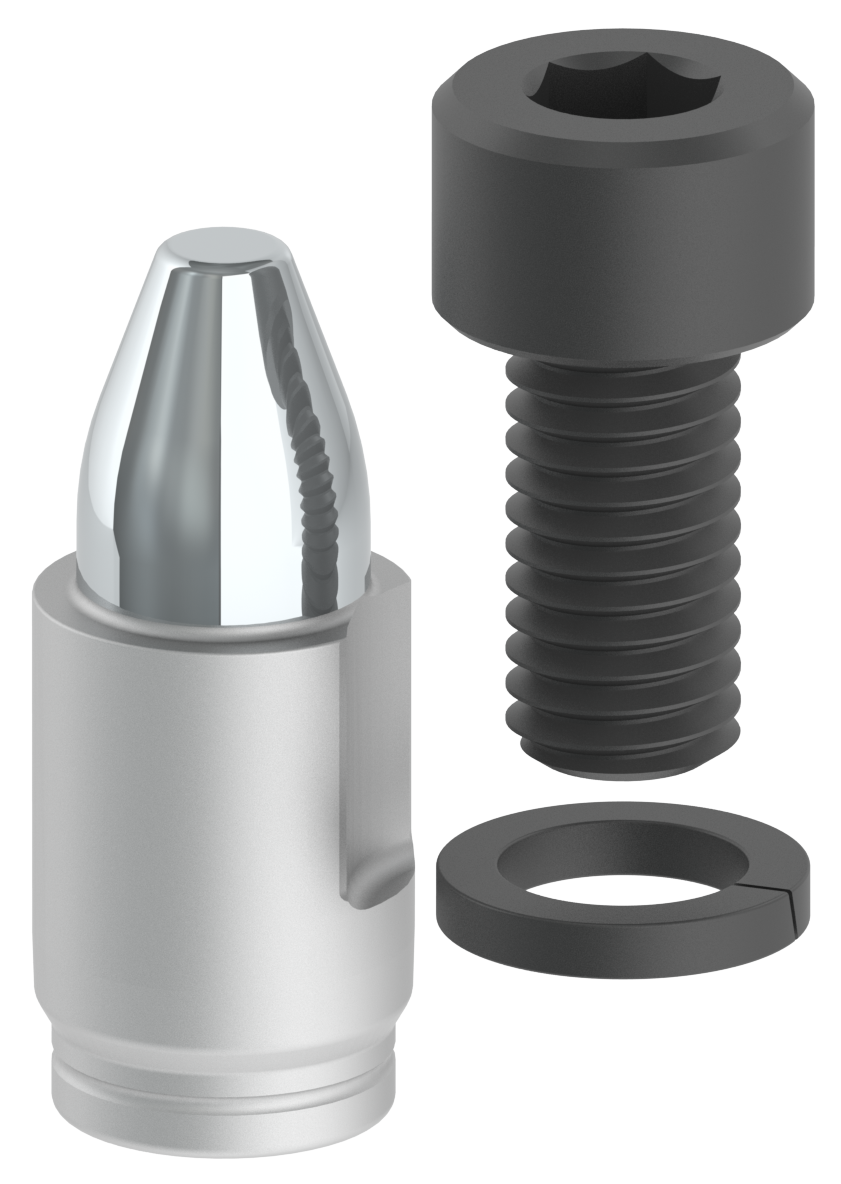

P-10mm-1.9mm-F

View & Configure Product
P-10mm-1.9mm-F

Pilot Diameter

10mm

Max Stock

1.9mm

Locating Land

1.9mm

Retention Method

F

Fastener Size

M8-1.25

Fastener Location

Working Side

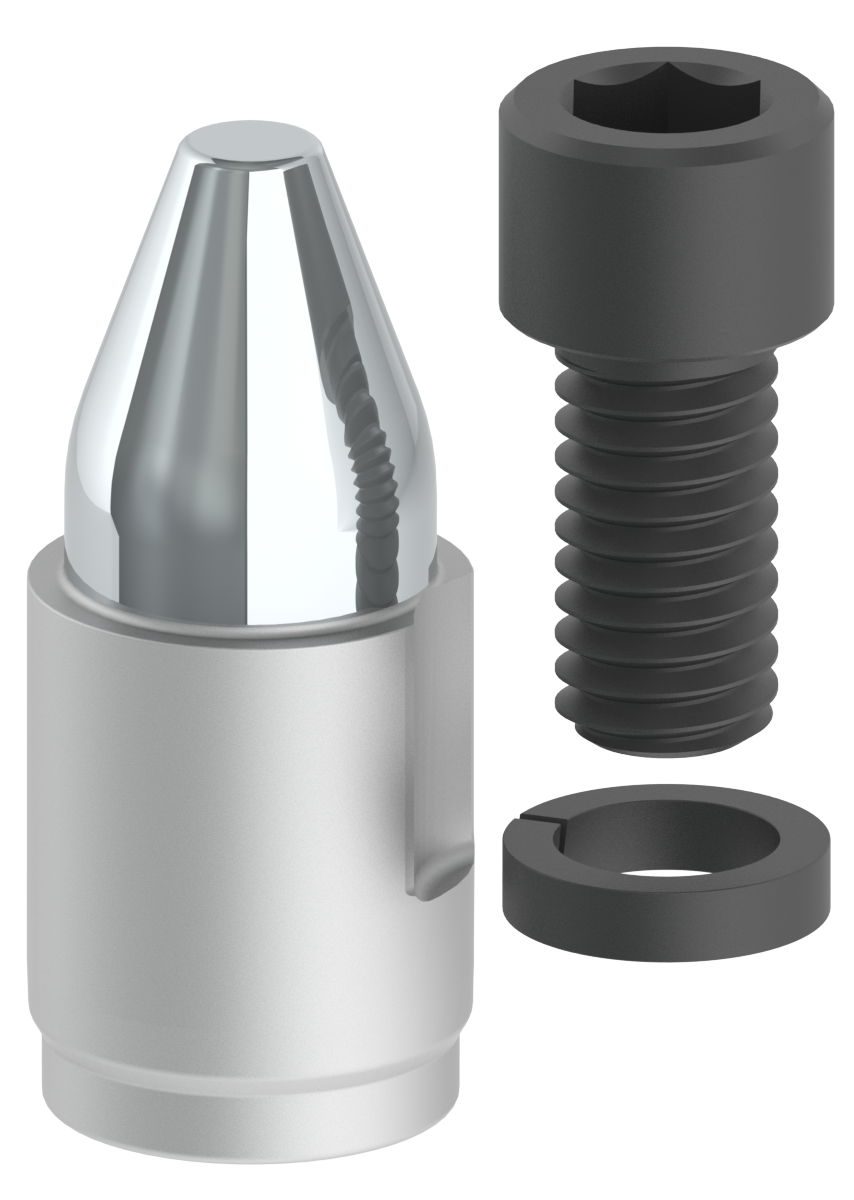

P-.625-.125-F

View & Configure Product
P-.625-.125-F

Pilot Diameter

.625"

Max Stock

.125"

Locating Land

.125"

Retention Method

F

Fastener Size

3/8-16

Fastener Location

Working Side

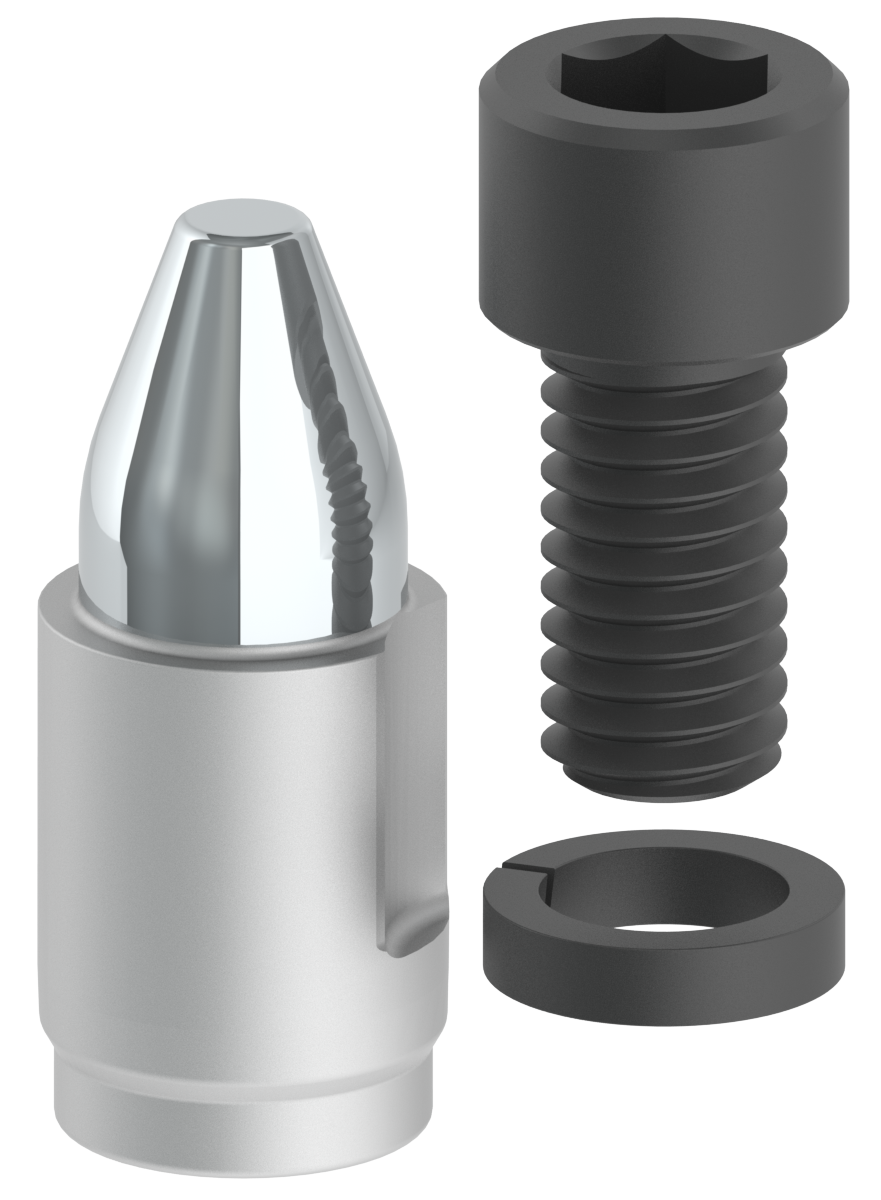

P-.500-.100-F

View & Configure Product
P-.500-.100-F

Pilot Diameter

.500"

Max Stock

.100"

Locating Land

.100"

Retention Method

F

Fastener Size

3/8-16

Fastener Location

Working Side

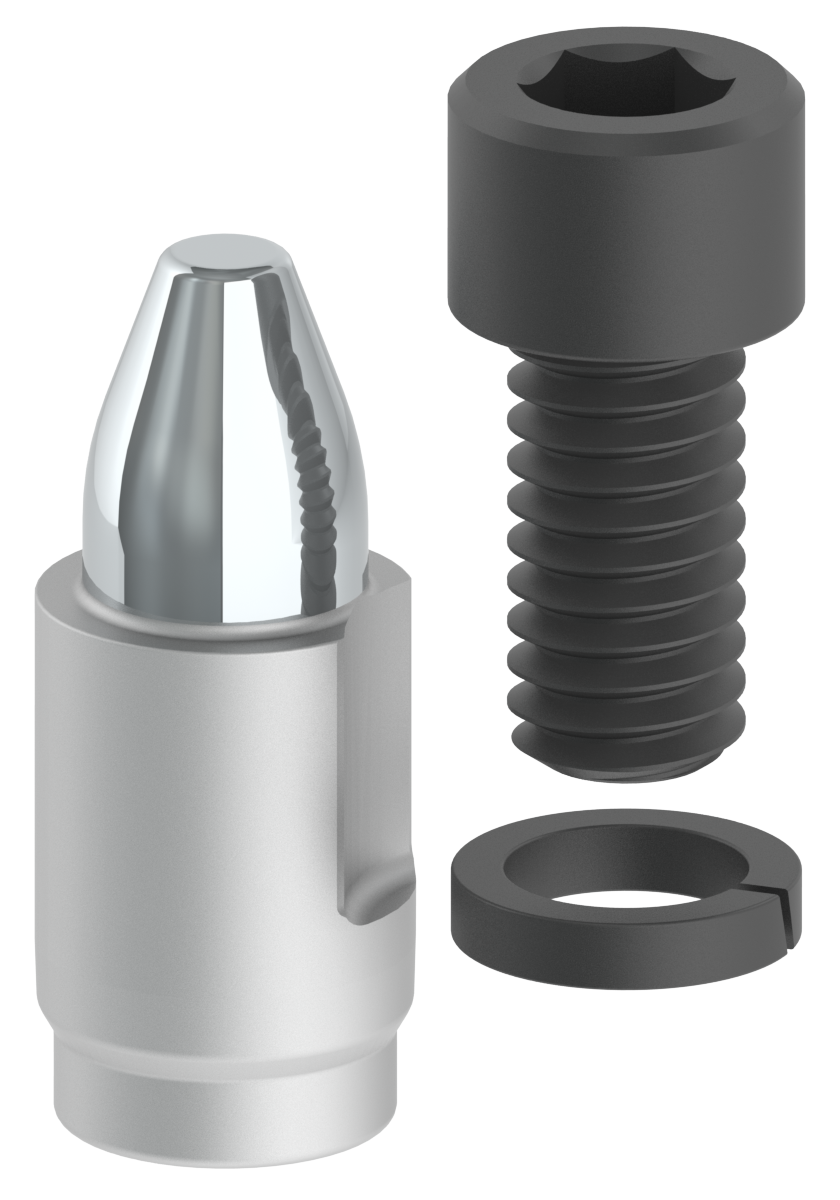

P-.375-.075-F

View & Configure Product
P-.375-.075-F

Pilot Diameter

.375"

Max Stock

.075"

Locating Land

.075"

Retention Method

F

Fastener Size

5/16-18

Fastener Location

Working Side

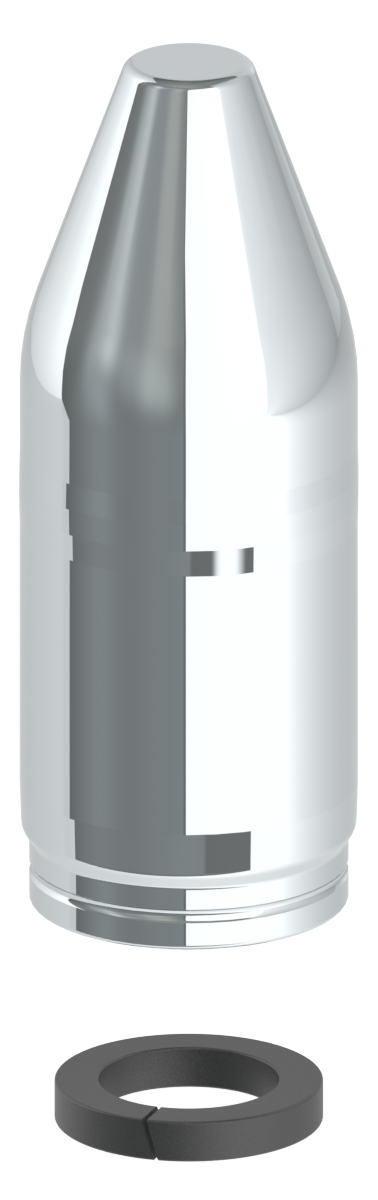

P-16mm-3.2mm-BT

View & Configure Product
P-16mm-3.2mm-BT

Pilot Diameter

16mm

Max Stock

3.2mm

Locating Land

3.2mm

Retention Method

BT

Fastener Size

M8-1.25

Fastener Location

Back Side

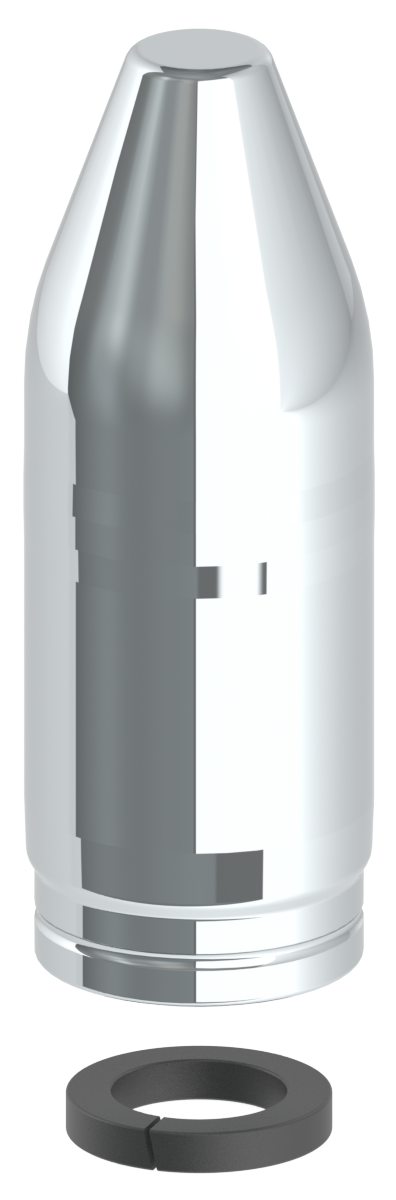

P-13mm-2.5mm-BT

View & Configure Product
P-13mm-2.5mm-BT

Pilot Diameter

13mm

Max Stock

2.5mm

Locating Land

2.5mm

Retention Method

BT

Fastener Size

M6-1.0

Fastener Location

Back Side

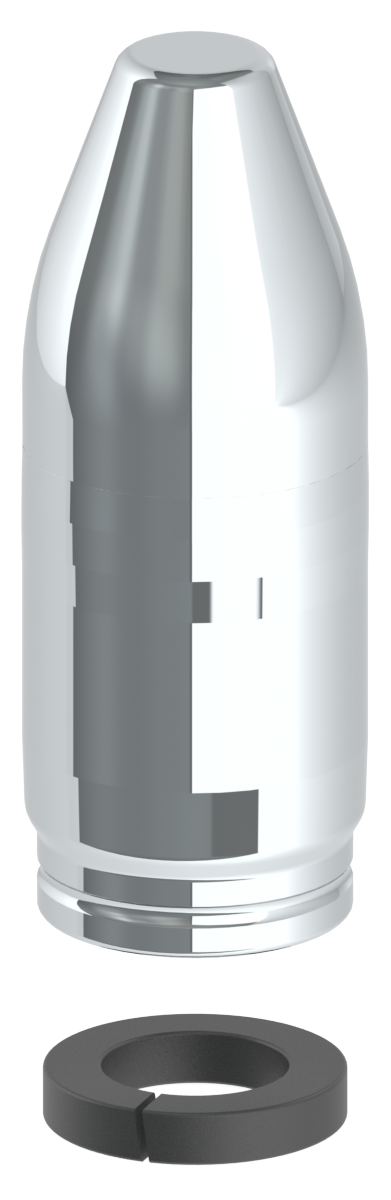

P-10mm-1.9mm-BT

View & Configure Product
P-10mm-1.9mm-BT

Pilot Diameter

10mm

Max Stock

1.9mm

Locating Land

1.9mm

Retention Method

BT

Fastener Size

M5-0.8

Fastener Location

Back Side

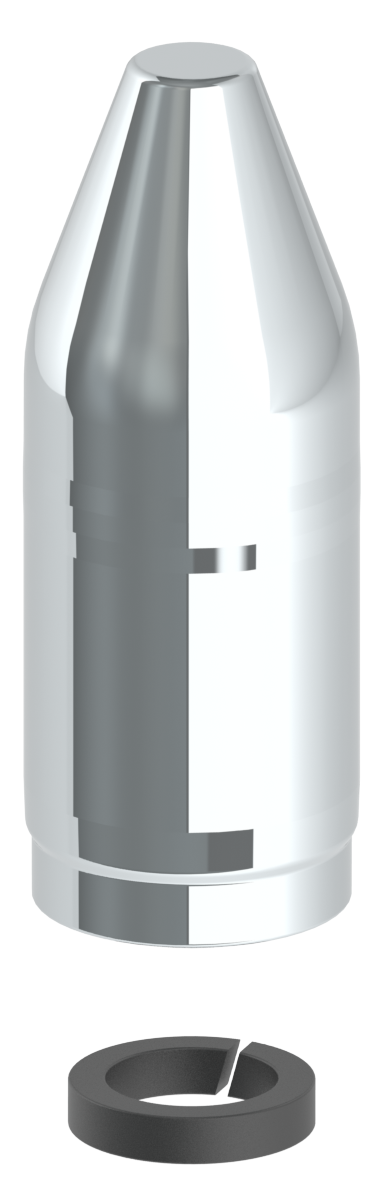

P-.625-.125-BT

View & Configure Product
P-.625-.125-BT

Pilot Diameter

.625"

Max Stock

.125"

Locating Land

.125"

Retention Method

BT

Fastener Size

5/16-18

Fastener Location

Back Side

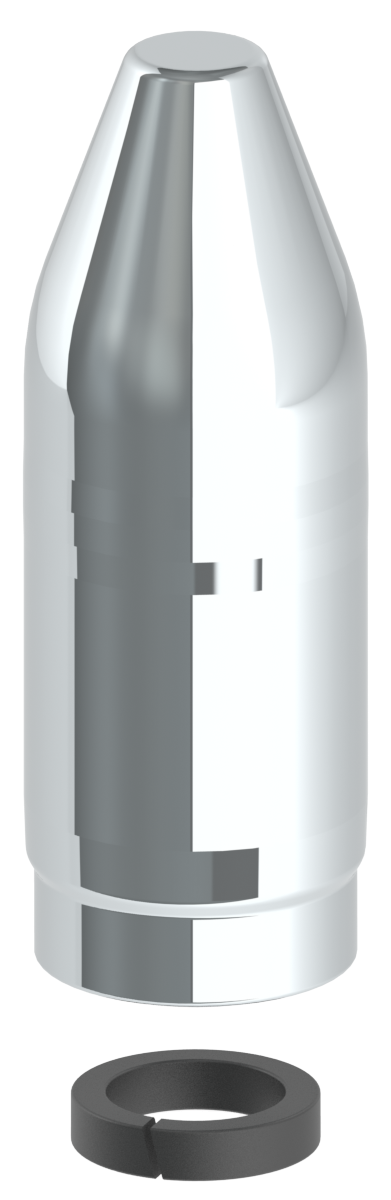

P-.500-.100-BT

View & Configure Product
P-.500-.100-BT

Pilot Diameter

.500"

Max Stock

.100"

Locating Land

.100"

Retention Method

BT

Fastener Size

1/4-20

Fastener Location

Back Side

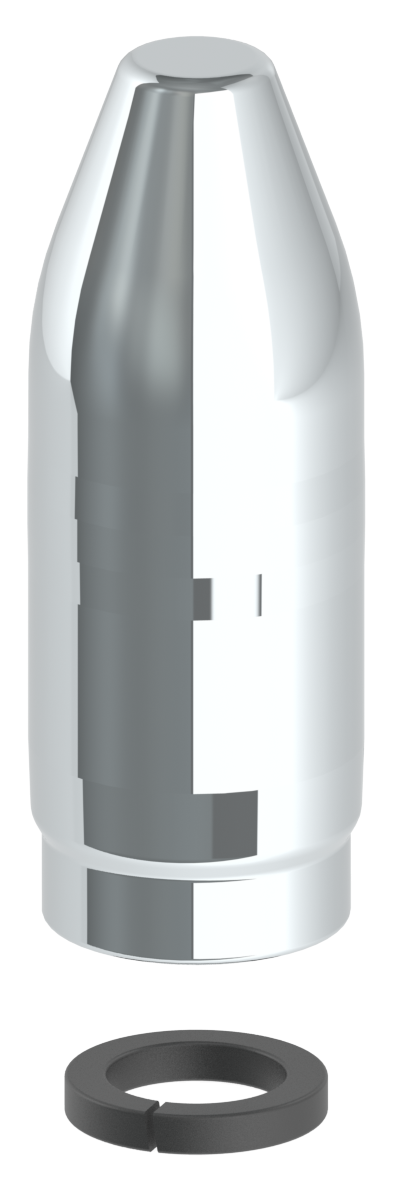

P-.375-.075-BT

View & Configure Product
P-.375-.075-BT

Pilot Diameter

.375"

Max Stock

.075"

Locating Land

.075"

Retention Method

BT

Fastener Size

#10-24

Fastener Location

Back Side
