Guided Keepers
Technical Data
Select Guide Pin Style or Base Style/Bushing Length
Learn more about Guided Keepers
Unsure what you’re looking for?
View our recommendations PDF for guided keeper best practices
View PDF- Select a Guide Pin Series/Diameter
- Select a Base Style / Bushing Length
GK75 / 0.75"
GK105 / 1.0"
GK122 / 1.25"
GK152 / 1.50"
GK180 / 1.75"
GK205 / 2.00"
GK120 / 1.25"
N2-1
N3-1
N3-2
N4-1
N4-2
N5-2
P (low clearance)

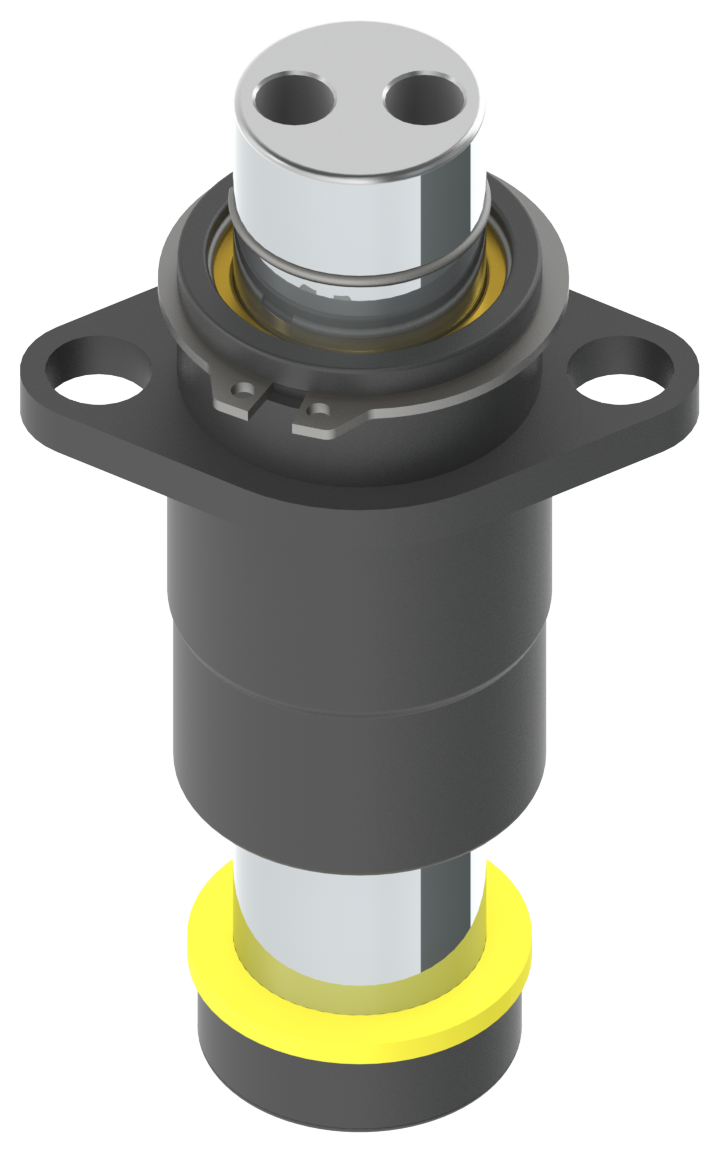

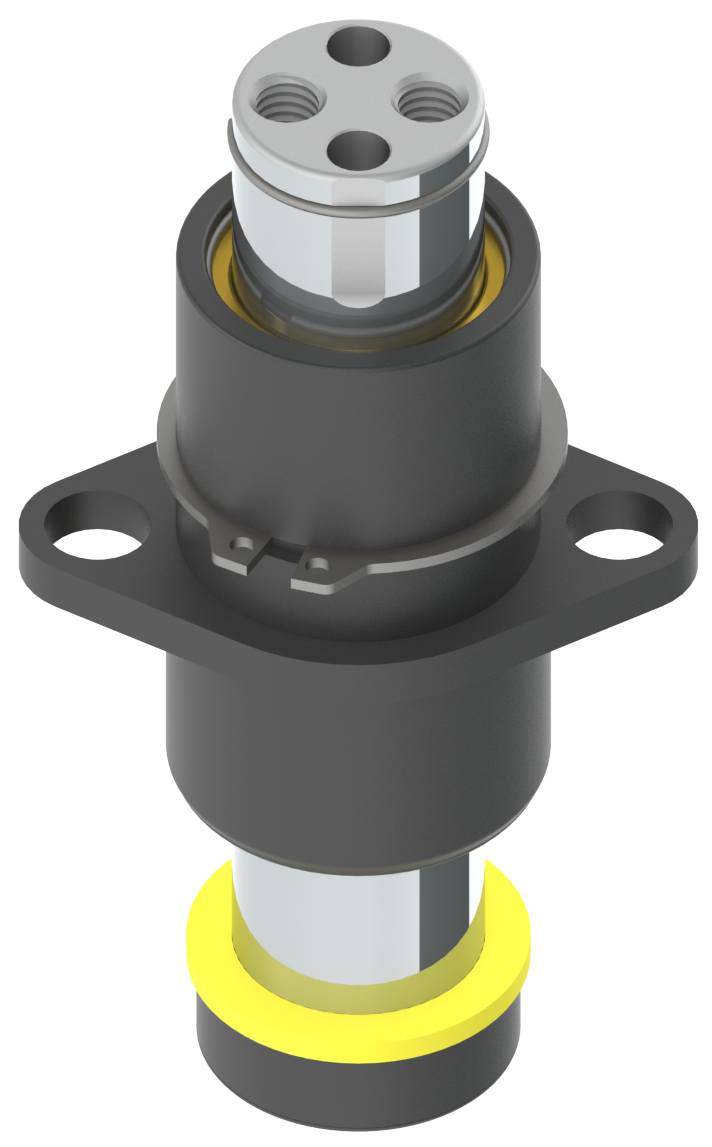

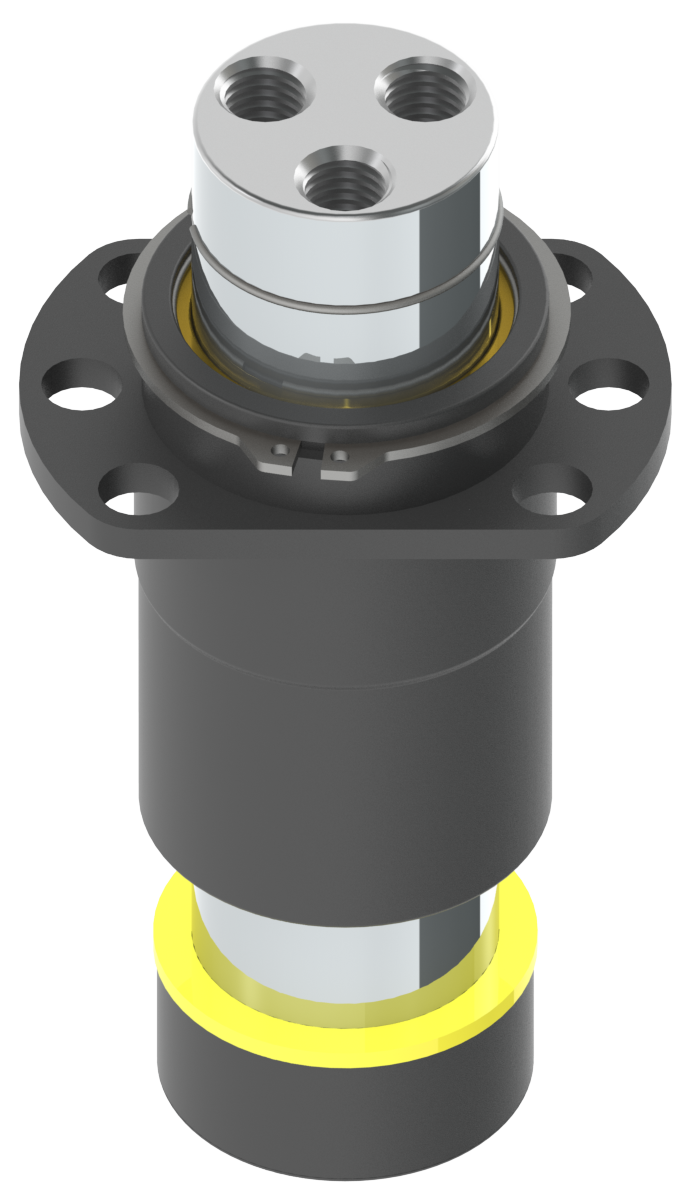

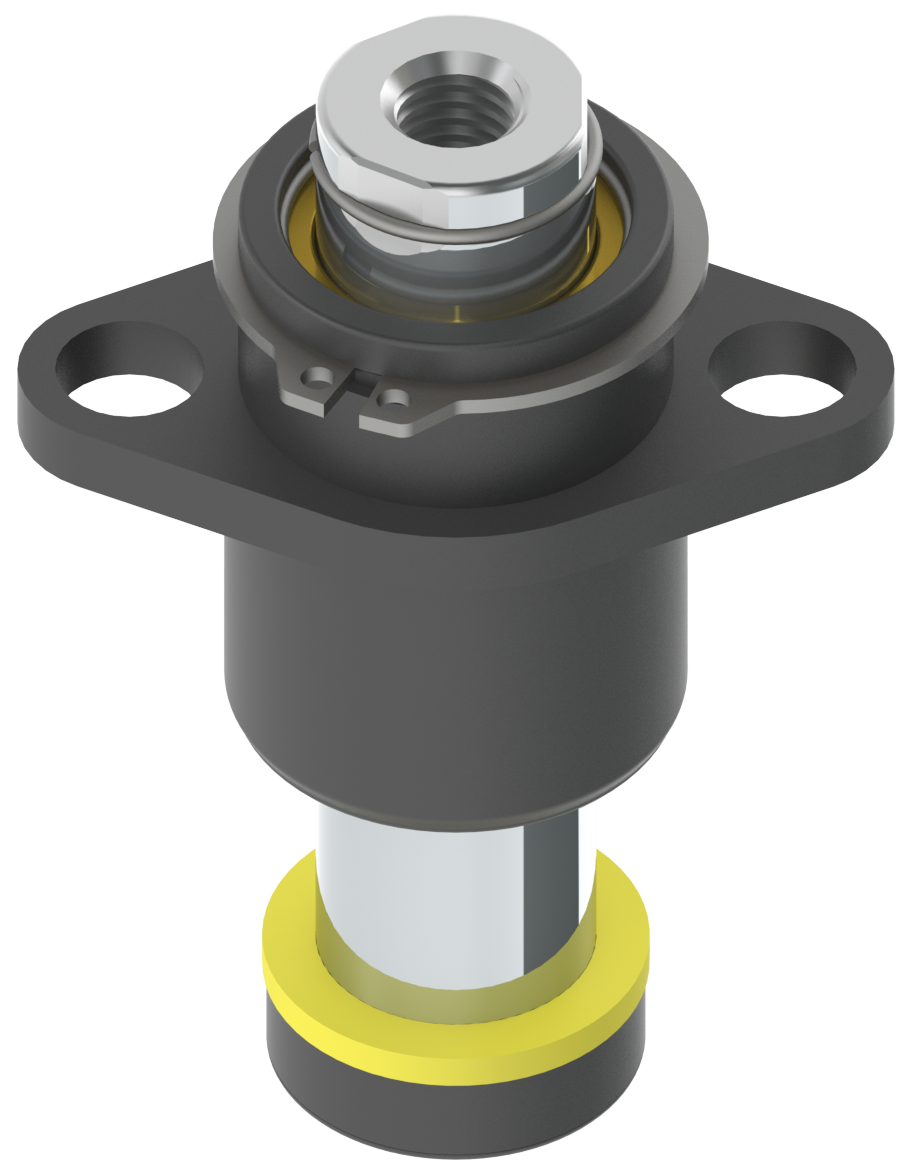

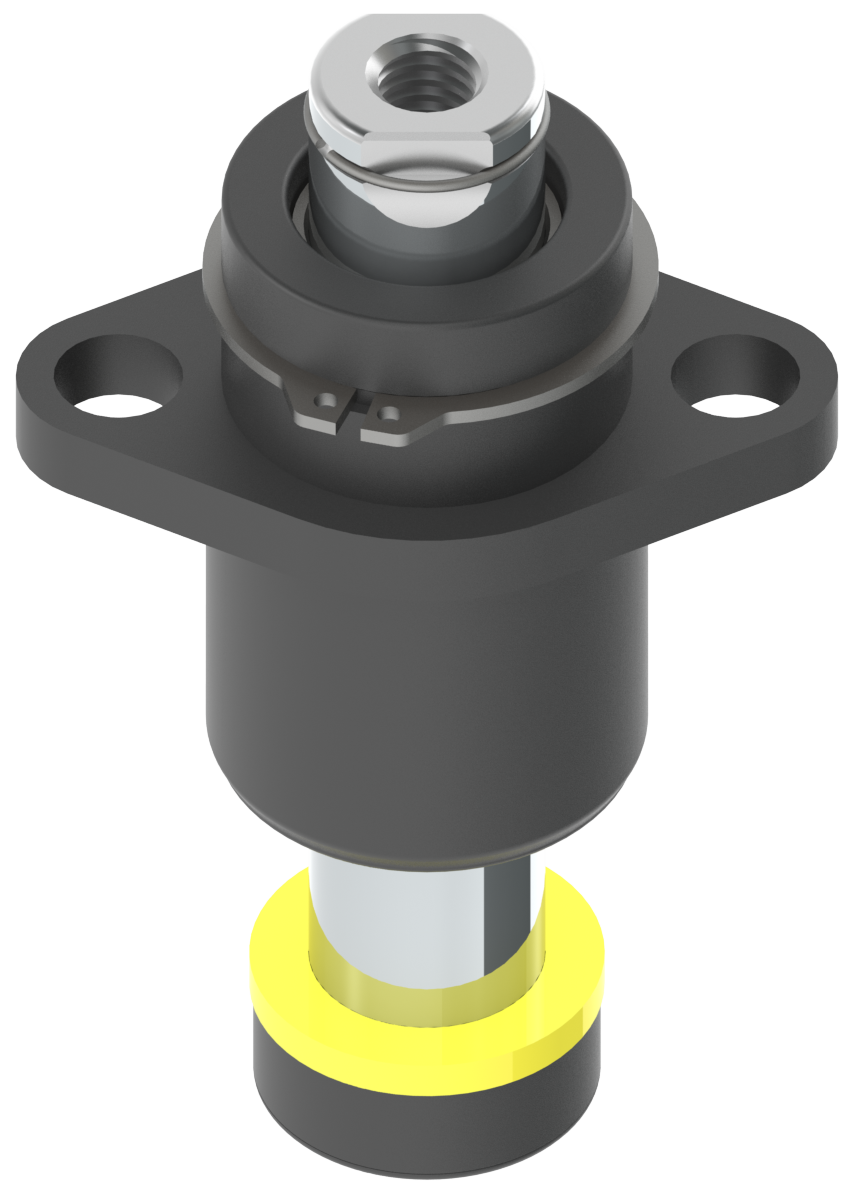

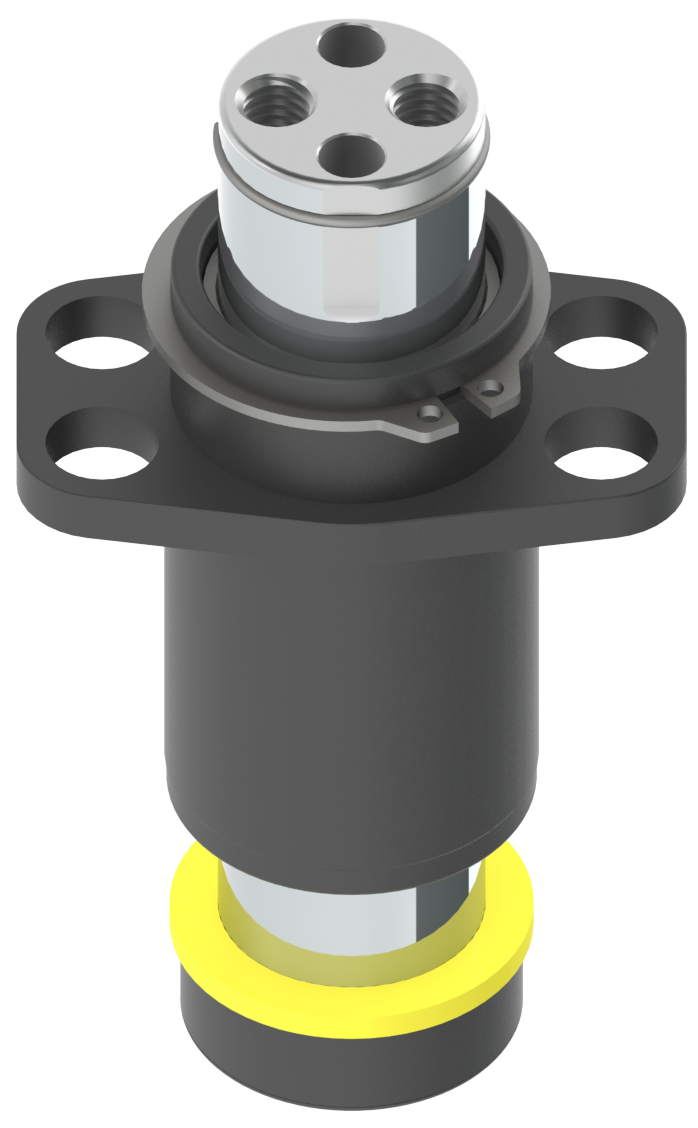

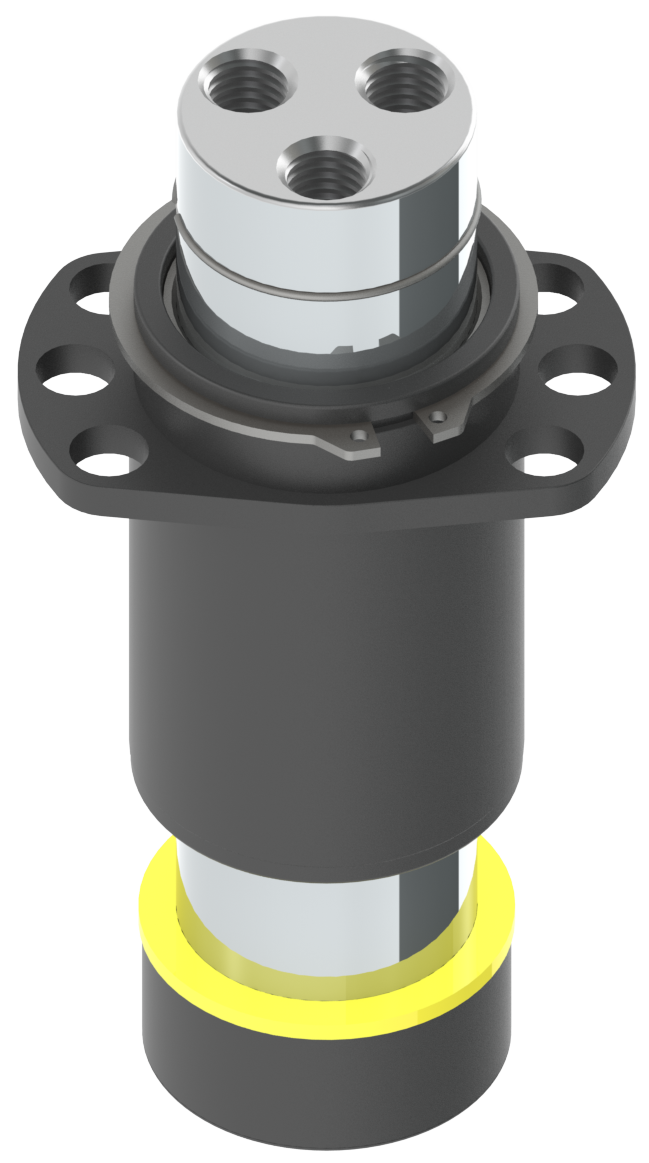

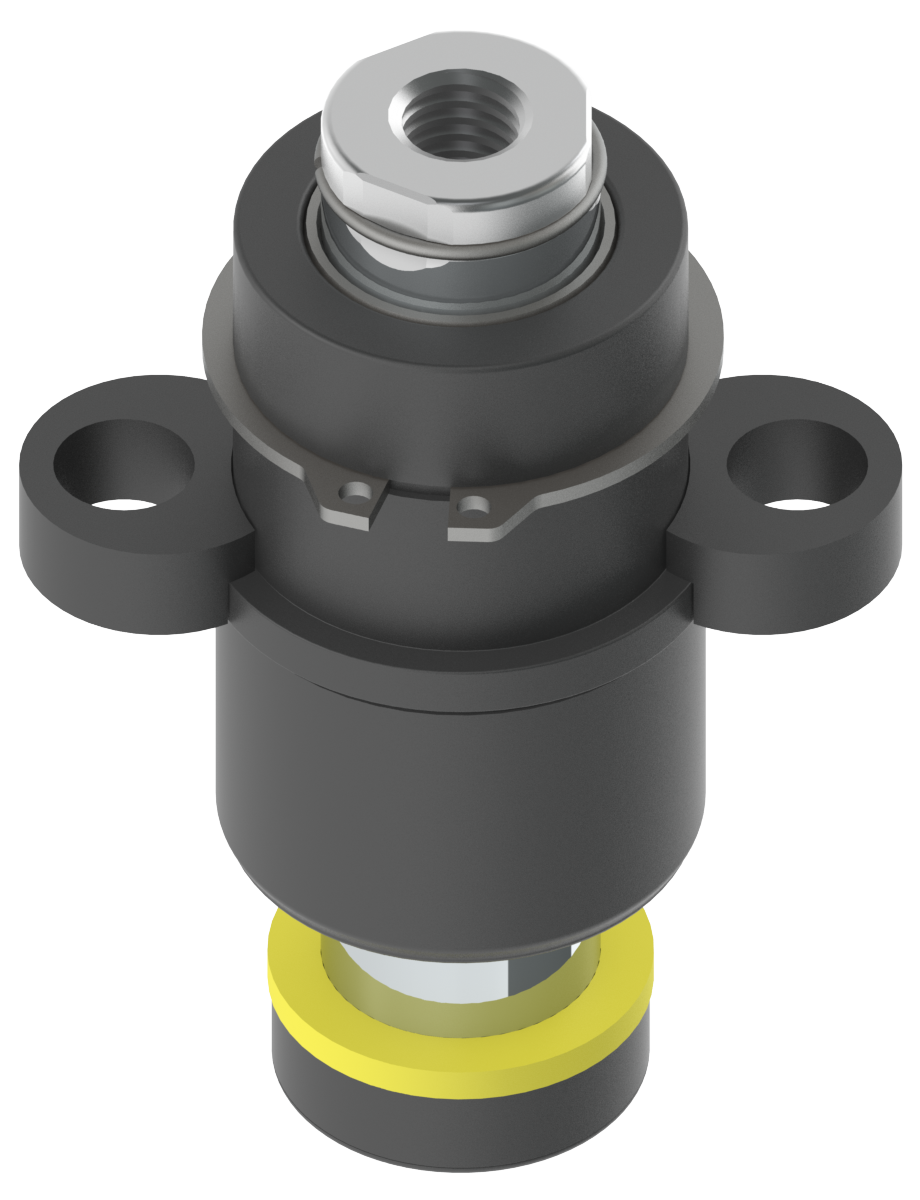

*bases pictured are example images only

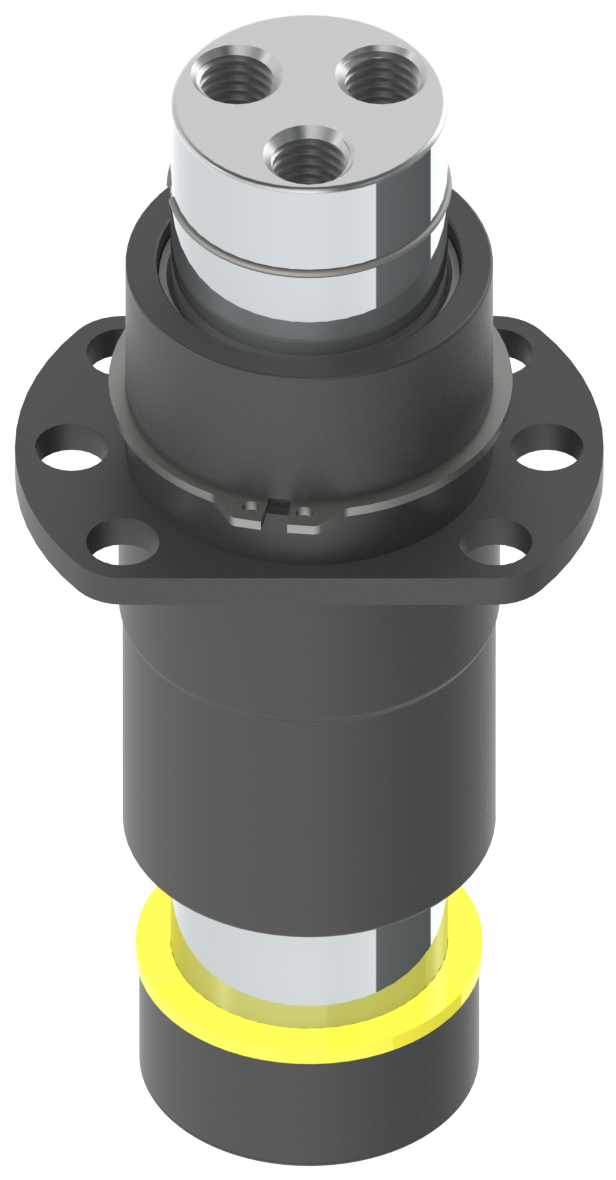

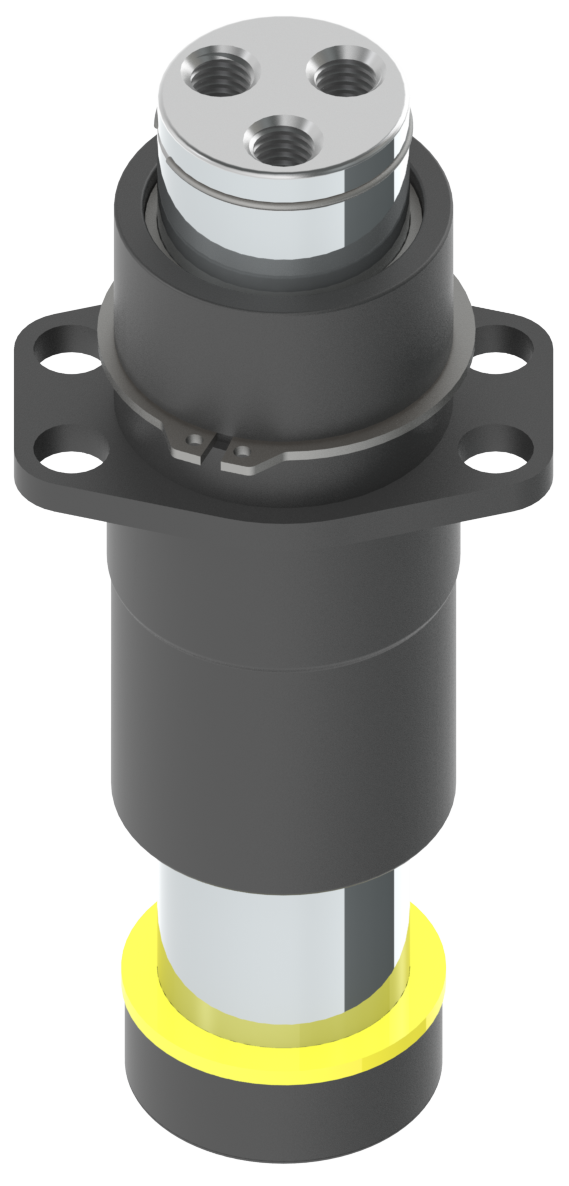

GK205-N5-2-TB
Guide Pin Series
GK205 / 2.00"
Base Style
N5-2
Bushing Length
5"
Base Height
2"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M16 or 5/8
Locking Collar Option
Yes
Guide Pin Length
6.5" - 15" .125" increments

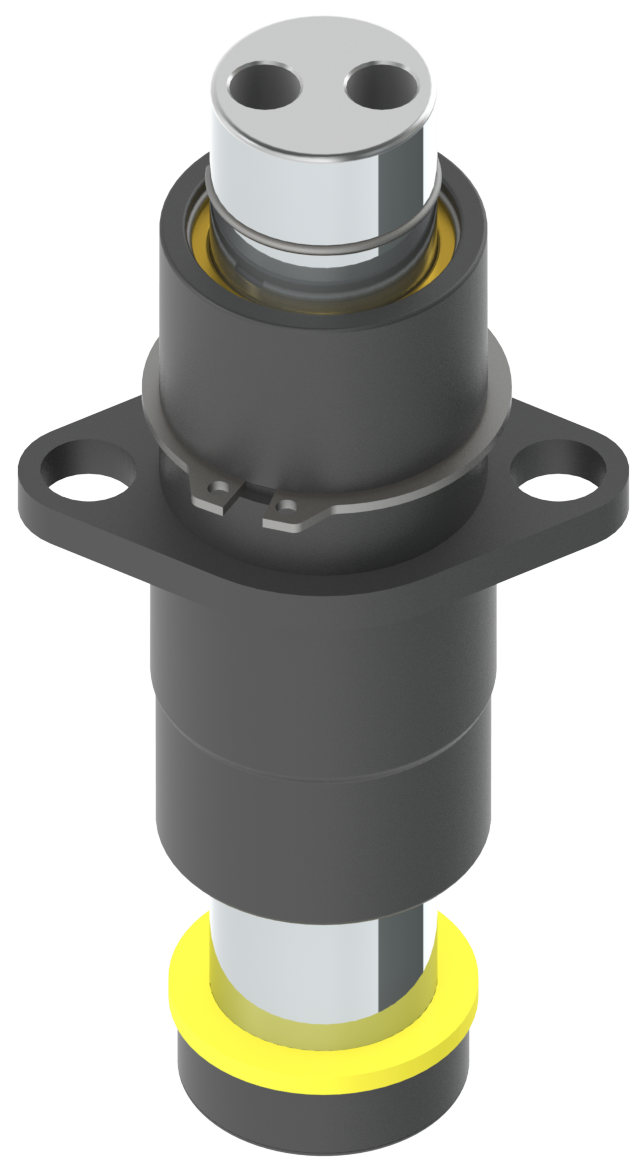

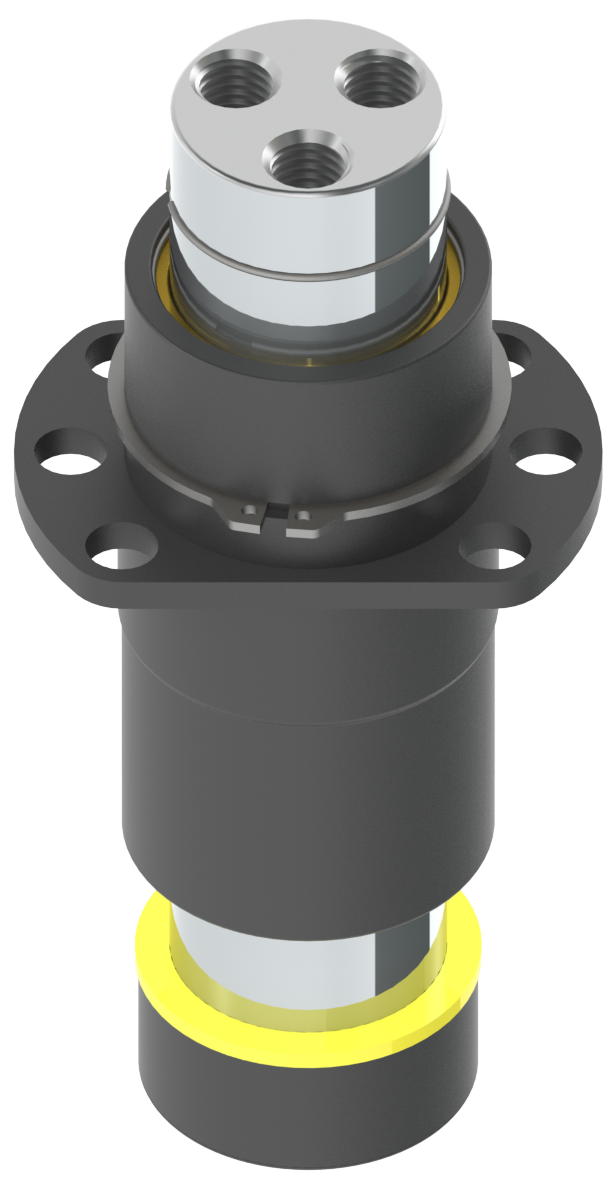

GK205-N5-2-BP
Guide Pin Series
GK205 / 2.00"
Base Style
N5-2
Bushing Length
5"
Base Height
2"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M16 or 5/8
Locking Collar Option
Yes
Guide Pin Length
6.5" - 15" .125" increments

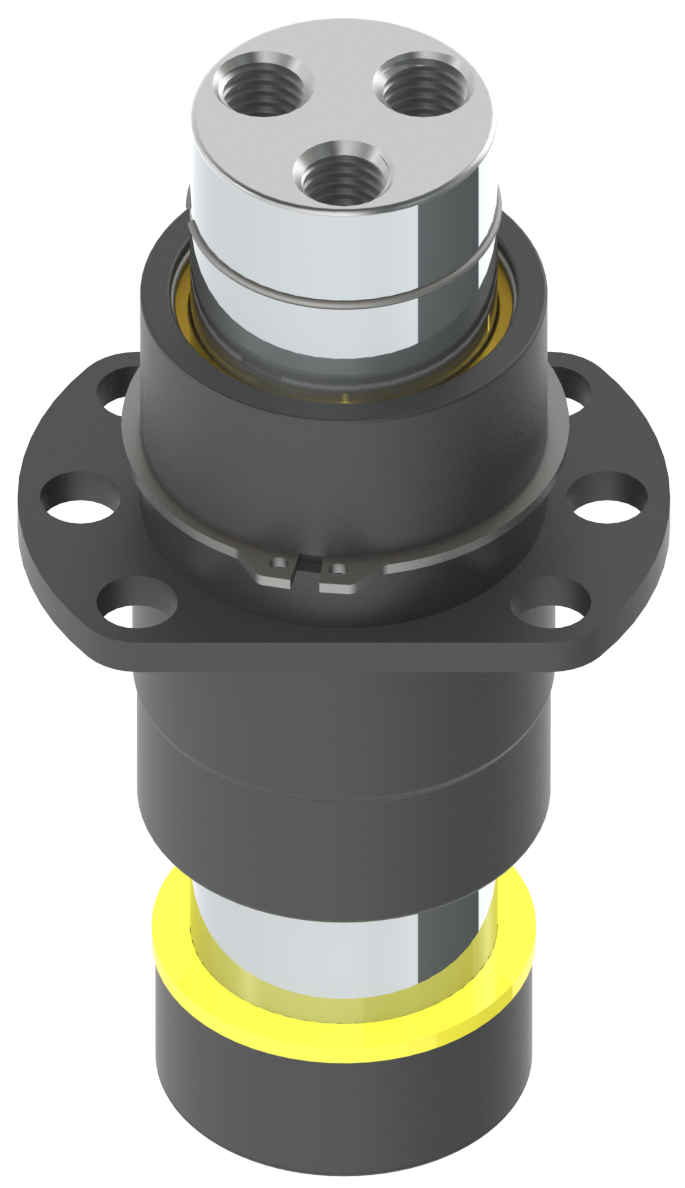

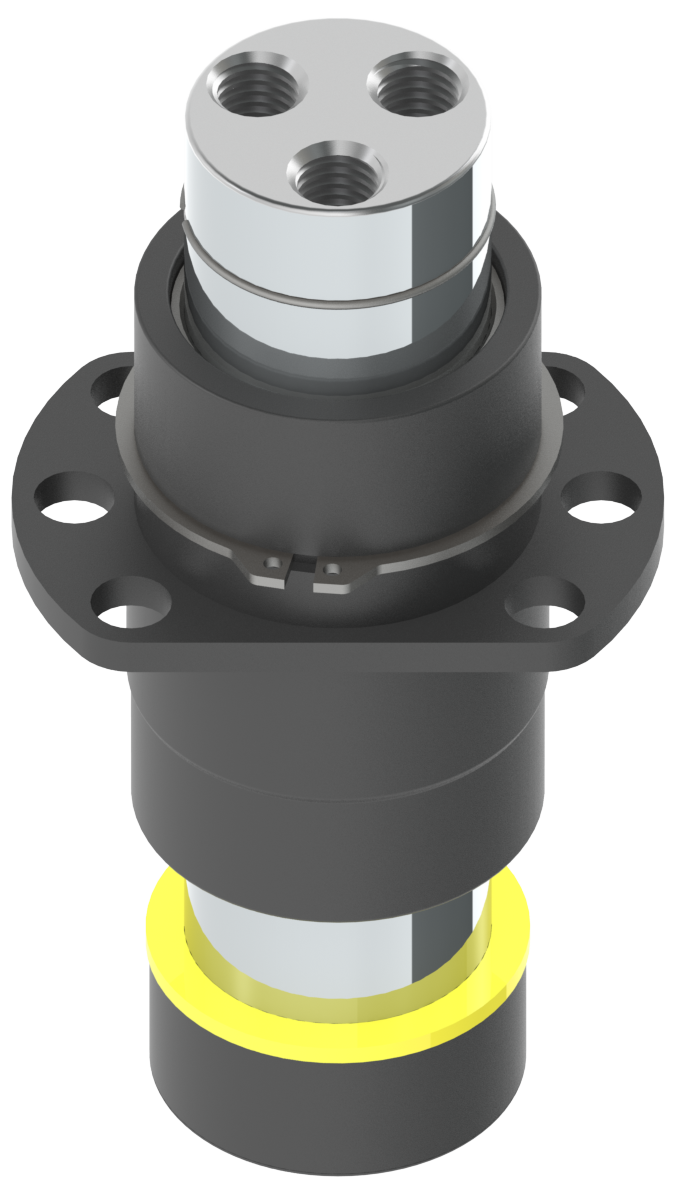

GK205-N4-2-TB
Guide Pin Series
GK205 / 2.00"
Base Style
N4-2
Bushing Length
4"
Base Height
2"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M16 or 5/8
Locking Collar Option
Yes
Guide Pin Length
5.5" - 13.125" .125" increments
GK205-N4-2-BP
Guide Pin Series
GK205 / 2.00"
Base Style
N4-2
Bushing Length
4"
Base Height
2"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M16 or 5/8
Locking Collar Option
Yes
Guide Pin Length
5.5" - 13.125" .125" increments

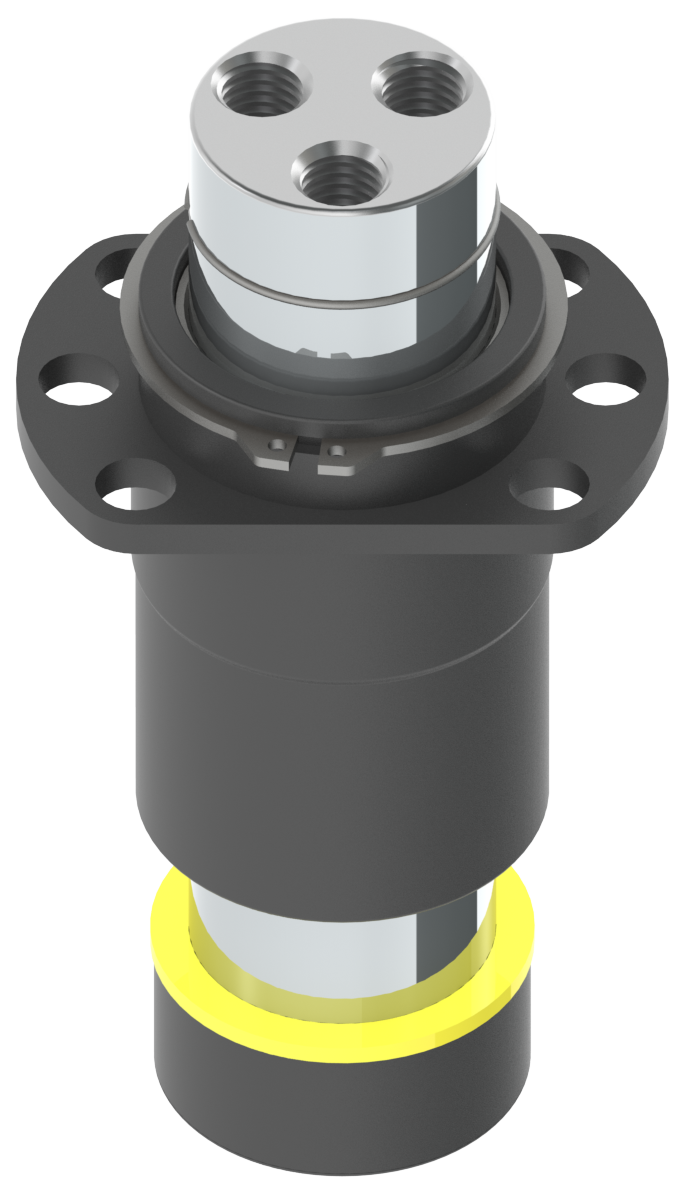

GK205-N4-1-TB
Guide Pin Series
GK205 / 2.00"
Base Style
N4-1
Bushing Length
4"
Base Height
1"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M16 or 5/8
Locking Collar Option
Yes
Guide Pin Length
5.5" - 13.125" .125" increments
GK205-N4-1-BP
Guide Pin Series
GK205 / 2.00"
Base Style
N4-1
Bushing Length
4"
Base Height
1"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M16 or 5/8
Locking Collar Option
Yes
Guide Pin Length
5.5" - 13.125" .125" increments
GK180-N5-2-TB
Guide Pin Series
GK180 / 1.75"
Base Style
N5-2
Bushing Length
5"
Base Height
2"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
Yes
Guide Pin Length
6" - 14.375" .125" increments

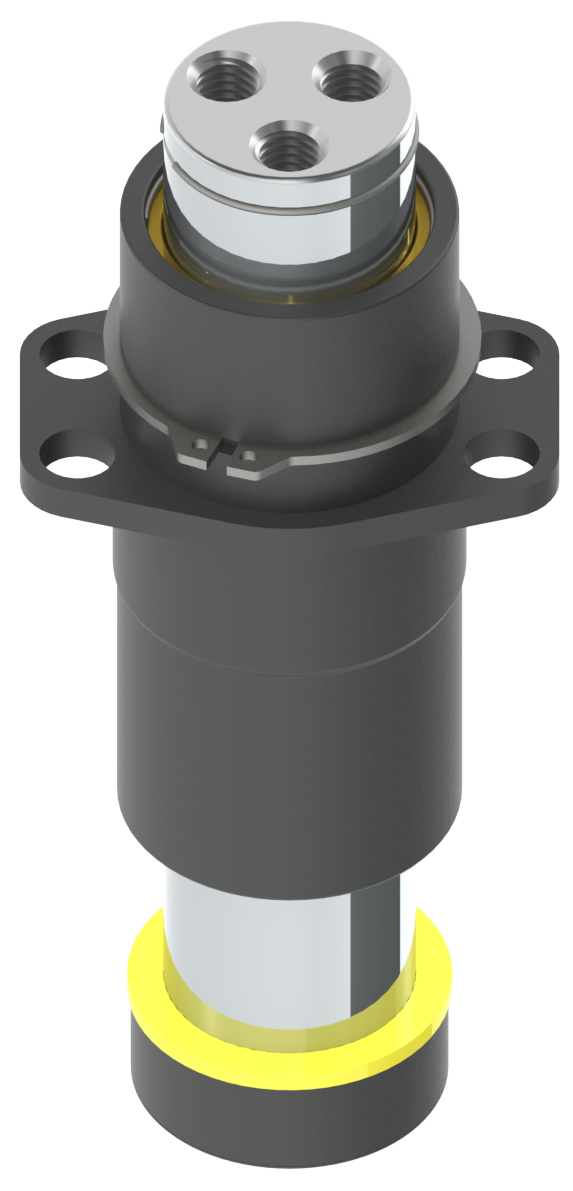

GK180-N5-2-BP
Guide Pin Series
GK180 / 1.75"
Base Style
N5-2
Bushing Length
5"
Base Height
2"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
Yes
Guide Pin Length
6" - 14.375" .125" increments
GK180-N4-2-TB
Guide Pin Series
GK180 / 1.75"
Base Style
N4-2
Bushing Length
4"
Base Height
2"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
Yes
Guide Pin Length
5" - 12.625" .125" increments

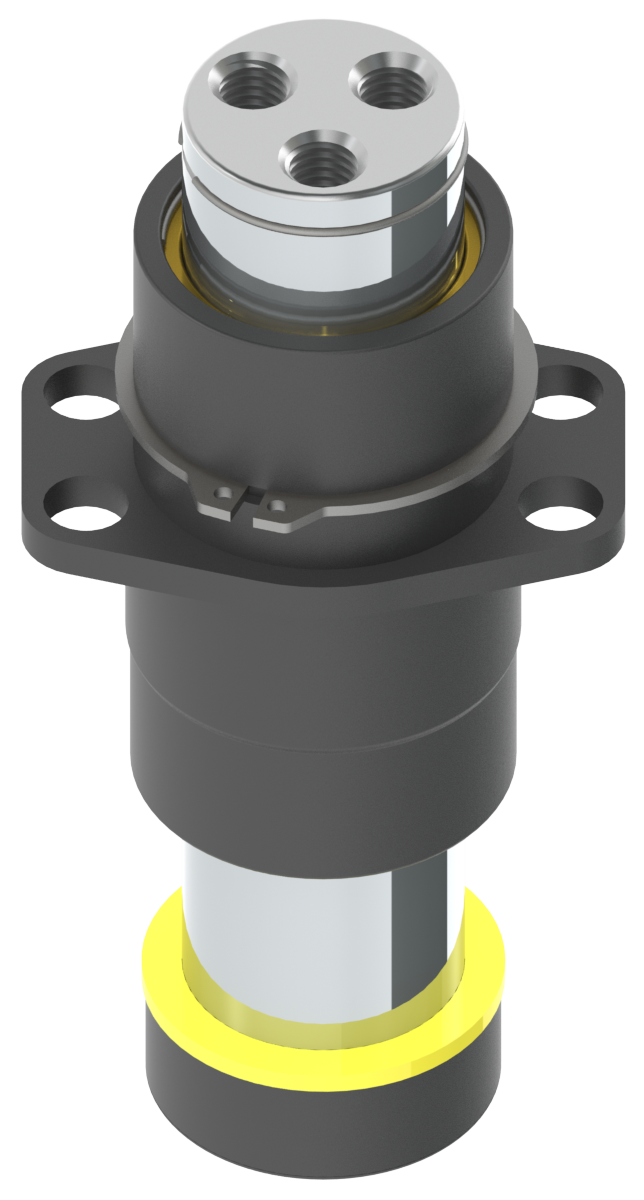

GK180-N4-2-BP
Guide Pin Series
GK180 / 1.75"
Base Style
N4-2
Bushing Length
4"
Base Height
2"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
Yes
Guide Pin Length
5" - 12.625" .125" increments

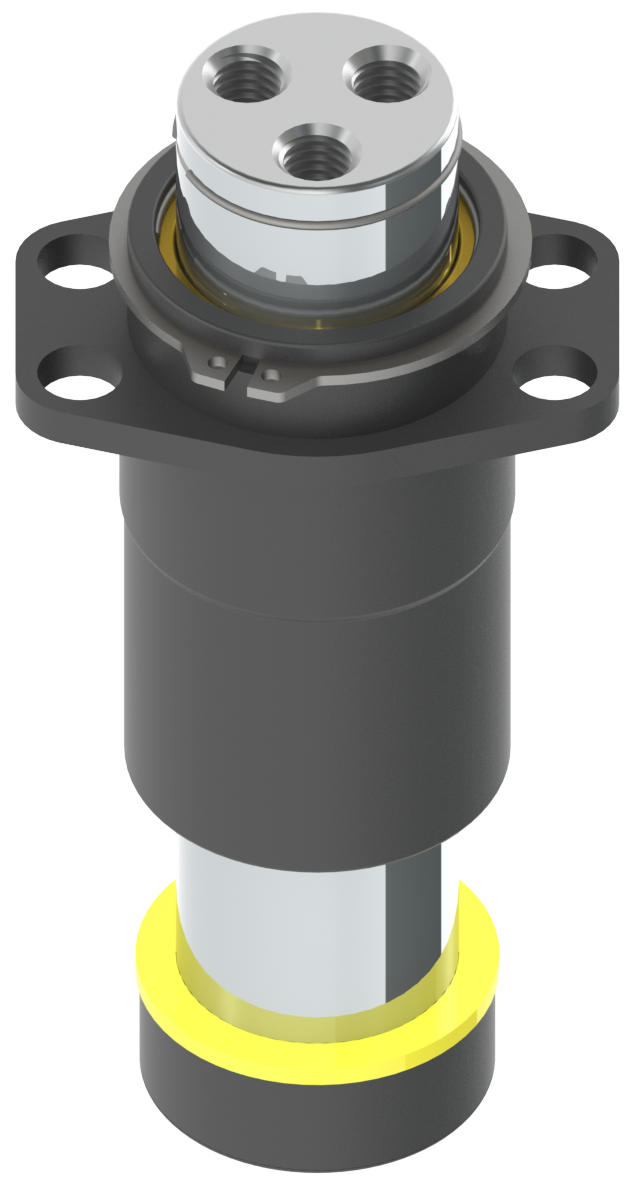

GK180-N4-1-TB
Guide Pin Series
GK180 / 1.75"
Base Style
N4-1
Bushing Length
4"
Base Height
1"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
Yes
Guide Pin Length
5" - 12.625" .125" increments
GK180-N4-1-BP
Guide Pin Series
GK180 / 1.75"
Base Style
N4-1
Bushing Length
4"
Base Height
1"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
Yes
Guide Pin Length
5" - 12.625" .125" increments

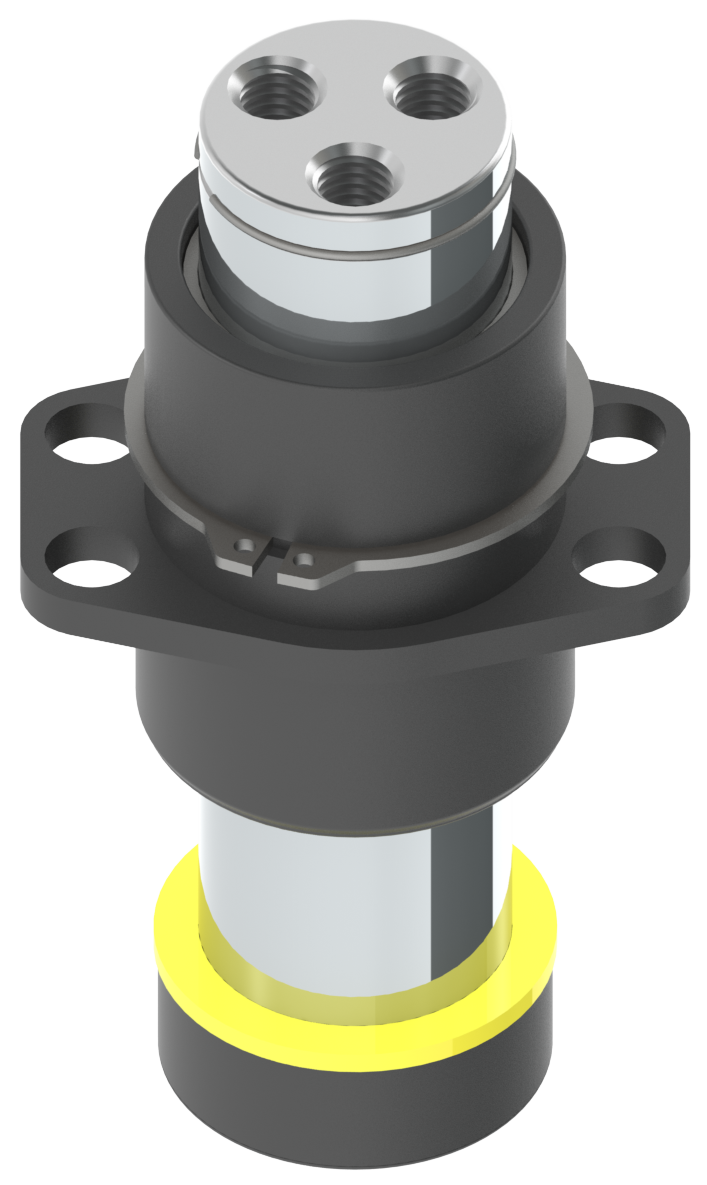

GK180-N3-2-TB
Guide Pin Series
GK180 / 1.75"
Base Style
N3-2
Bushing Length
3"
Base Height
2"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
Yes
Guide Pin Length
4" - 9.625" .125" increments

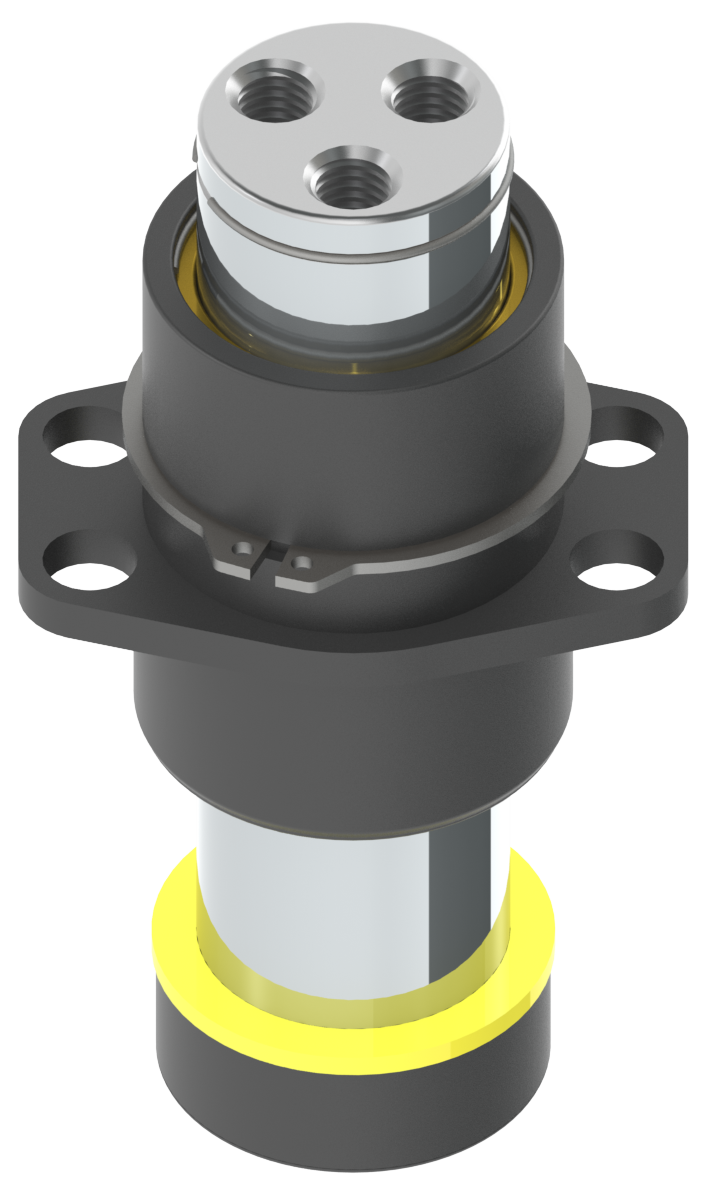

GK180-N3-2-BP
Guide Pin Series
GK180 / 1.75"
Base Style
N3-2
Bushing Length
3"
Base Height
2"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
Yes
Guide Pin Length
4" - 9.625" .125" increments

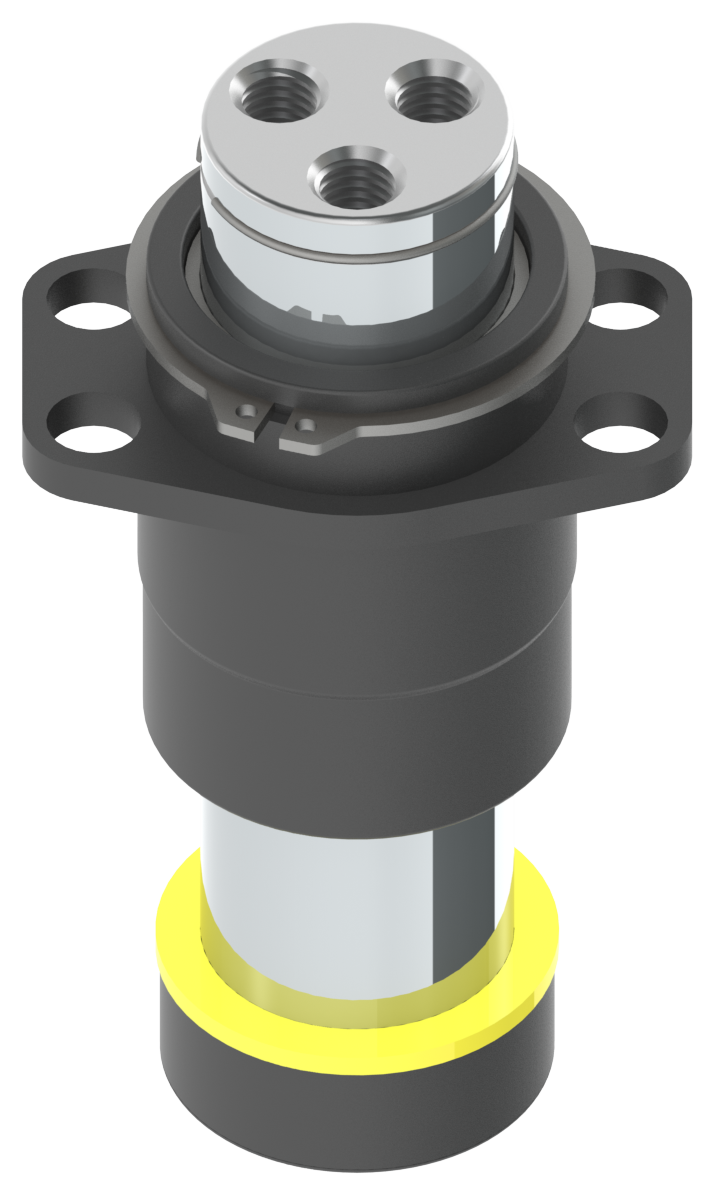

GK180-N3-1-TB
Guide Pin Series
GK180 / 1.75"
Base Style
N3-1
Bushing Length
3"
Base Height
1"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
Yes
Guide Pin Length
4" - 9.625" .125" increments
GK180-N3-1-BP
Guide Pin Series
GK180 / 1.75"
Base Style
N3-1
Bushing Length
3"
Base Height
1"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
Yes
Guide Pin Length
4" - 9.625" .125" increments

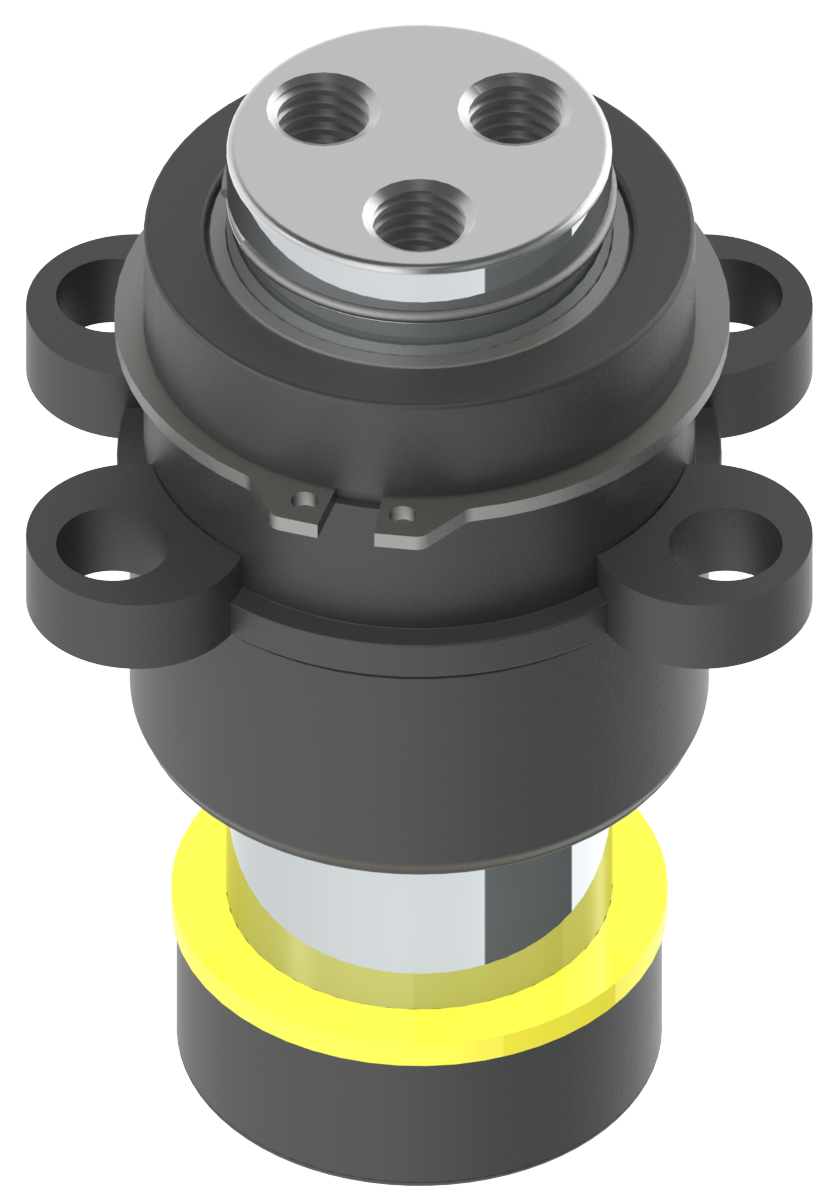

GK180-P1.5
Guide Pin Series
GK180 / 1.75"
Base Style
P (low clearance)
Base Height
1.5”
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
Yes
Guide Pin Length
2.25” – 4.875” .125” increments

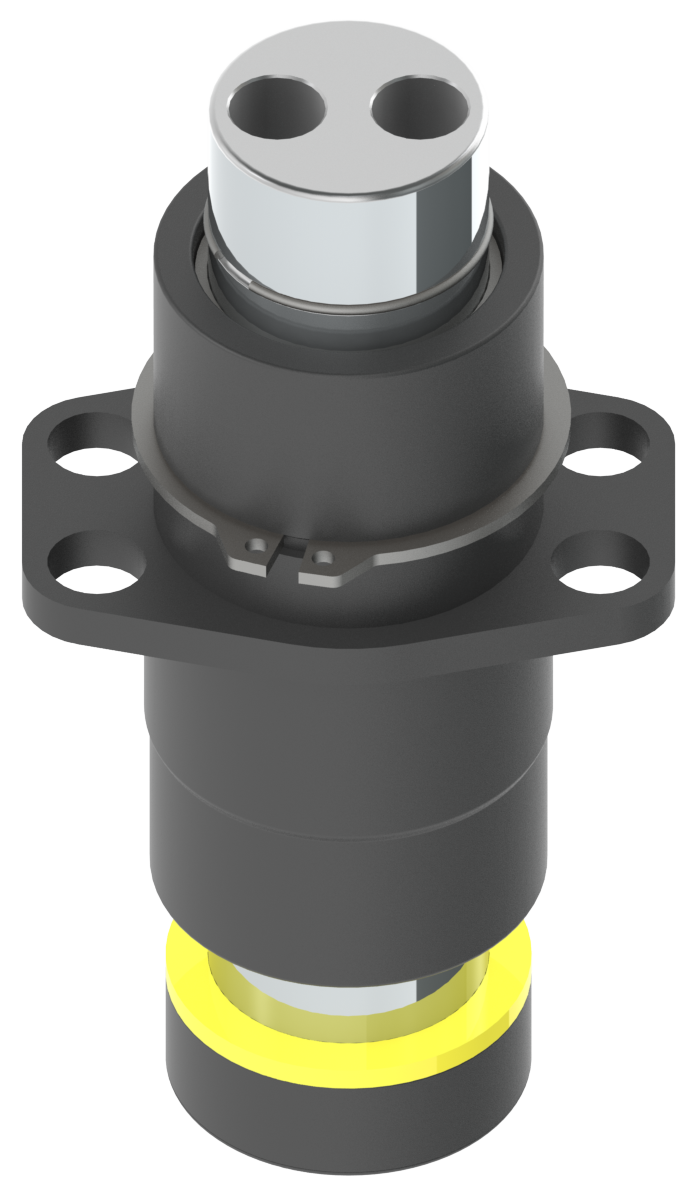

GK152-N4-2-TB
Guide Pin Series
GK152 / 1.50"
Base Style
N4-2
Bushing Length
4"
Base Height
2"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
No
Guide Pin Length
5.5" - 12.625" .125" increments

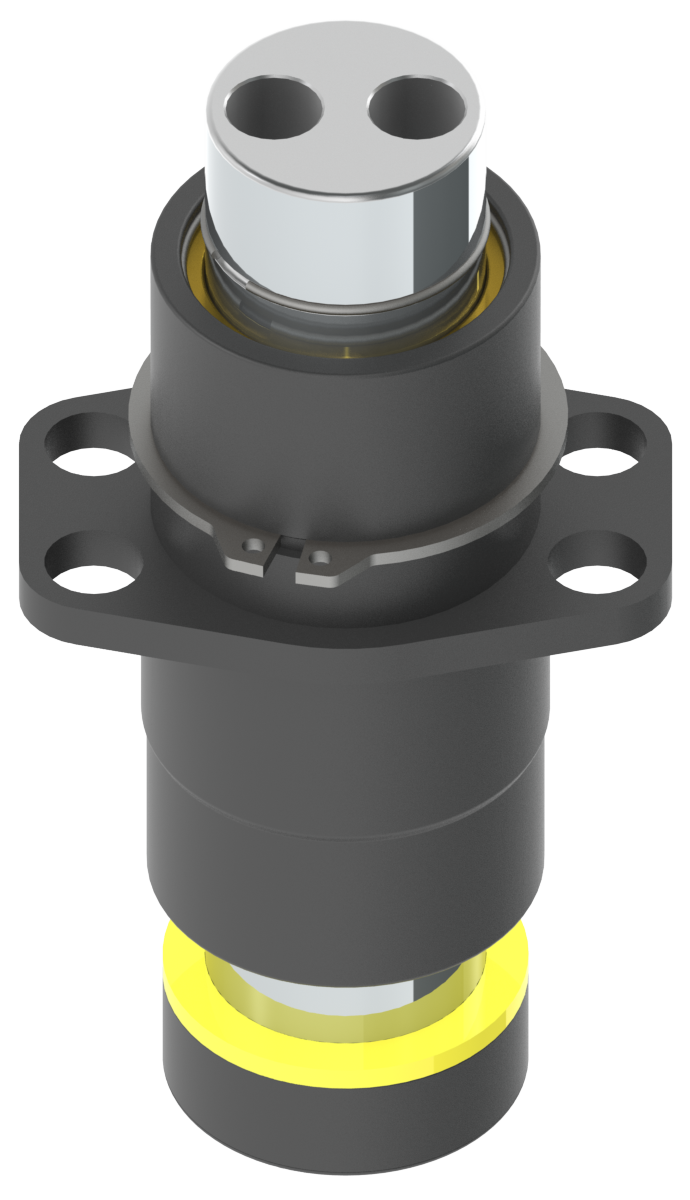

GK152-N4-2-BP
Guide Pin Series
GK152 / 1.50"
Base Style
N4-2
Bushing Length
4"
Base Height
2"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
No
Guide Pin Length
5.5" - 12.625" .125" increments

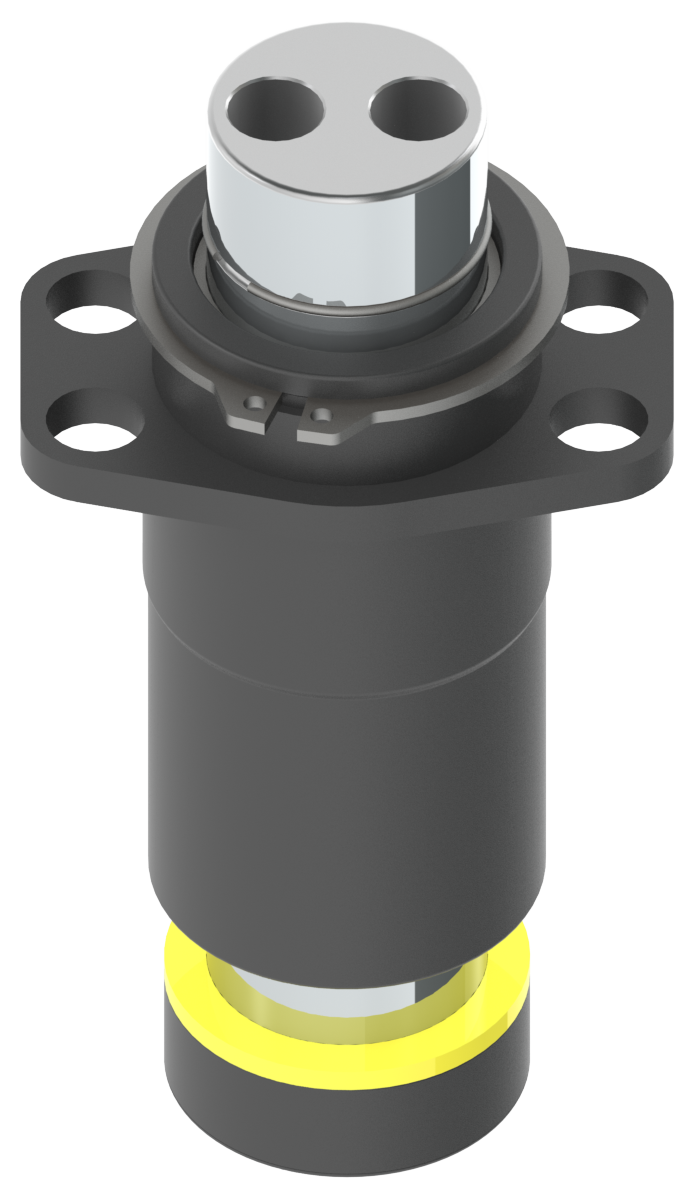

GK152-N4-1-TB
Guide Pin Series
GK152 / 1.50"
Base Style
N4-1
Bushing Length
4"
Base Height
1"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
No
Guide Pin Length
5.5" - 12.625" .125" increments

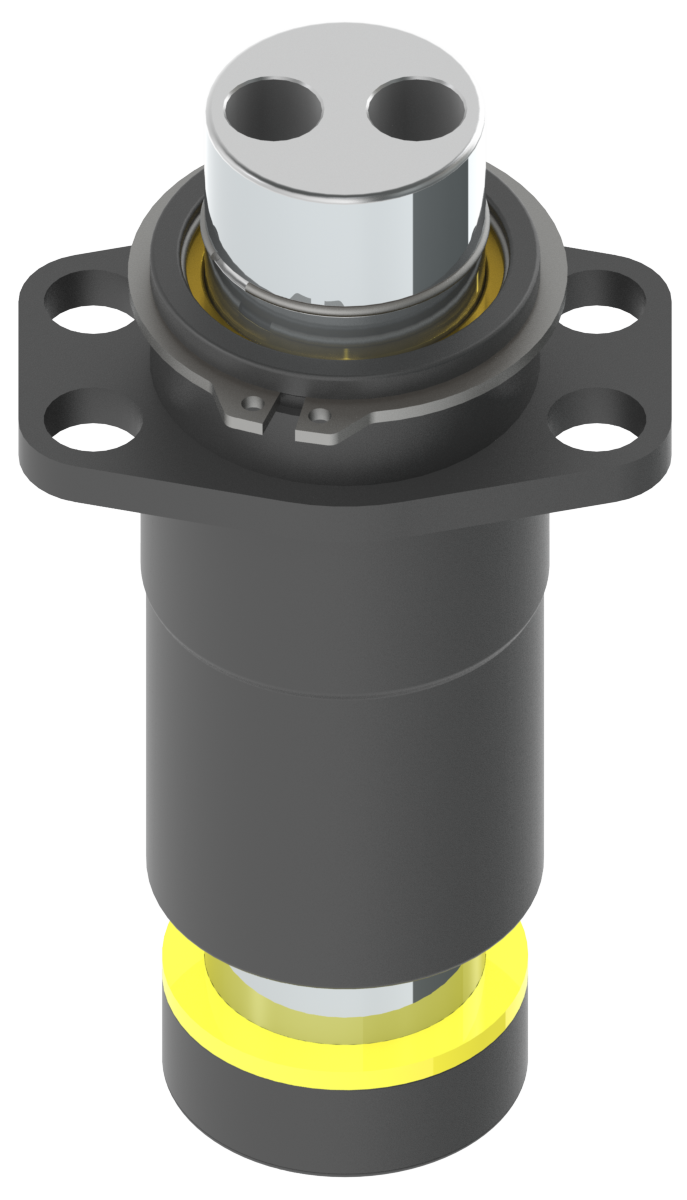

GK152-N4-1-BP
Guide Pin Series
GK152 / 1.50"
Base Style
N4-1
Bushing Length
4"
Base Height
1"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
No
Guide Pin Length
5.5" - 12.625" .125" increments

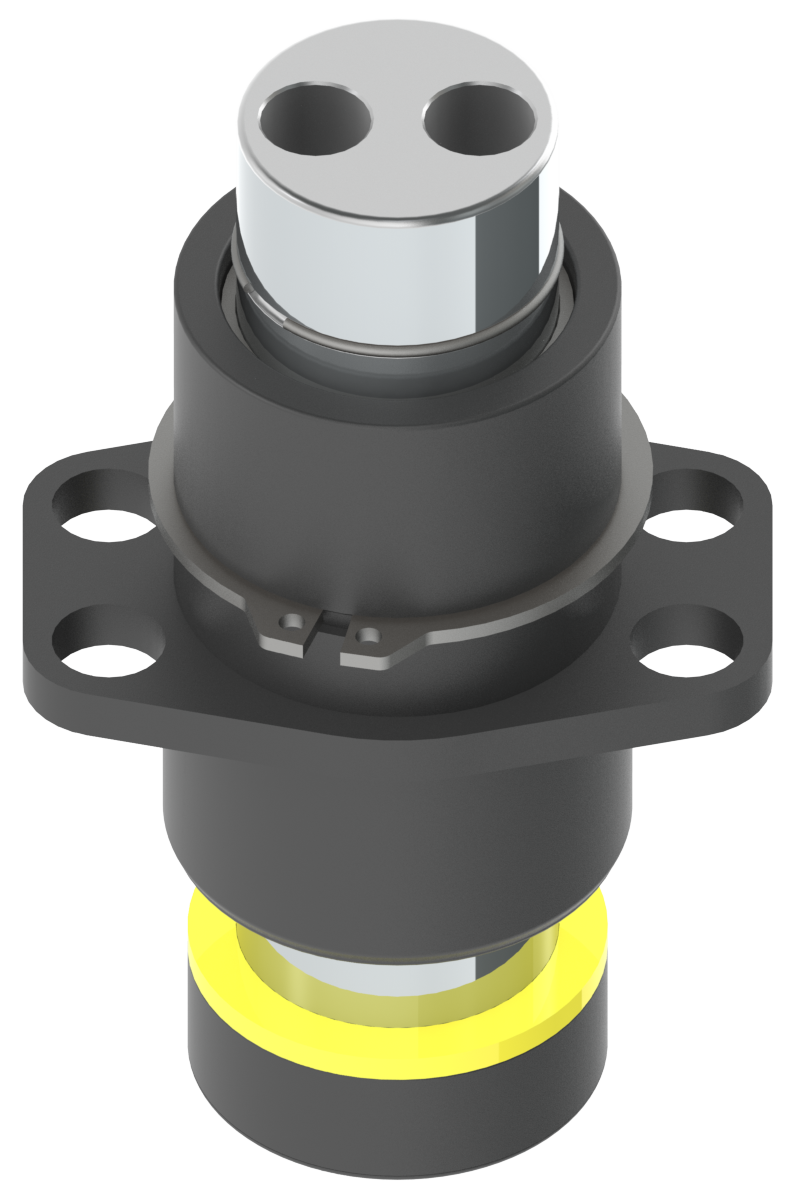

GK152-N3-2-TB
Guide Pin Series
GK152 / 1.50"
Base Style
N3-2
Bushing Length
3"
Base Height
2"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
No
Guide Pin Length
4.5" - 10.125" .125" increments
GK152-N3-2-BP
Guide Pin Series
GK152 / 1.50"
Base Style
N3-2
Bushing Length
3"
Base Height
2"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
No
Guide Pin Length
4.5" - 10.125" .125" increments

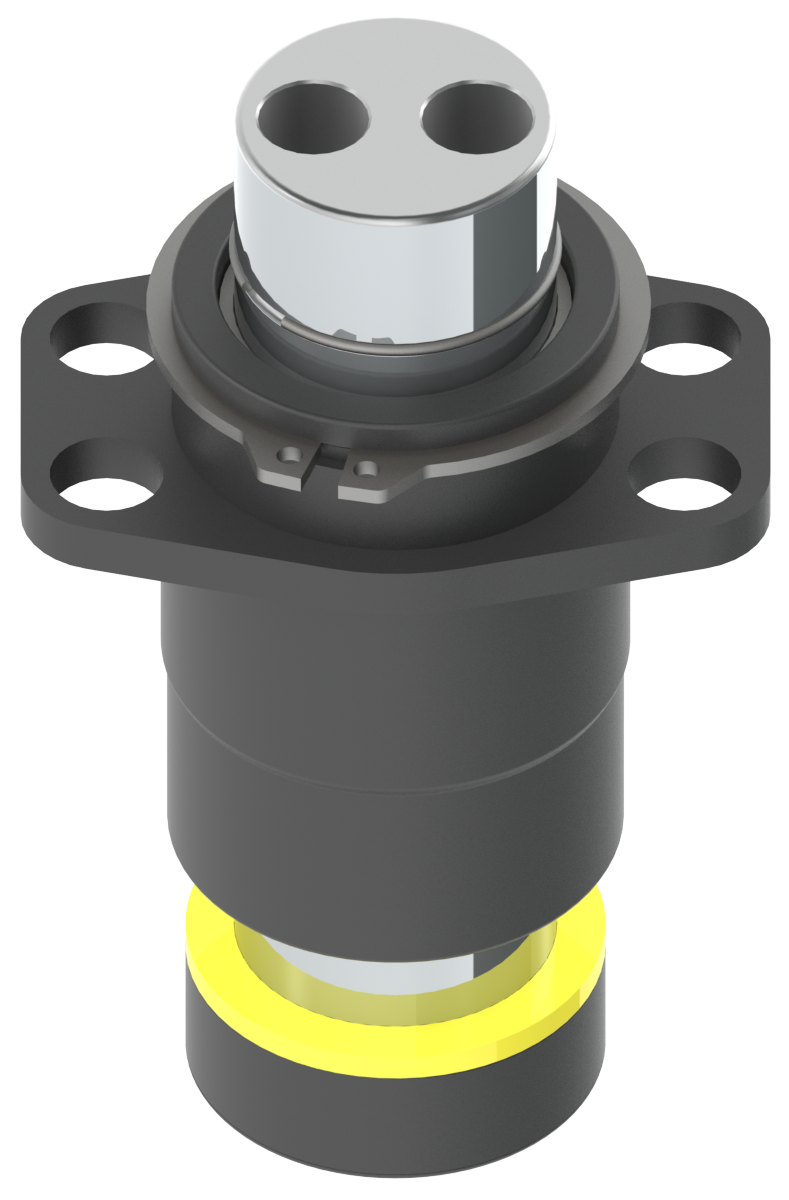

GK152-N3-1-TB
Guide Pin Series
GK152 / 1.50"
Base Style
N3-1
Bushing Length
3"
Base Height
1"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
No
Guide Pin Length
4.5" - 10.125" .125" increments

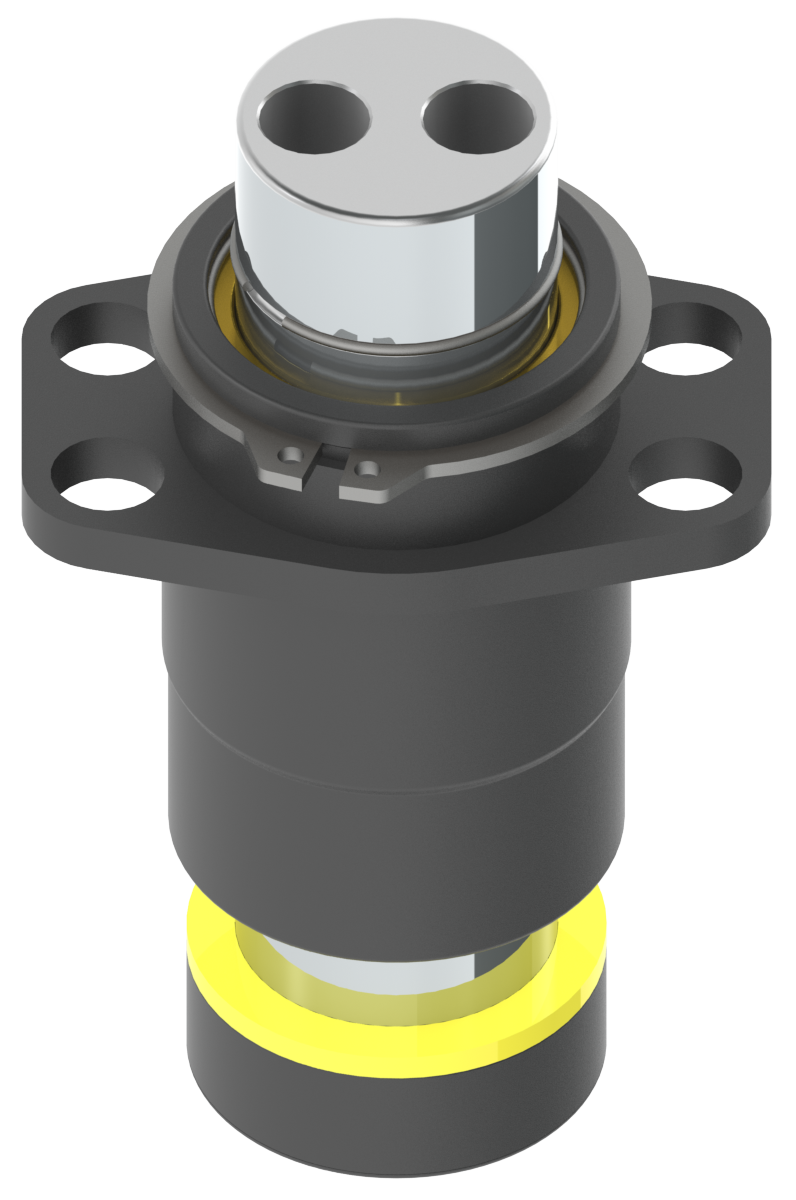

GK152-N3-1-BP
Guide Pin Series
GK152 / 1.50"
Base Style
N3-1
Bushing Length
3"
Base Height
1"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
No
Guide Pin Length
4.5" - 10.125" .125" increments

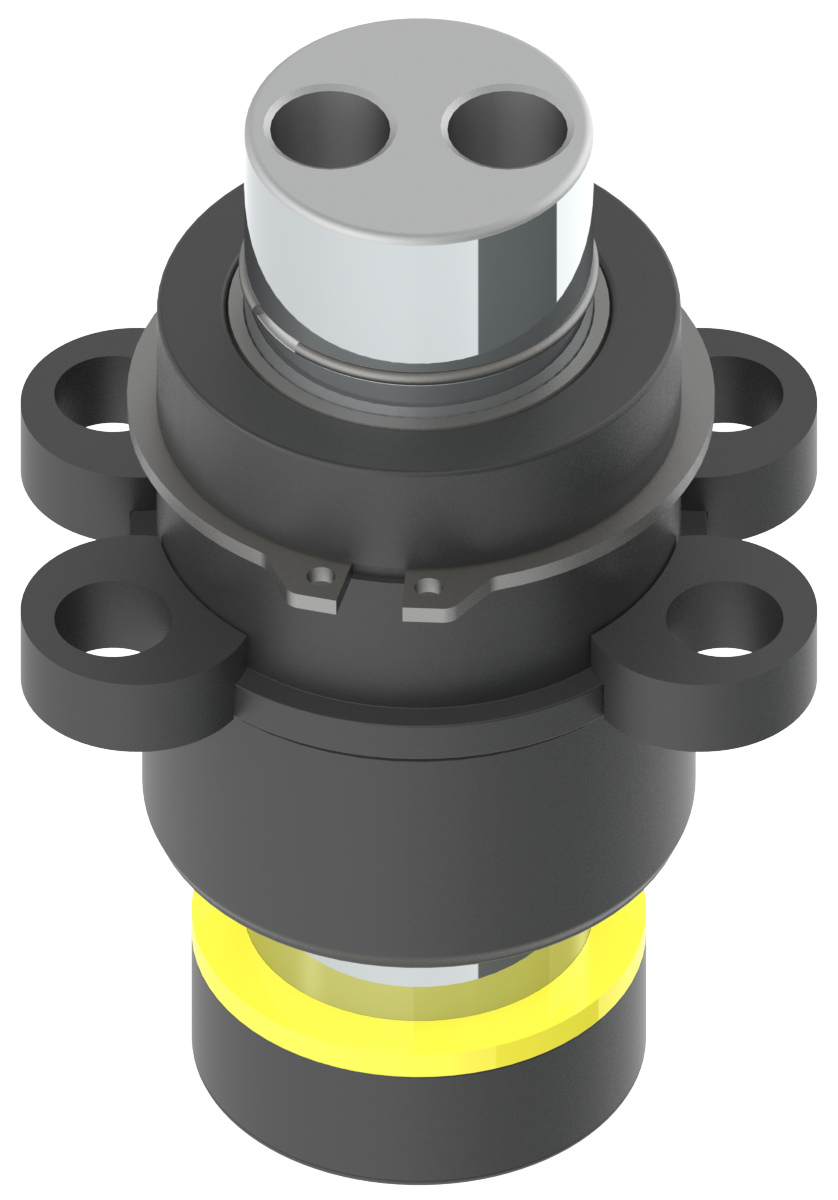

GK152-P1.5
Guide Pin Series
GK152 / 1.50"
Base Style
P (low clearance)
Base Height
1.5”
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
No
Guide Pin Length
2.75” – 5.375” .125” increments

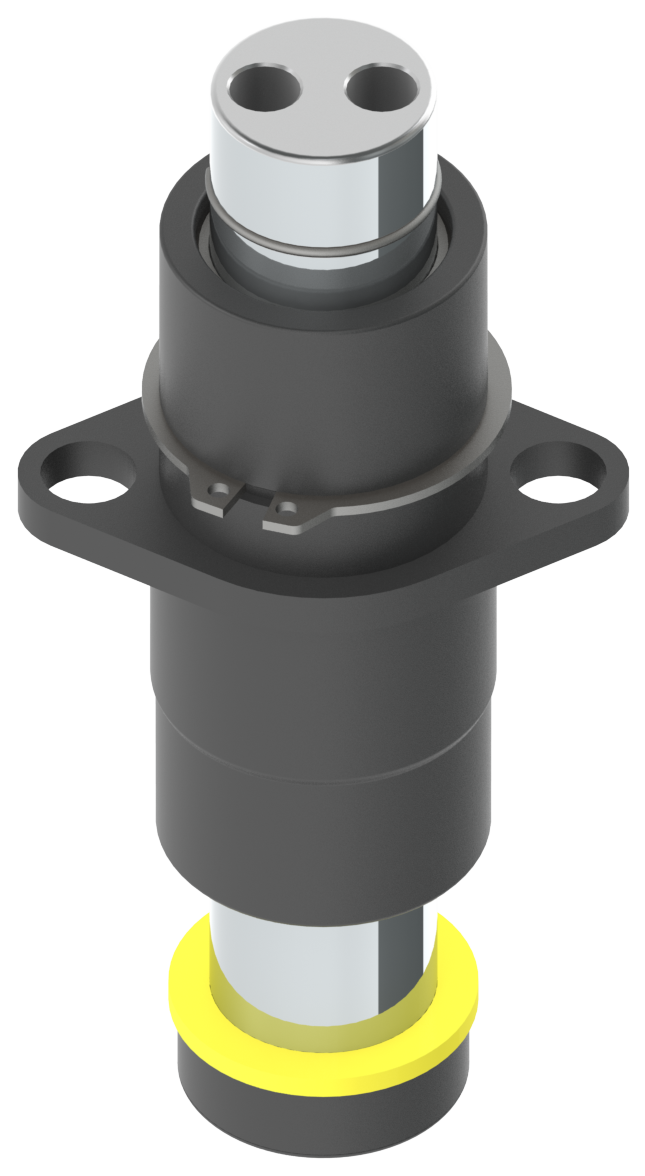

GK122-N4-2-TB
Guide Pin Series
GK122 / 1.25"
Base Style
N4-2
Bushing Length
4"
Base Height
2"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
5.375" - 11.25" .125" increments
GK122-N4-2-BP
Guide Pin Series
GK122 / 1.25"
Base Style
N4-2
Bushing Length
4"
Base Height
2"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
5.375" - 11.25" .125" increments

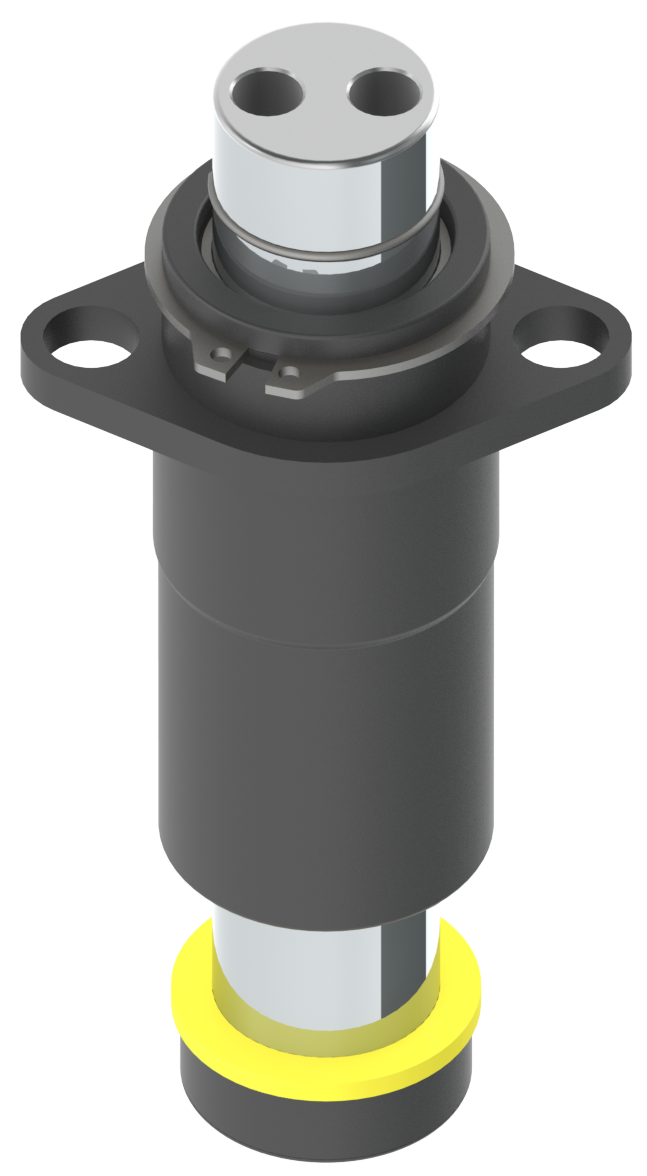

GK122-N4-1-TB
Guide Pin Series
GK122 / 1.25"
Base Style
N4-1
Bushing Length
4"
Base Height
1"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
5.375" - 11.25" .125" increments
GK122-N4-1-BP
Guide Pin Series
GK122 / 1.25"
Base Style
N4-1
Bushing Length
4"
Base Height
1"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
5.375" - 11.25" .125" increments

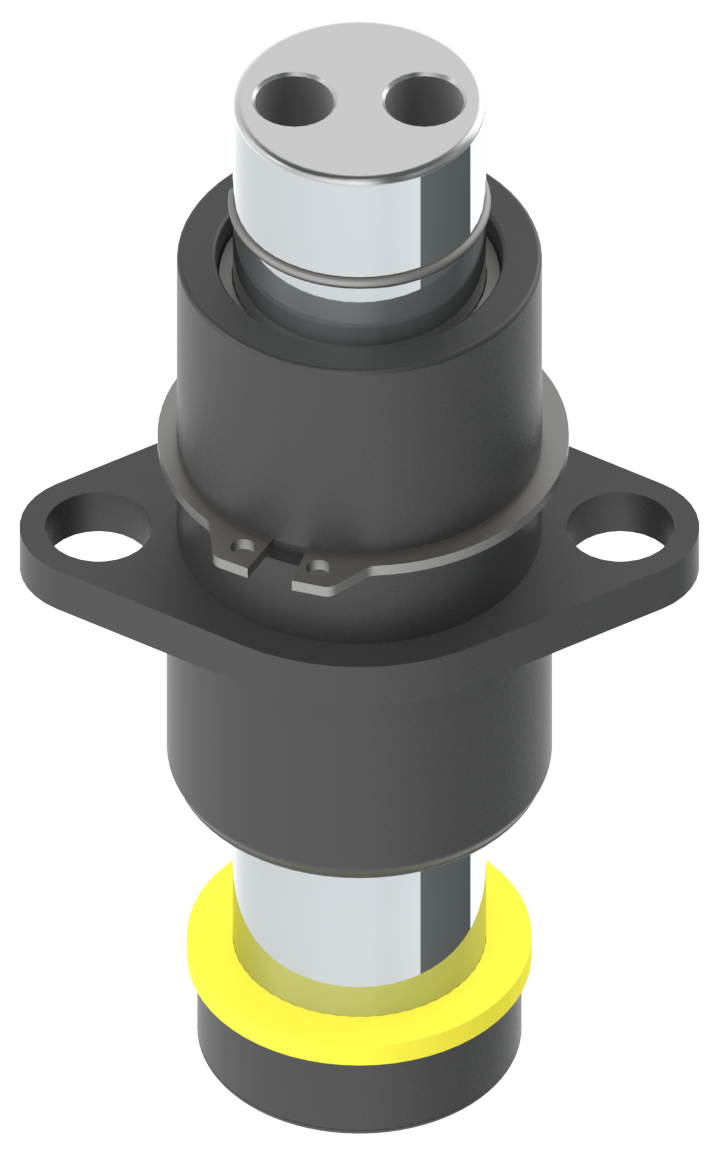

GK122-N3-2-TB
Guide Pin Series
GK122 / 1.25"
Base Style
N3-2
Bushing Length
3"
Base Height
2"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
4.375" - 10" .125" increments

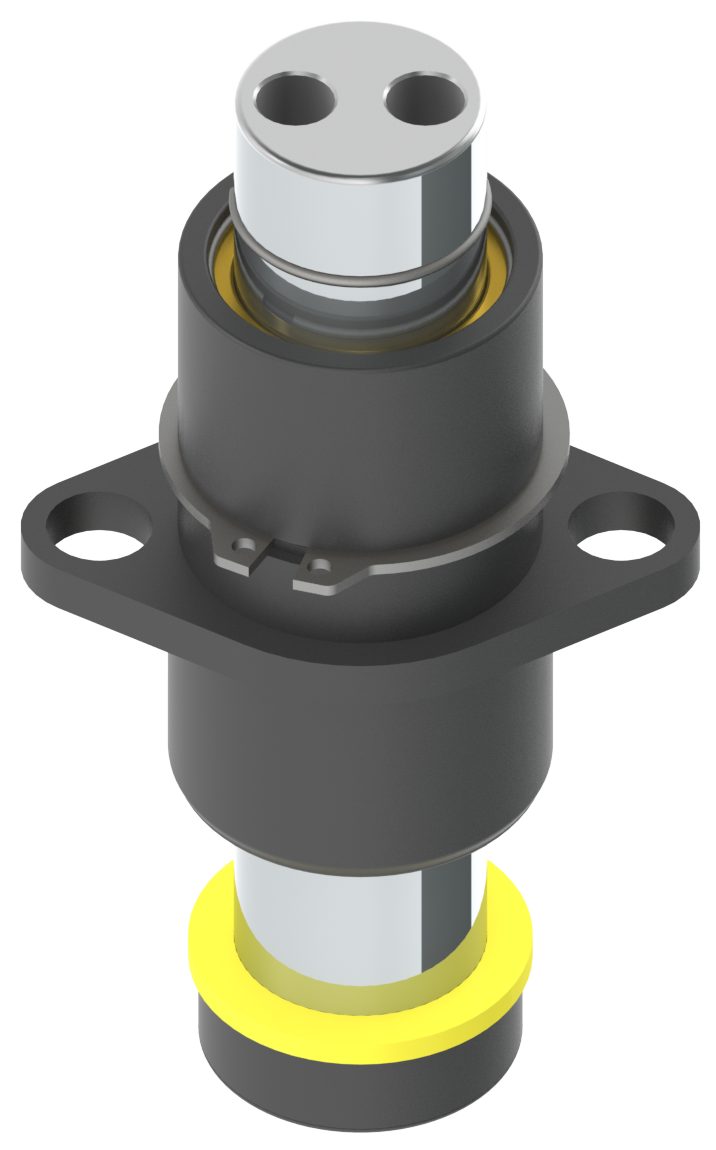

GK122-N3-2-BP
Guide Pin Series
GK122 / 1.25"
Base Style
N3-2
Bushing Length
3"
Base Height
2"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
4.375" - 10" .125" increments

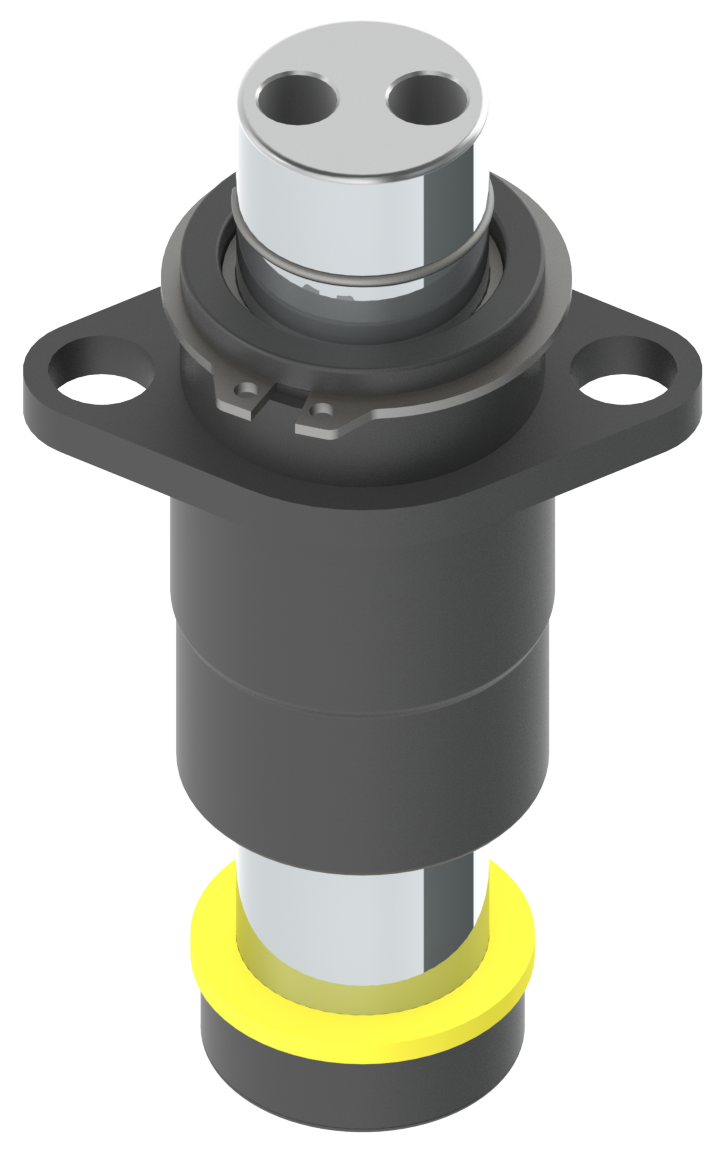

GK122-N3-1-TB
Guide Pin Series
GK122 / 1.25"
Base Style
N3-1
Bushing Length
3"
Base Height
1"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
4.375" - 10" .125" increments
GK122-N3-1-BP
Guide Pin Series
GK122 / 1.25"
Base Style
N3-1
Bushing Length
3"
Base Height
1"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
4.375" - 10" .125" increments

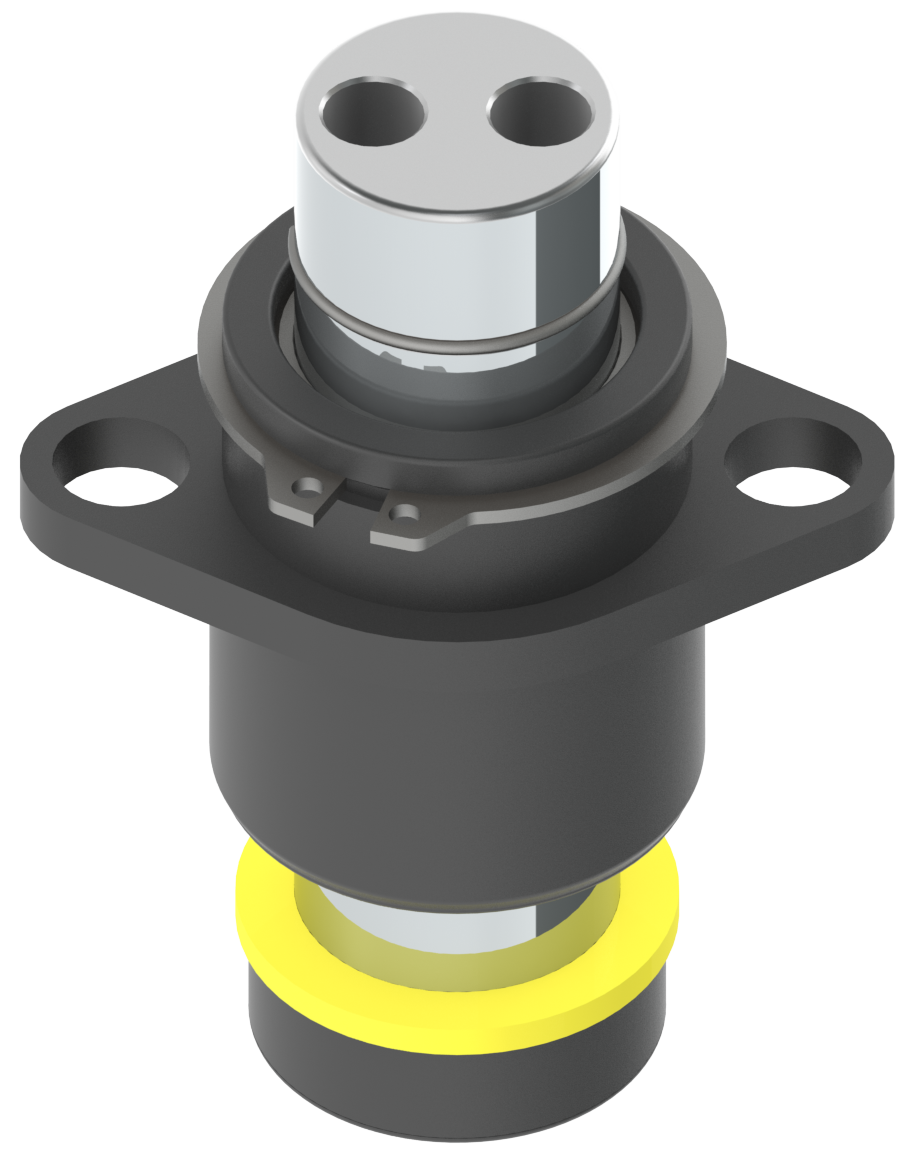

GK122-N2-1-TB
Guide Pin Series
GK122 / 1.25"
Base Style
N2-1
Bushing Length
2"
Base Height
1"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
3.375" - 7" .125" increments
GK122-N2-1-BP
Guide Pin Series
GK122 / 1.25"
Base Style
N2-1
Bushing Length
2"
Base Height
1"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
3.375" - 7" .125" increments

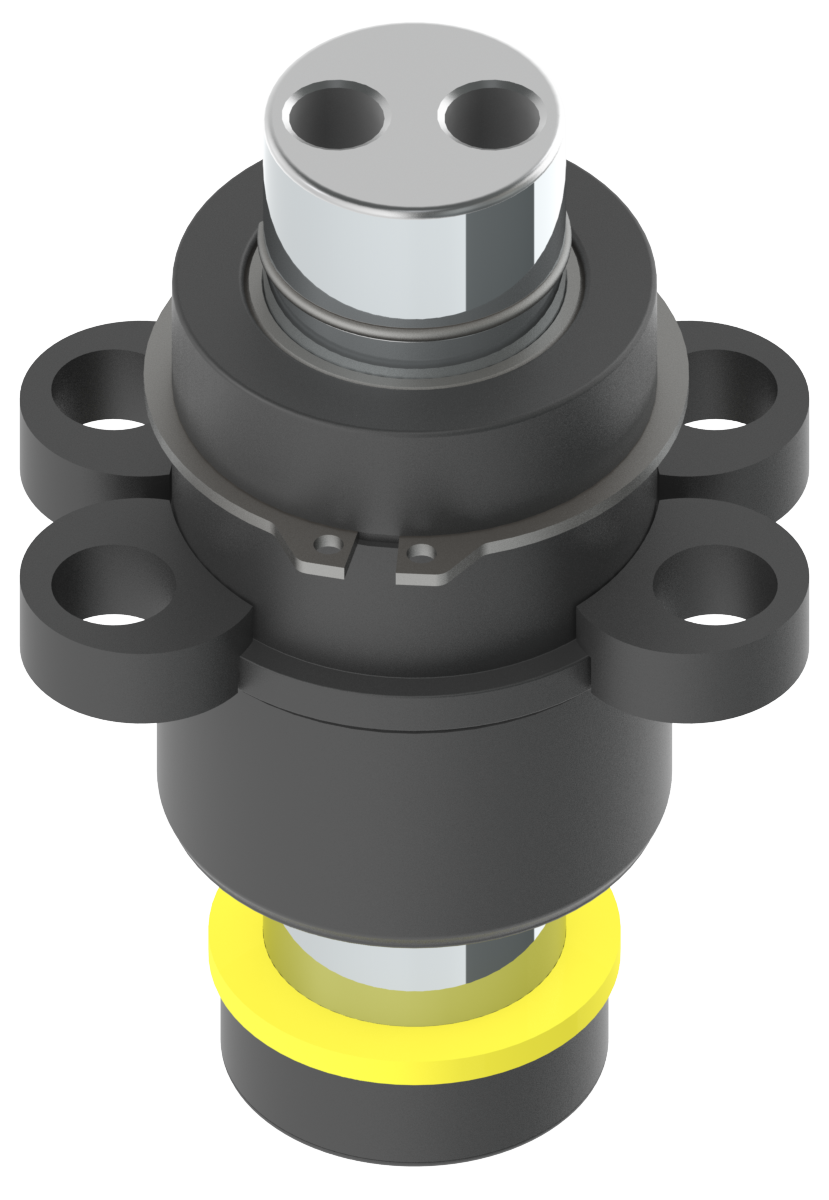

GK122-P1.5
Guide Pin Series
GK122 / 1.25"
Base Style
P (low clearance)
Base Height
1.5”
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
2.625” – 5.25” .125” increments

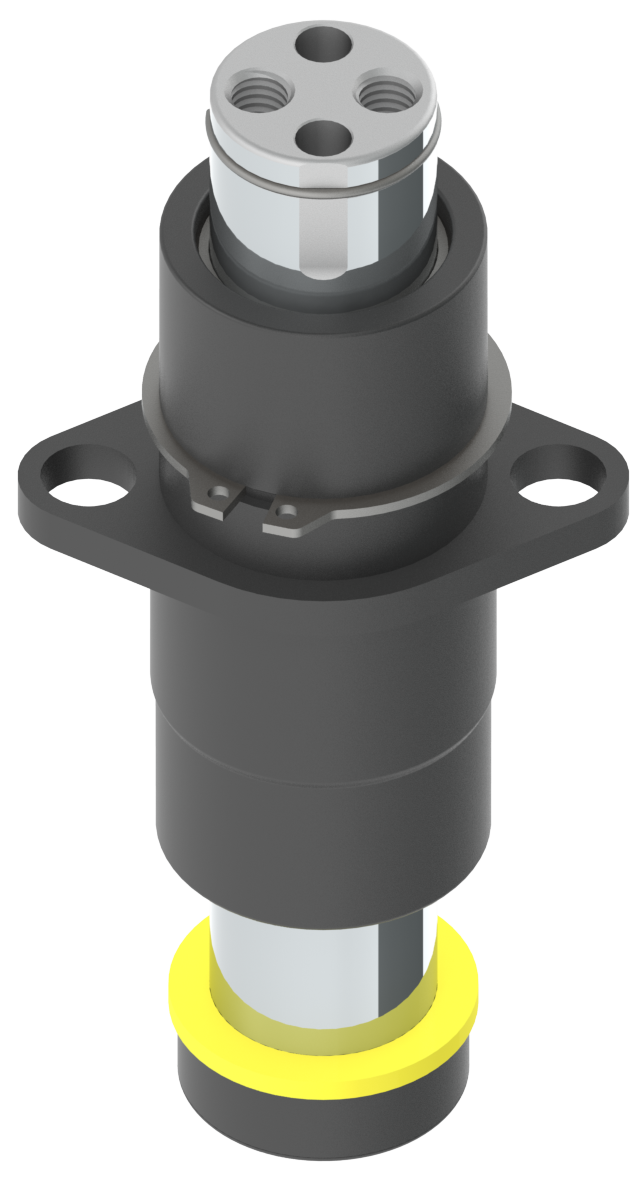

GK120-N4-2-TB
Guide Pin Series
GK120 / 1.25"
Base Style
N4-2
Bushing Length
4"
Base Height
2"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
4.875" - 10.875" .125" increments
GK120-N4-2-BP
Guide Pin Series
GK120 / 1.25"
Base Style
N4-2
Bushing Length
4"
Base Height
2"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
4.875" - 10.875" .125" increments

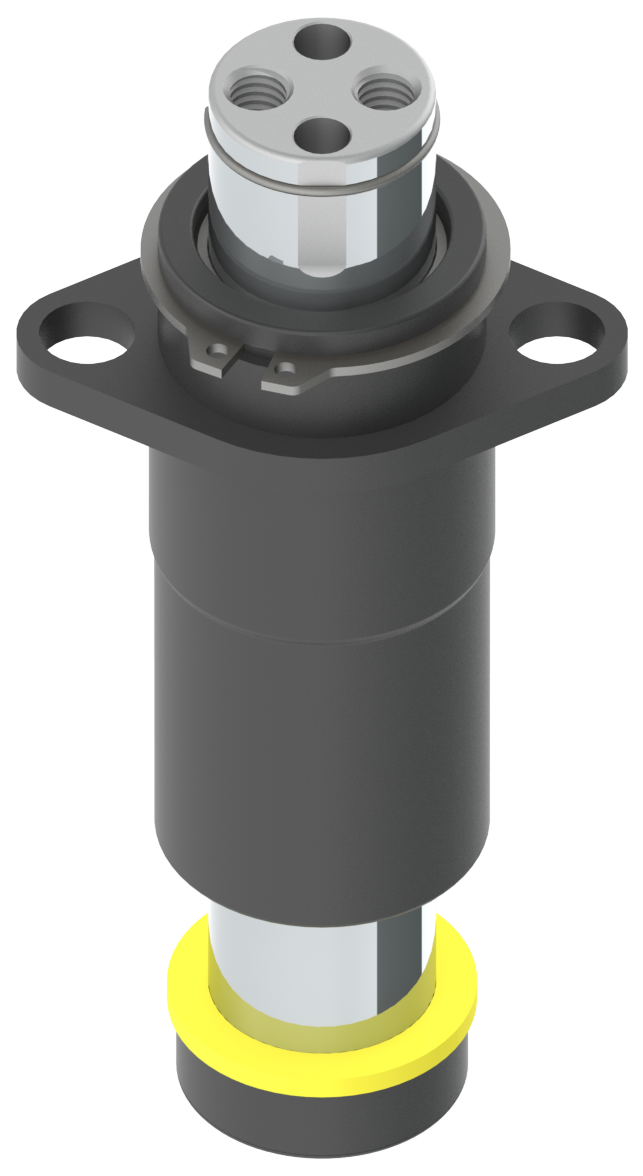

GK120-N4-1-TB
Guide Pin Series
GK120 / 1.25"
Base Style
N4-1
Bushing Length
4"
Base Height
1"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
4.875" - 10.875" .125" increments
GK120-N4-1-BP
Guide Pin Series
GK120 / 1.25"
Base Style
N4-1
Bushing Length
4"
Base Height
1"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
4.875" - 10.875" .125" increments
GK120-N3-2-TB
Guide Pin Series
GK120 / 1.25"
Base Style
N3-2
Bushing Length
3"
Base Height
2"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
3.875" - 9.625" .125" increments
GK120-N3-2-BP
Guide Pin Series
GK120 / 1.25"
Base Style
N3-2
Bushing Length
3"
Base Height
2"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
3.875" - 9.625" .125" increments

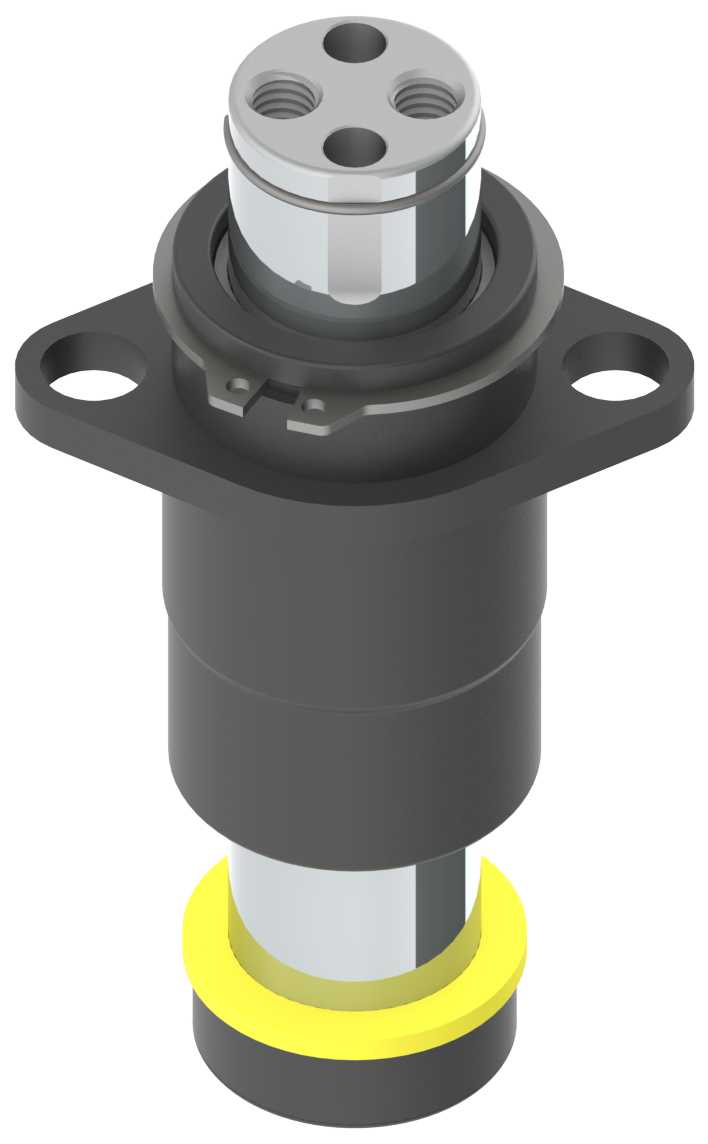

GK120-N3-1-TB
Guide Pin Series
GK120 / 1.25"
Base Style
N3-1
Bushing Length
3"
Base Height
1"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
3.875" - 9.625" .125" increments

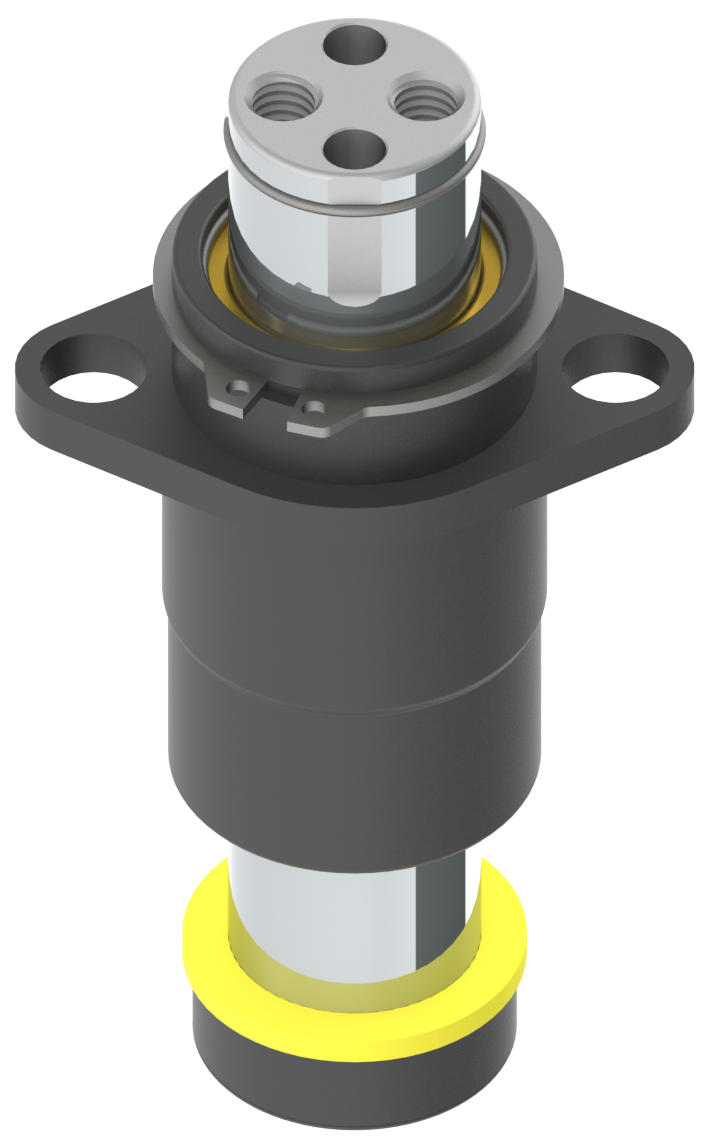

GK120-N3-1-BP
Guide Pin Series
GK120 / 1.25"
Base Style
N3-1
Bushing Length
3"
Base Height
1"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
3.875" - 9.625" .125" increments

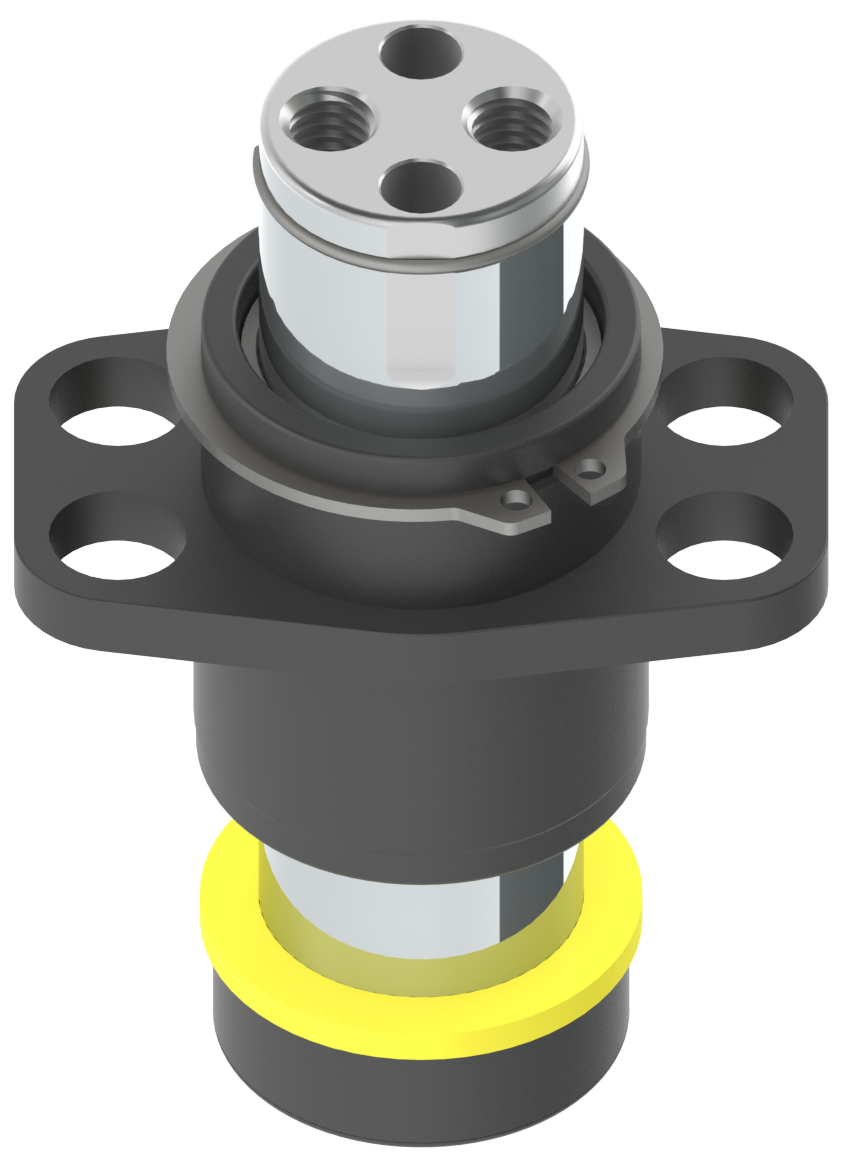

GK120-N2-1-TB
Guide Pin Series
GK120 / 1.25"
Base Style
N2-1
Bushing Length
2"
Base Height
1"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
2.875" - 6.25" .125" increments
GK120-N2-1-BP
Guide Pin Series
GK120 / 1.25"
Base Style
N2-1
Bushing Length
2"
Base Height
1"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
2.875" - 6.25" .125" increments

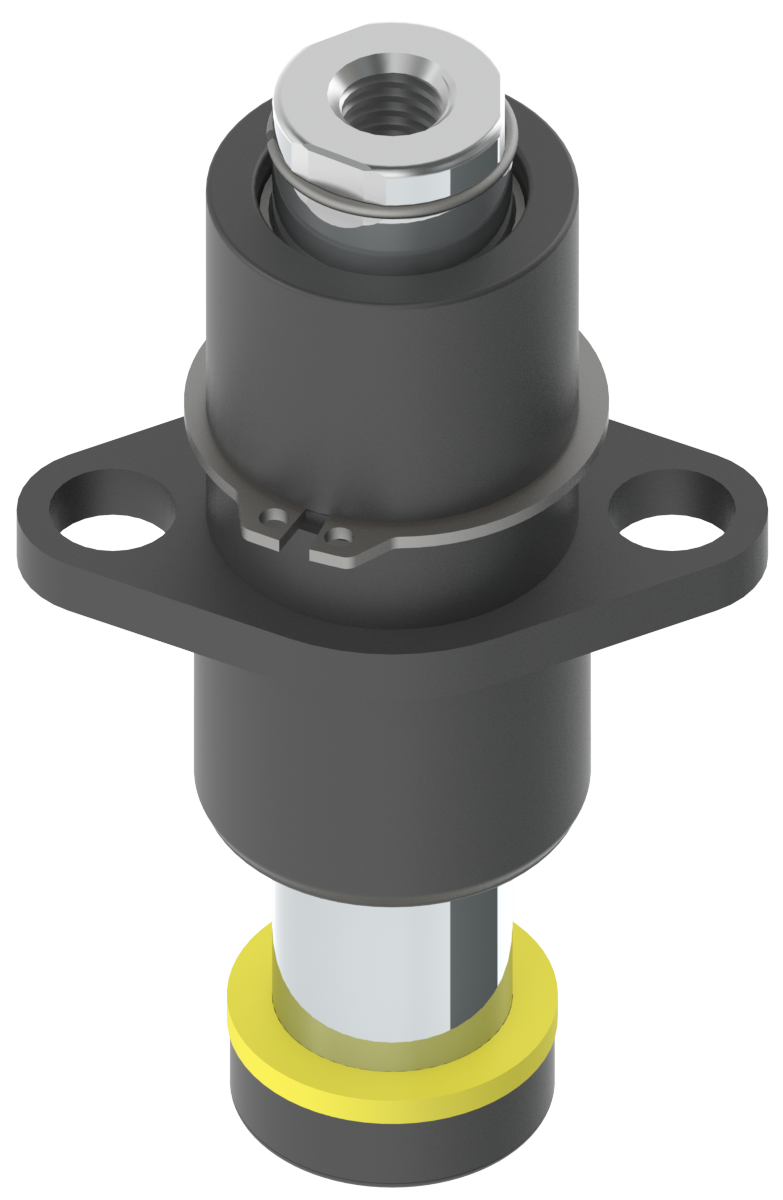

GK105-N3-2-TB
Guide Pin Series
GK105 / 1.0"
Base Style
N3-2
Bushing Length
3"
Base Height
2"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
No
Guide Pin Length
3.875" - 8.625" .125" increments
GK105-N3-2-BP
Guide Pin Series
GK105 / 1.0"
Base Style
N3-2
Bushing Length
3"
Base Height
2"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
No
Guide Pin Length
3.875" - 8.625" .125" increments
GK105-N3-1-TB
Guide Pin Series
GK105 / 1.0"
Base Style
N3-1
Bushing Length
3"
Base Height
1"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
No
Guide Pin Length
3.875" - 8.625" .125" increments

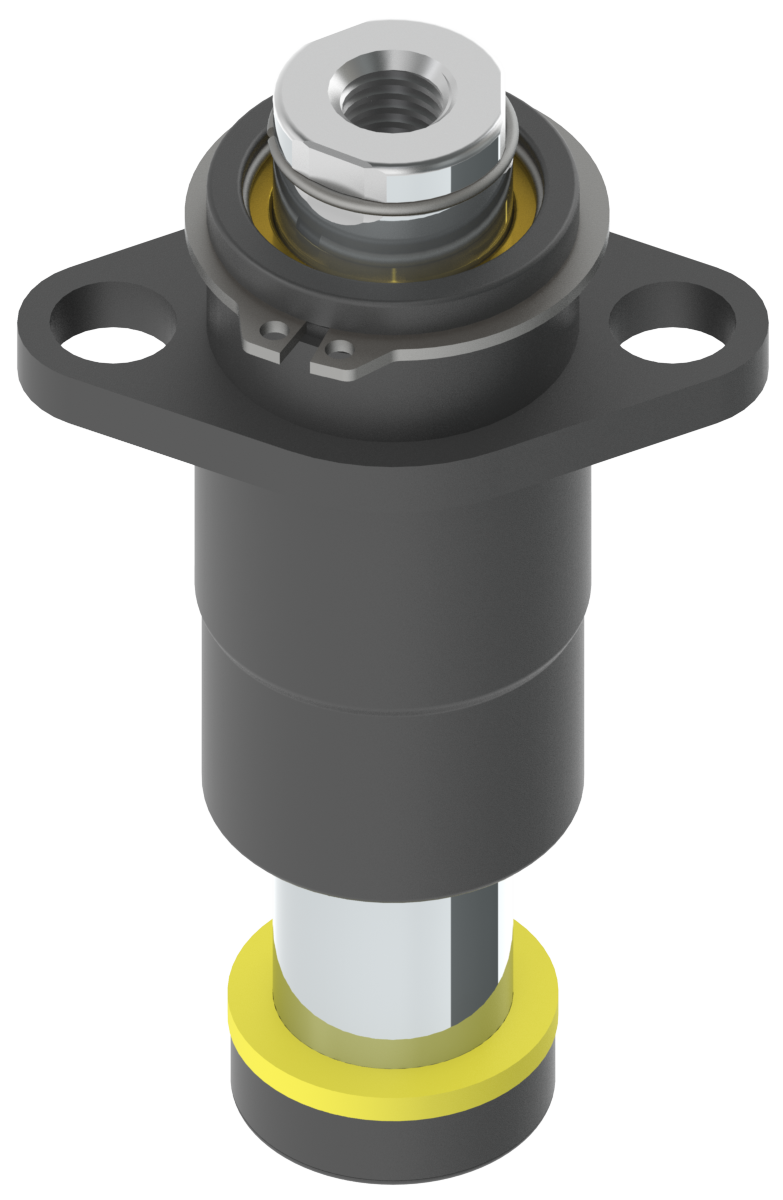

GK105-N3-1-BP
Guide Pin Series
GK105 / 1.0"
Base Style
N3-1
Bushing Length
3"
Base Height
1"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
No
Guide Pin Length
3.875" - 8.625" .125" increments

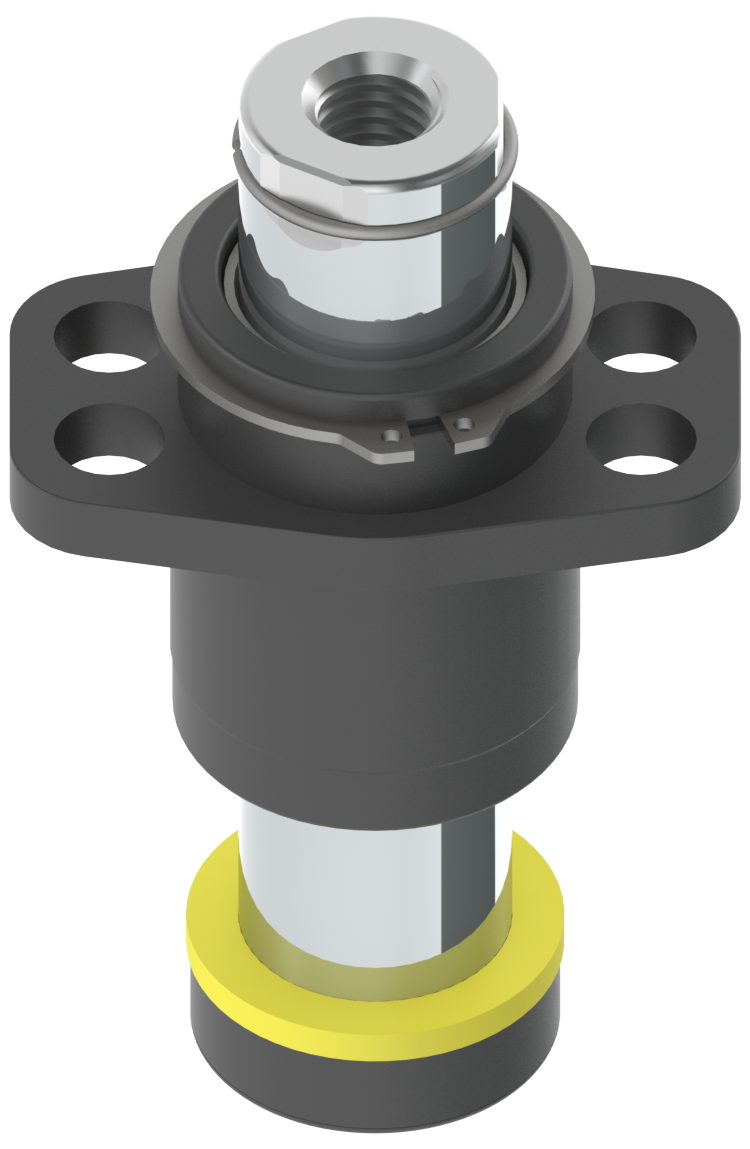

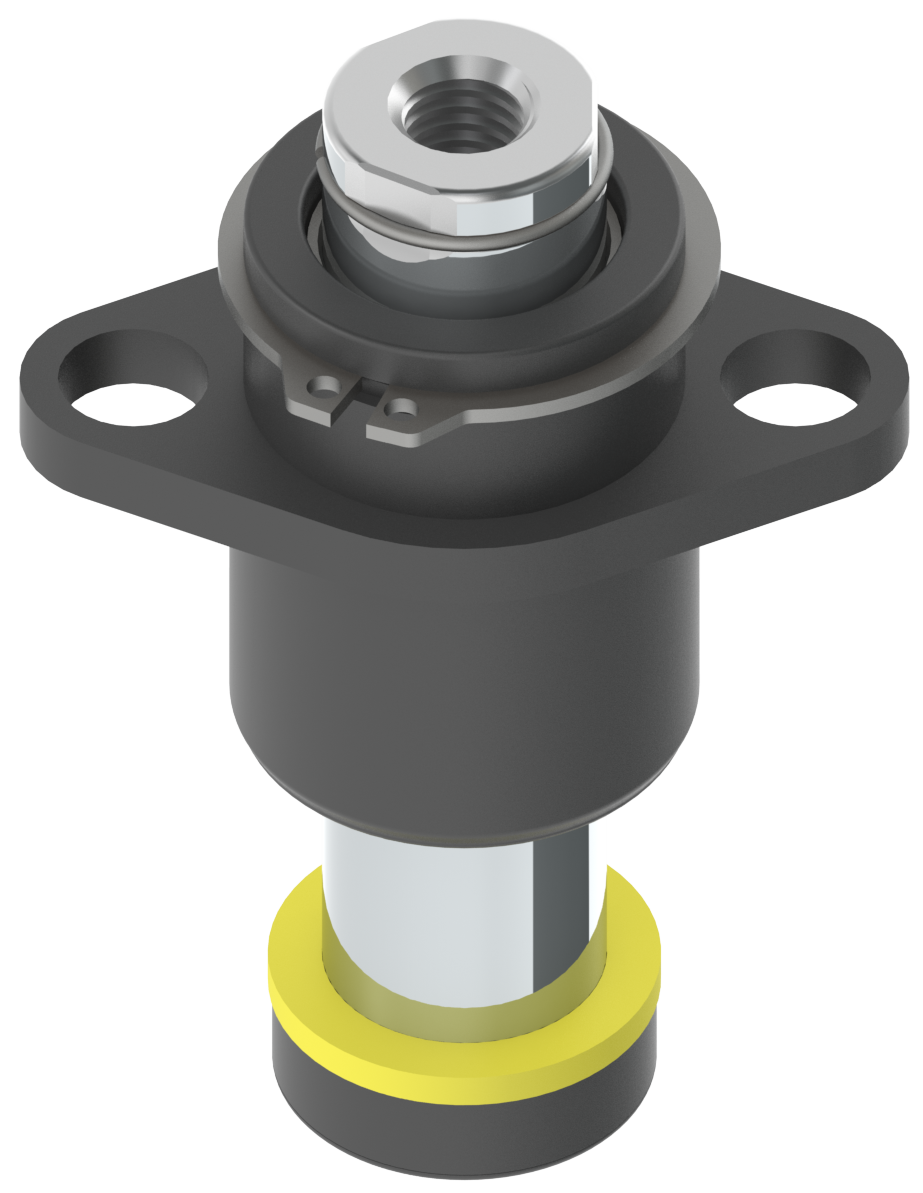

GK105-N2-1-TB
Guide Pin Series
GK105 / 1.0"
Base Style
N2-1
Bushing Length
2"
Base Height
1"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
No
Guide Pin Length
2.875" - 6.625" .125" increments
GK105-N2-1-BP
Guide Pin Series
GK105 / 1.0"
Base Style
N2-1
Bushing Length
2"
Base Height
1"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
No
Guide Pin Length
2.875" - 6.625" .125" increments

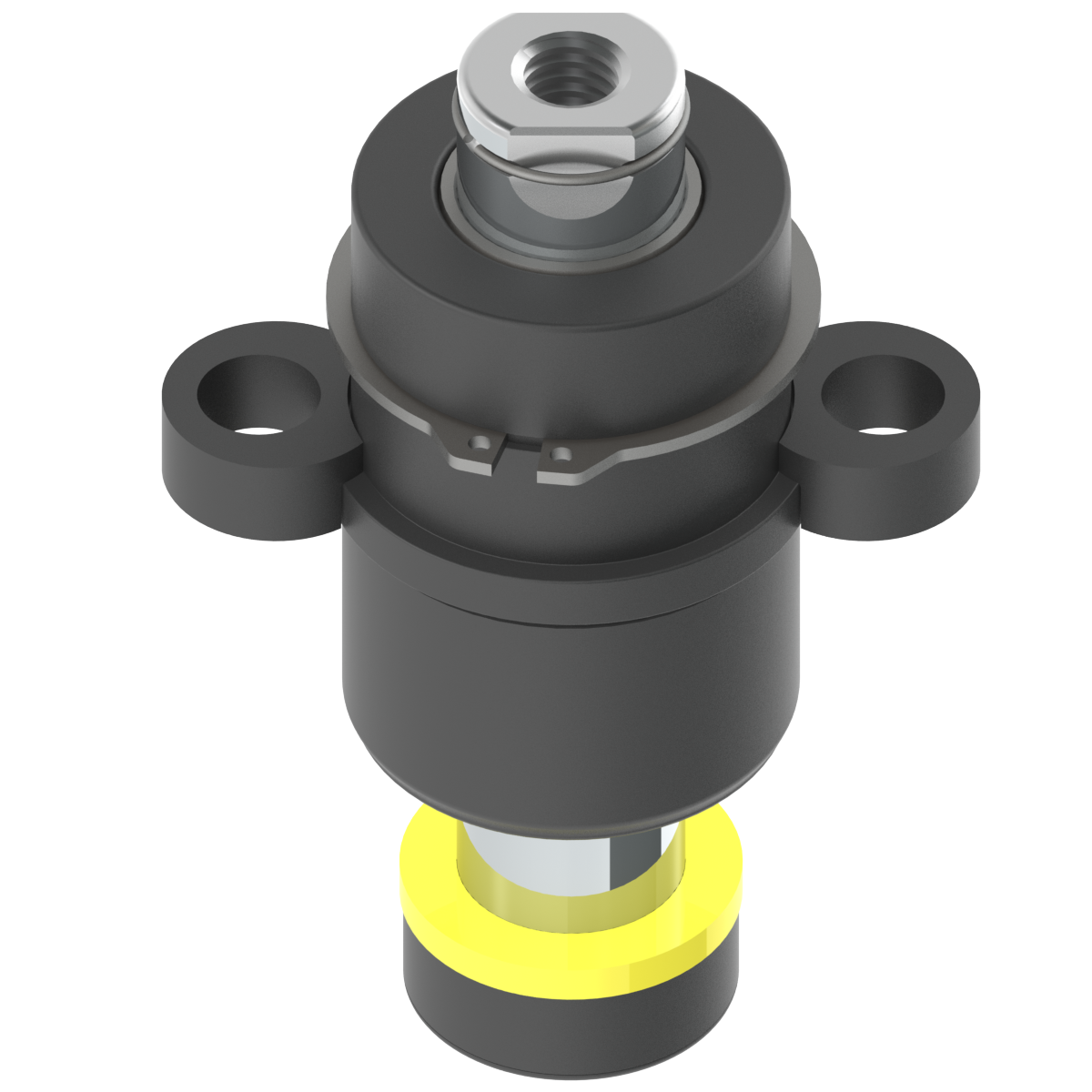

GK105-P1.5
Guide Pin Series
GK105 / 1.0"
Base Style
P (low clearance)
Base Height
1.5”
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M12 or 1/2
Locking Collar Option
No
Guide Pin Length
2.125” – 4.875” .125” increments

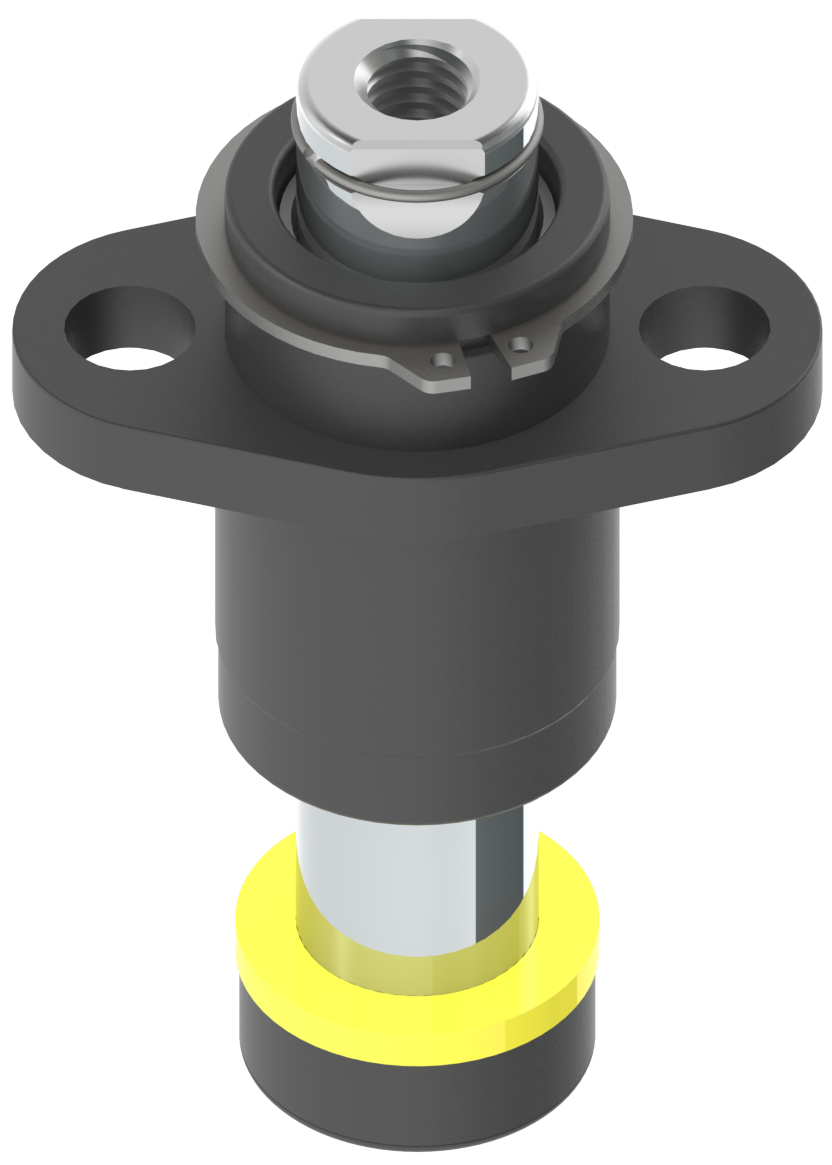

GK75-N2-1-TB
Guide Pin Series
GK75 / 0.75"
Base Style
N2-1
Bushing Length
2"
Base Height
1"
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
2.875" - 6.25" .125" increments

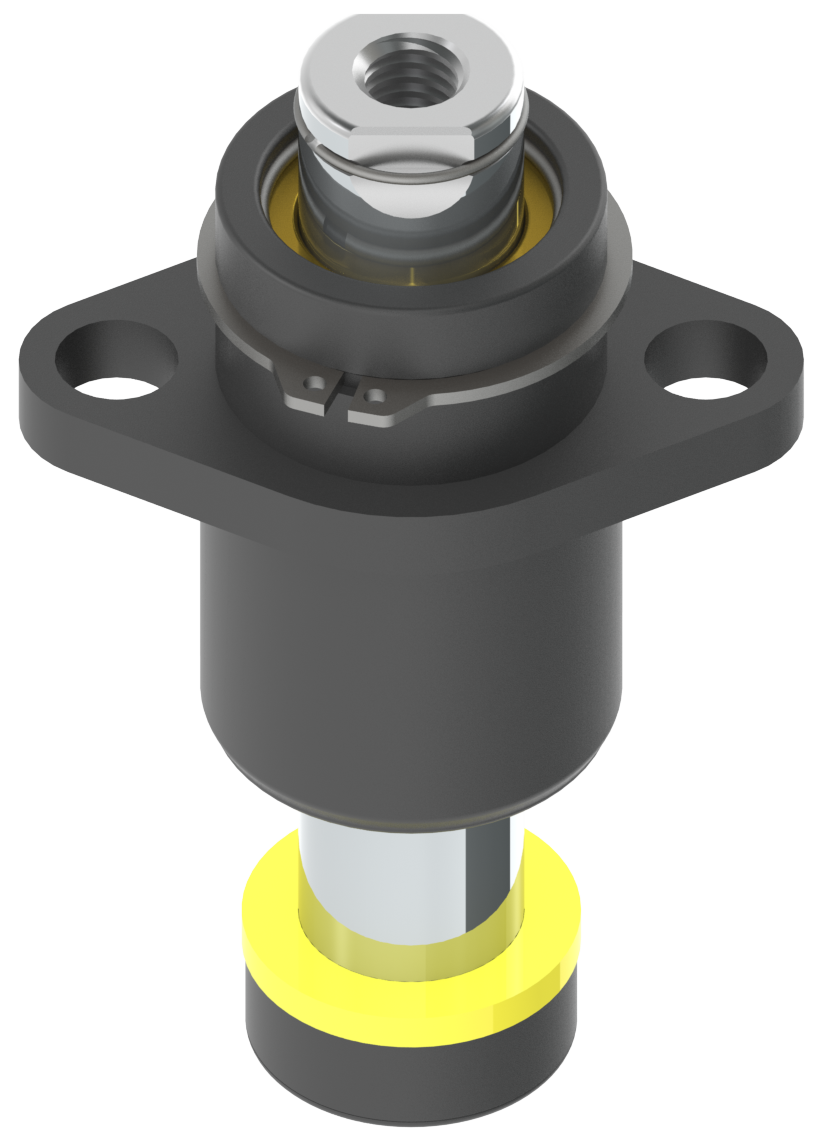

GK75-N2-1-BP
Guide Pin Series
GK75 / 0.75"
Base Style
N2-1
Bushing Length
2"
Base Height
1"
Bushing Type
BP - Bronze / Graphite Plugs
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
2.875" - 6.25" .125" increments
GK75-P1.25
Guide Pin Series
GK75 / 0.75"
Base Style
P (low clearance)
Base Height
1.25”
Bushing Type
TB - PTFE / Bronze
Guide Pin Fastener Size
M10 or 3/8
Locking Collar Option
No
Guide Pin Length
1.875” – 4.0” .125” increments
