Application

Round Stripper Pilot Assemblies

Used to locate and eject thin/soft metal stock in metal stamping dies.

Innovation

Locates and Ejects All-in-One Assembly

Our fully integrated “off the shelf” Pilot Assemblies locate and eject metal stock. They’re designed and manufactured for robust and superior long-life production performance.

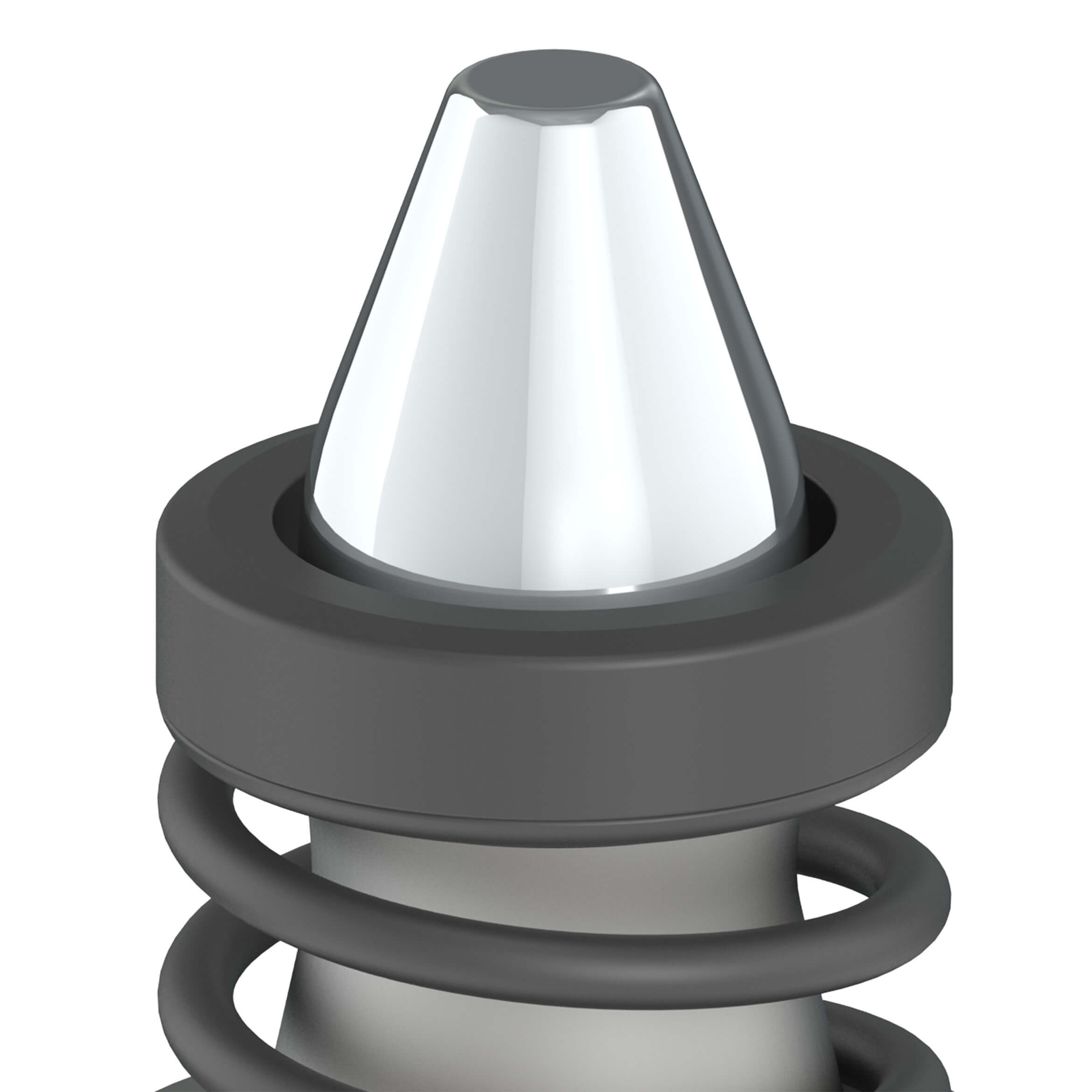

Location and ejection 2

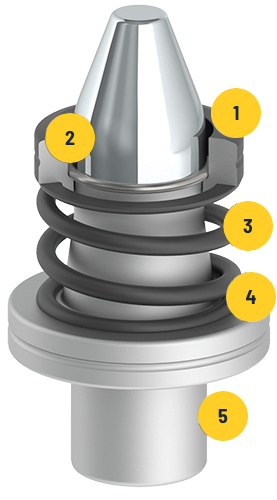

Round Stripper Design Features
(for thin/soft stock)

  1. Large stripper surface area
  2. Optimal stripping close to pilot
  3. Long-lasting spring
  4. Self-contained assembly
  5. Small footprint

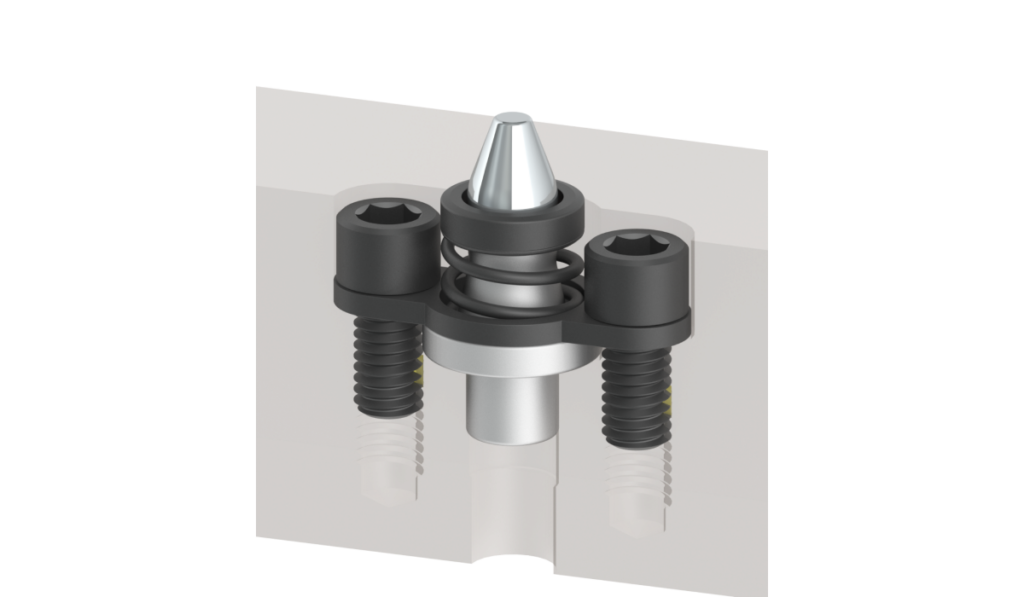

Pilot Assemblies SRF cross section

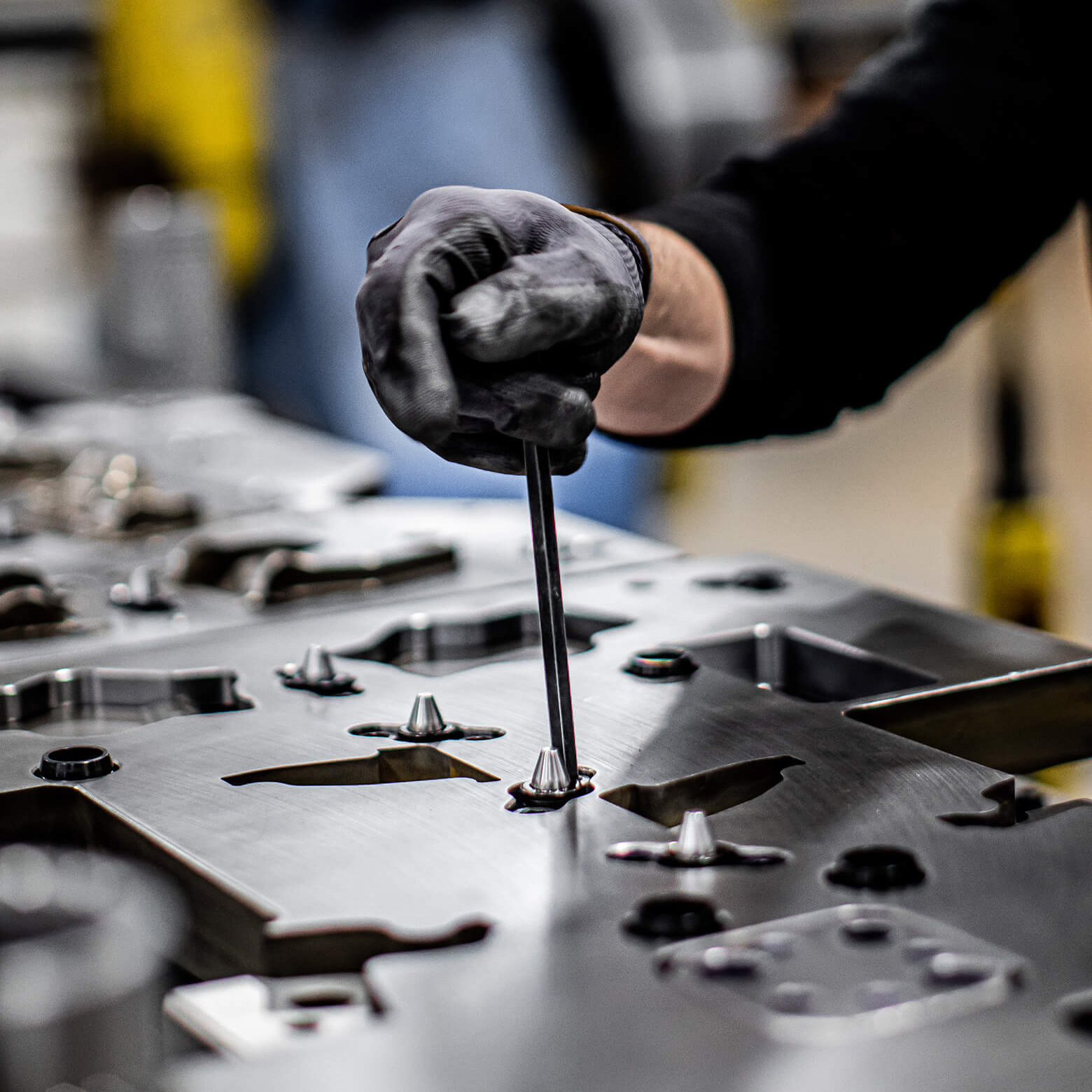

Employee adjusting pilot assemblies

Benefits

Superior performance maximizes uptime
Designed to last the life of your die using a long-life spring and ejection close to the pilot.

Global design commonality
Nominal sizes in both English and metric allow for one pilot style in all your global tooling.

Savings in design
All-in-one assembly speeds up design process and drops in your die fast.

We require Standard Lifters’ Pilots in all our dies built all over the world. They provide superior performance and commonality across all tooling and designs.

Sr. Tooling Engineer, Tier 1 Stamper

Using Standard Lifters’ Pilots, we rarely encounter parts wanting to stick and hang up on Pilots that are in the upper pads of the die. Surrounding your Pilots with built-in ejection was quite genius.

Shop Foreman, Tooling Supplier

Options

Diameters

10mm

13mm

16mm

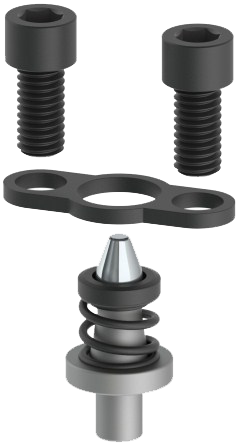

.375"

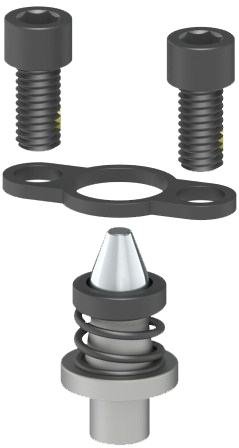

.500"

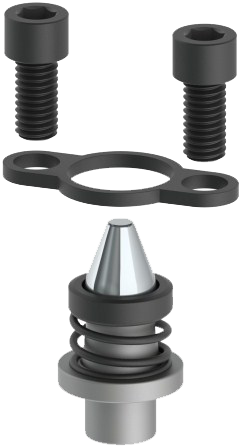

.625"

More Details

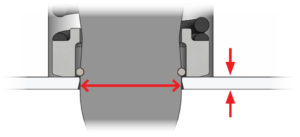

Maximum Stock Thickness — Round Stripper Style

Pilot Dia. Max. Stock Thickness Pilot Dia. Max. Stock Thickness
.375” .040” 10mm 1.0mm
.500” .060” 13mm 1.5mm
.625” .080” 16mm 2.0mm

Mounting styles

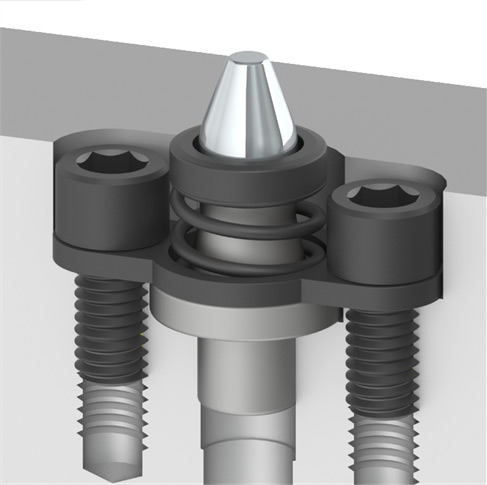

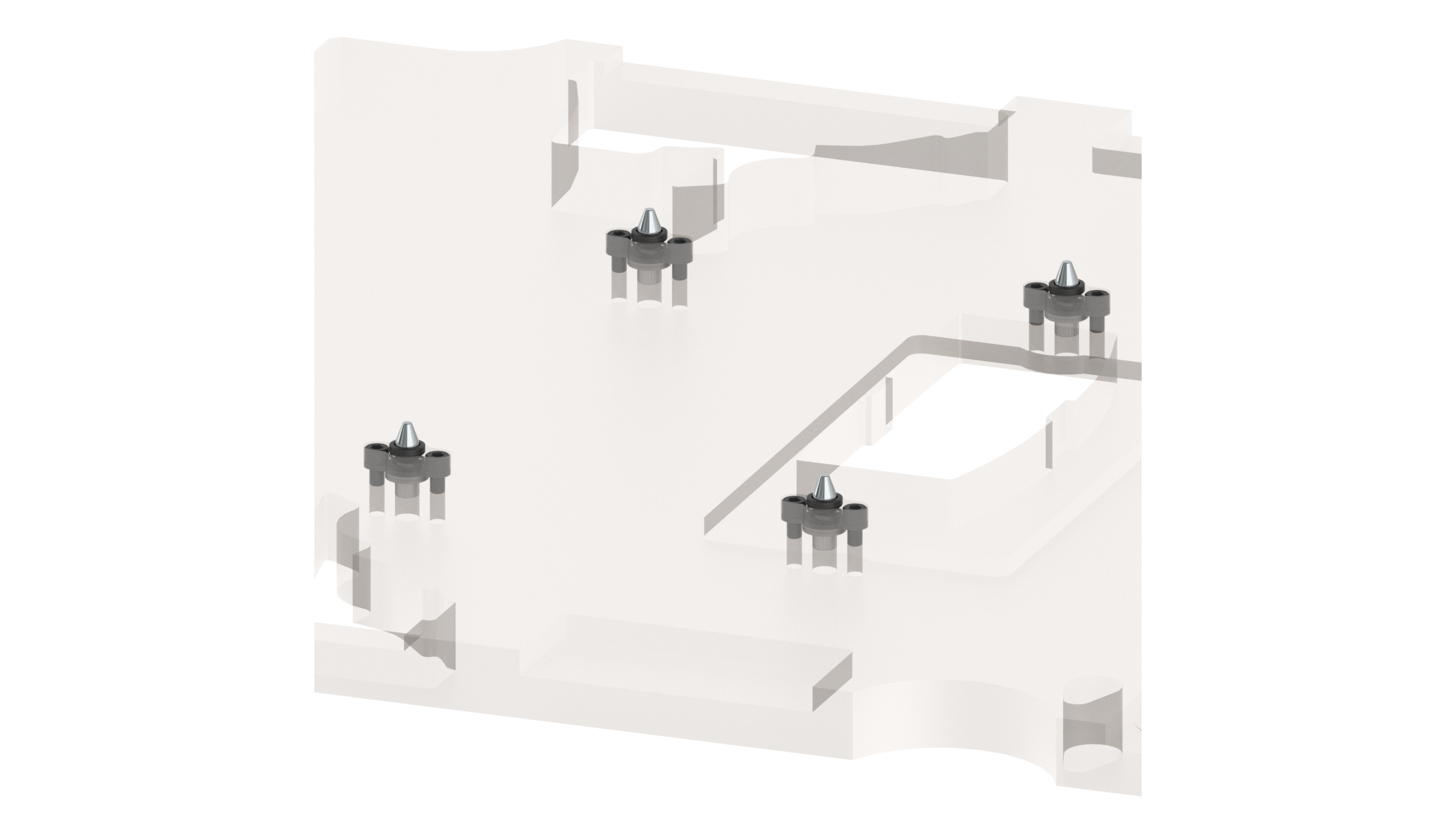

In Pad—Fasteners

Pilot assembly ejector in stripper pad

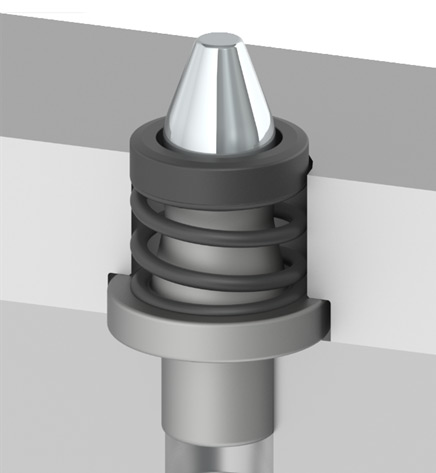

In Window

Inside of pilot piece with the black ejector in assembly
See all technical data

Pricing

$50.00

PA-10mm/.375"

$52.00

PA-13mm/.500"

$56.00

PA-16mm/.625"

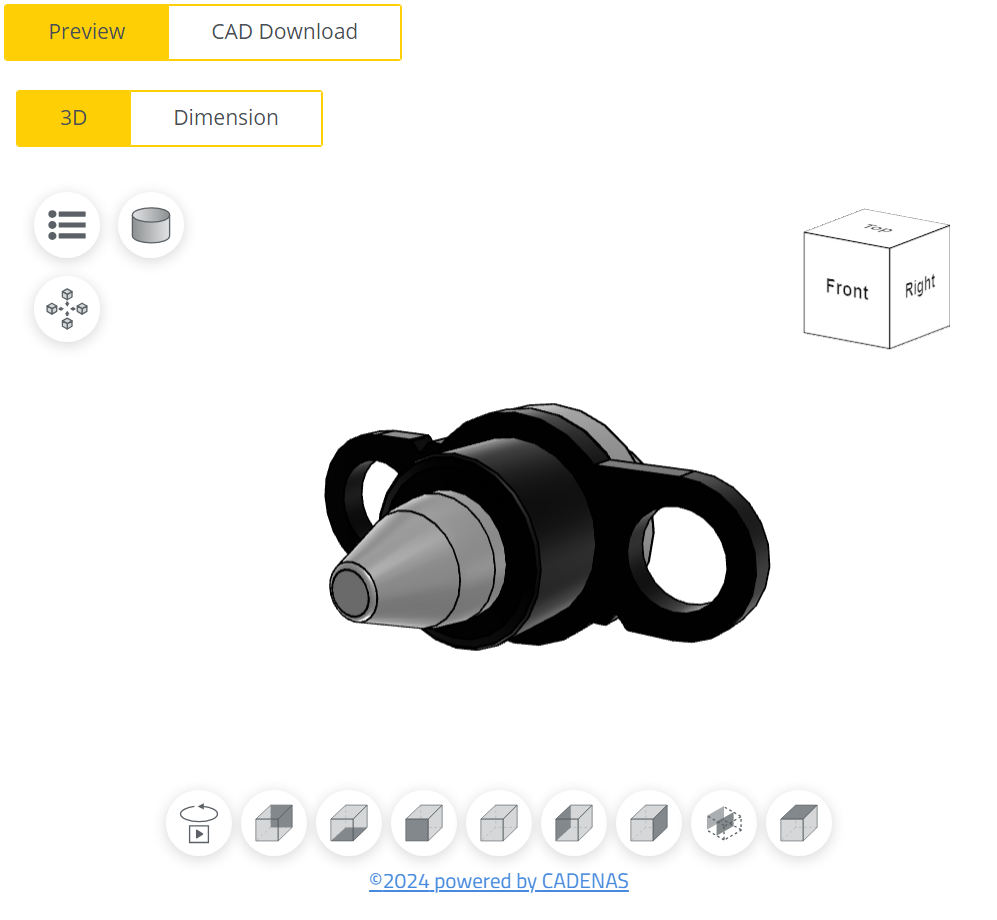

Configure Product

Preview and download the CAD file you need with our product configuration tool.

See product configuration
