Application

Fastener Mounted Pilots

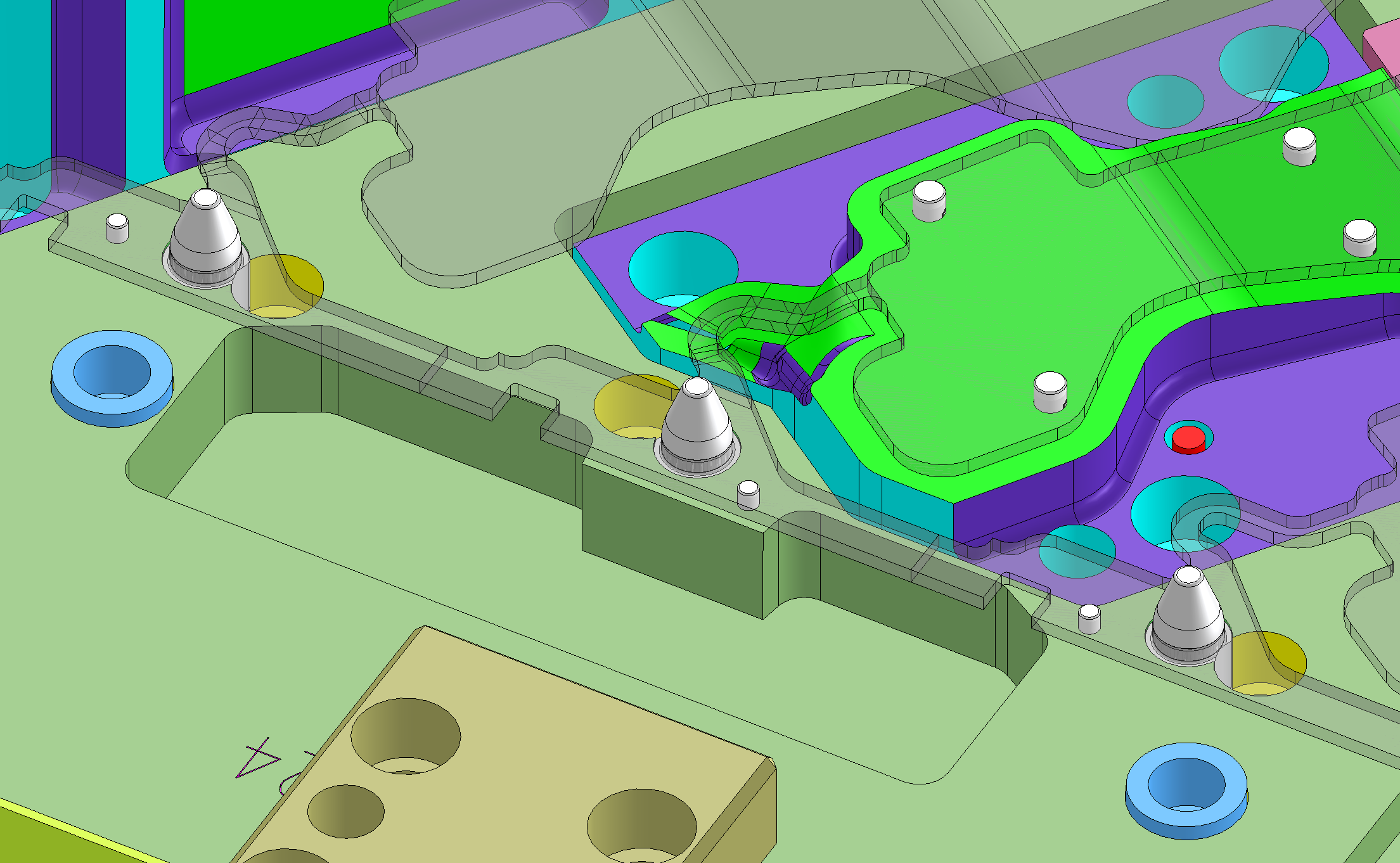

Used to locate metal stock in metal stamping dies.

Innovation

Great Option for Narrow Applications without an Insert

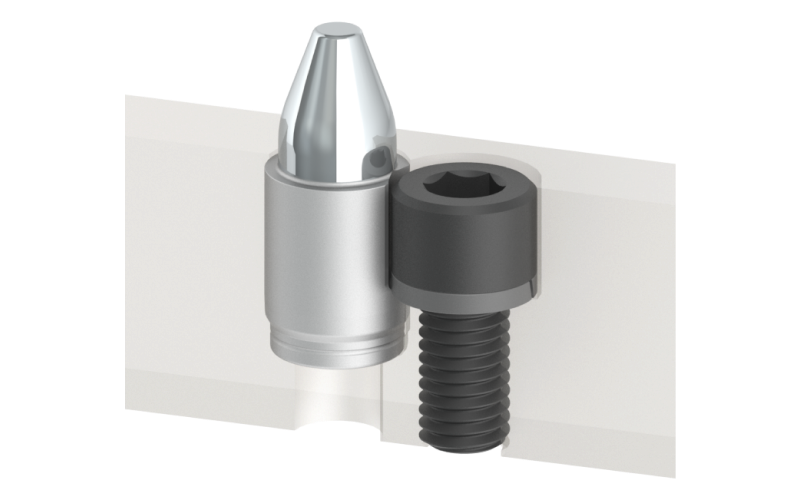

Our fastener mounted Pilot doesn’t require an insert and with easy machining installs directly into the pad.

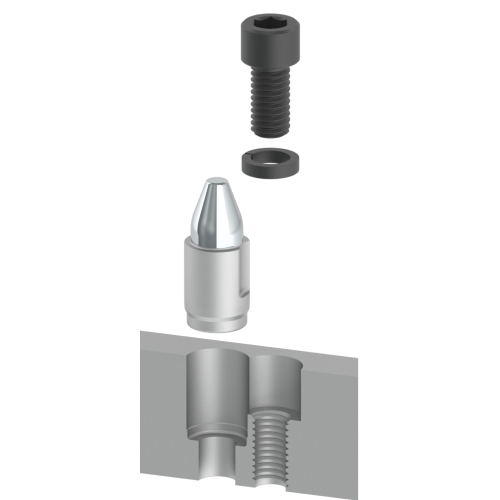

Fastener Mounted Pilot Design Features

  • No need for an insert
  • No need to access the back side of the pad
  • Easy to machine an accurate bore diameter (using a ream if desired)
  • Good sized fastener
  • Fastener and lock washer provided

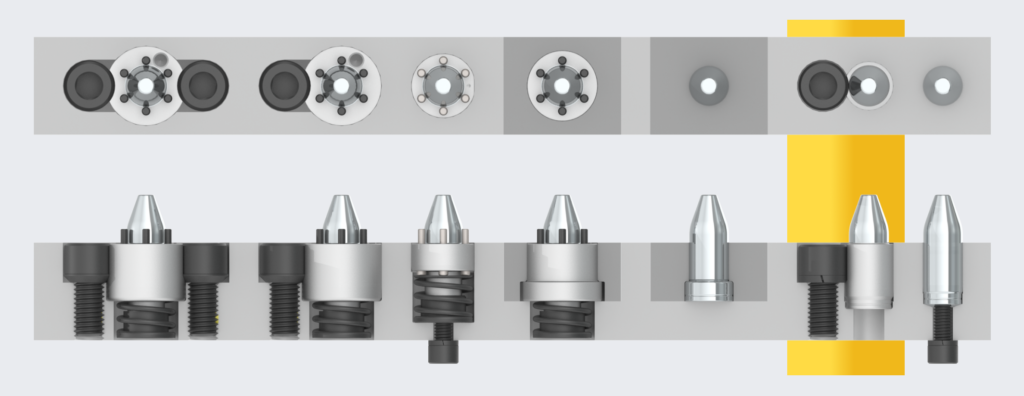

Space Comparison

See all technical data

Options

Diameters

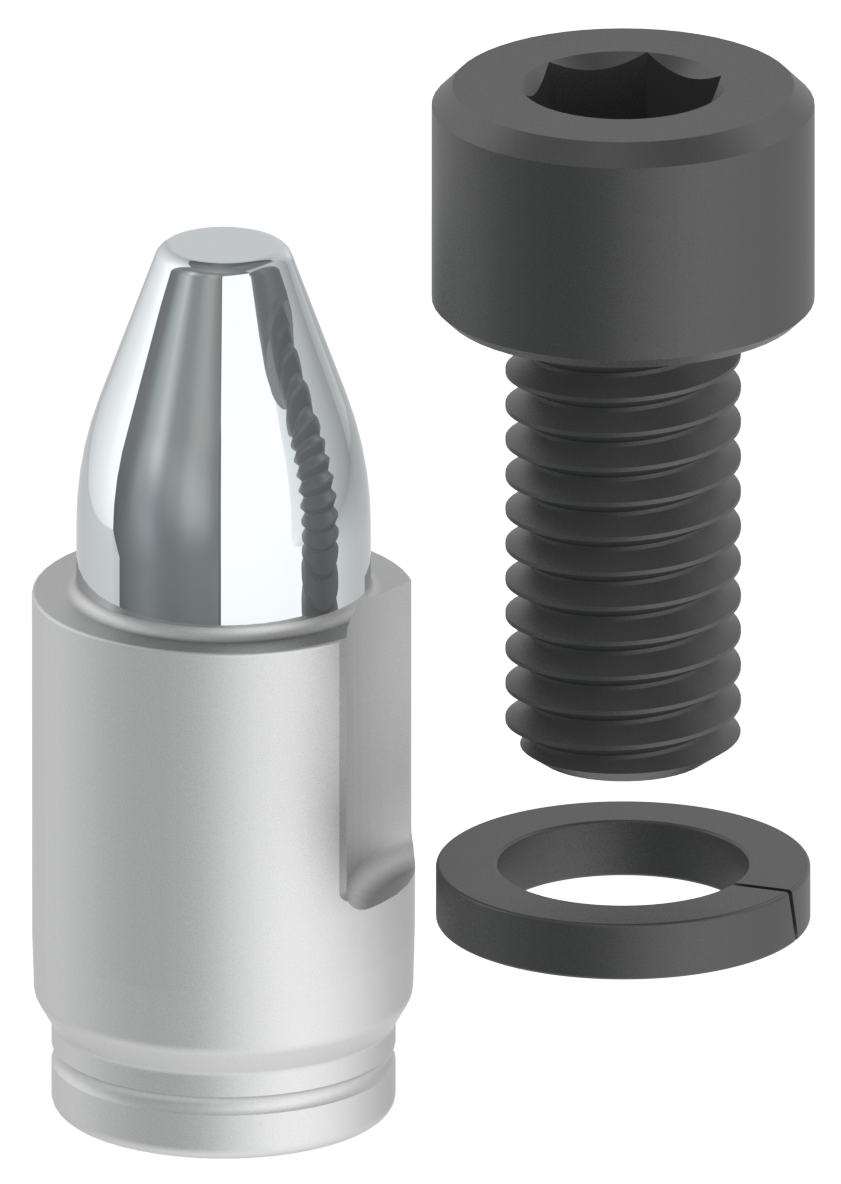

10mm

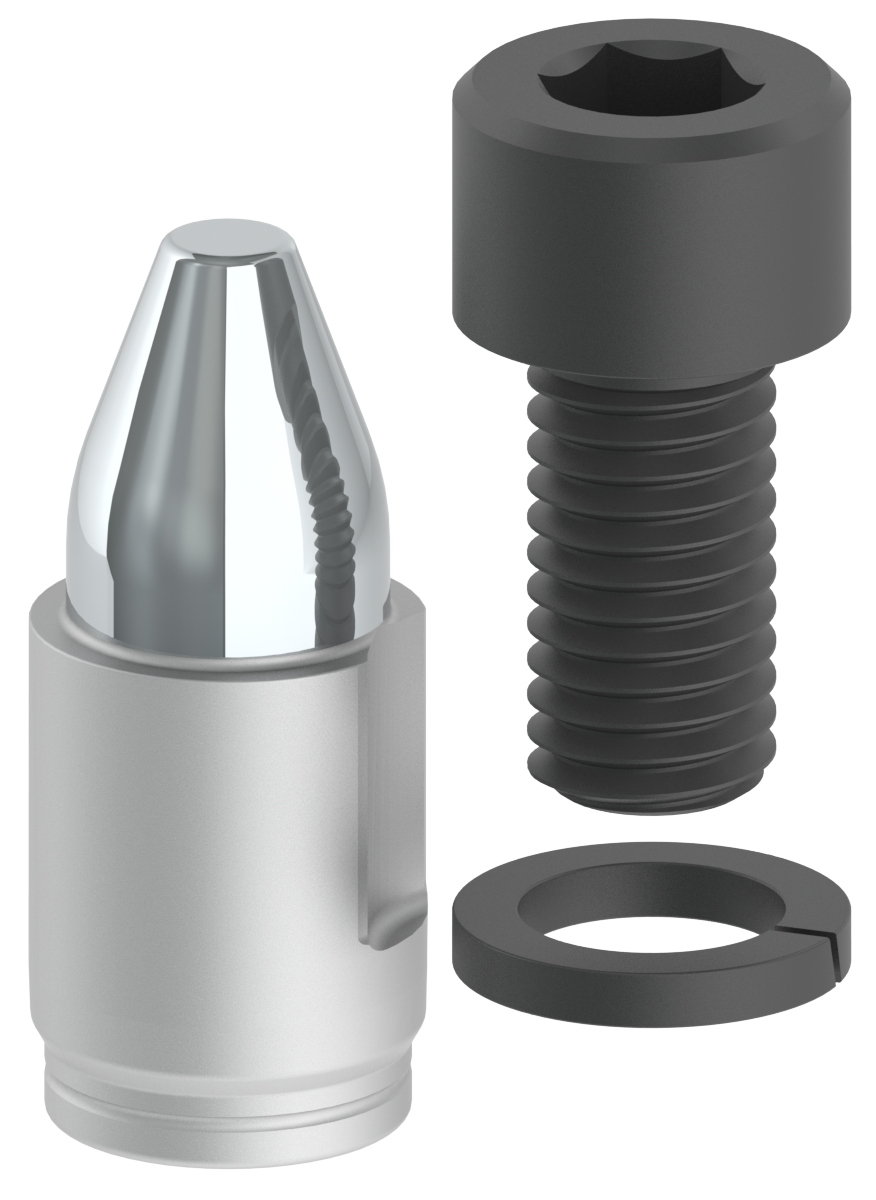

13mm

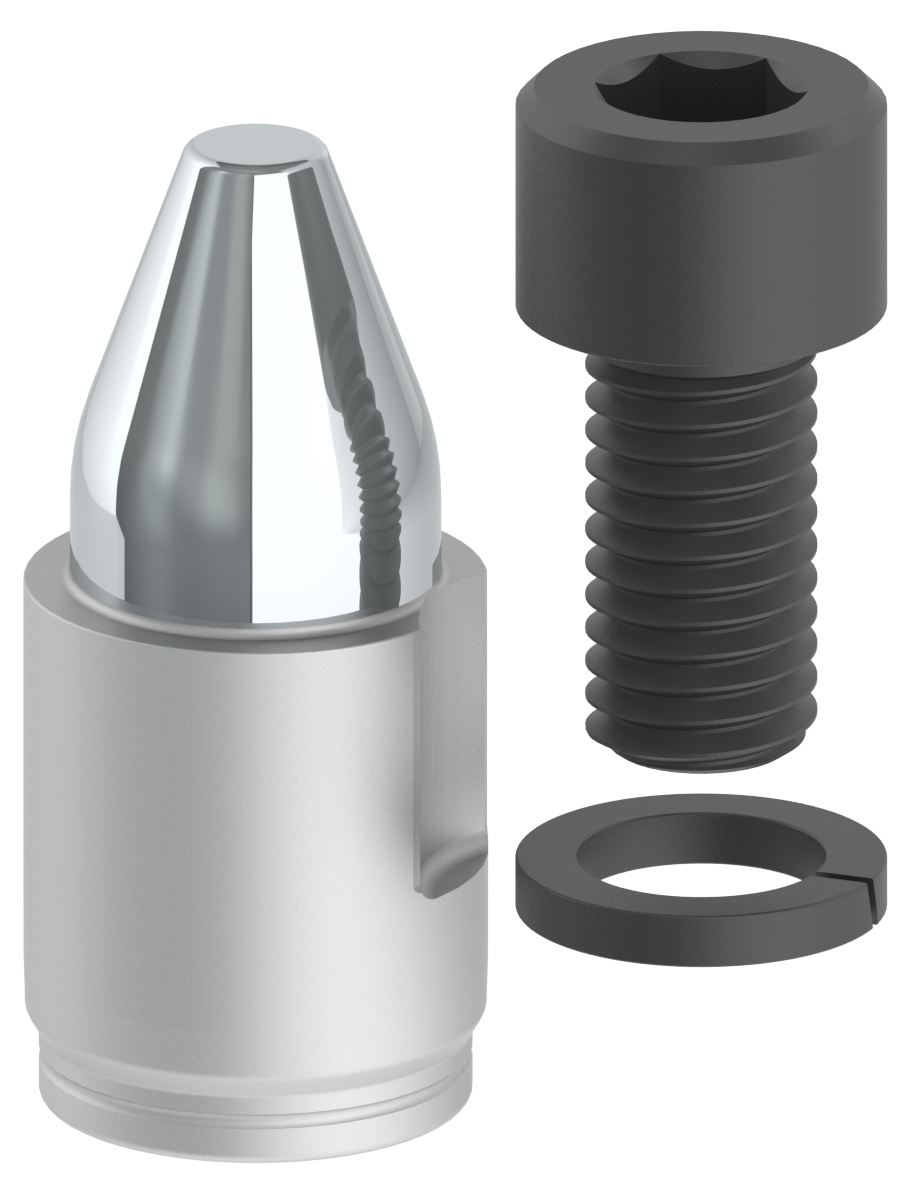

16mm

.375"

.500"

.625"

See all technical data

Pricing

$30.00

PA-10mm/.375"

PA-10mm/.375"

$32.00

PA-13mm/.500"

PA-13mm/.500"

$35.00

PA-16mm/.625"

PA-16mm/.625"

Configure Product

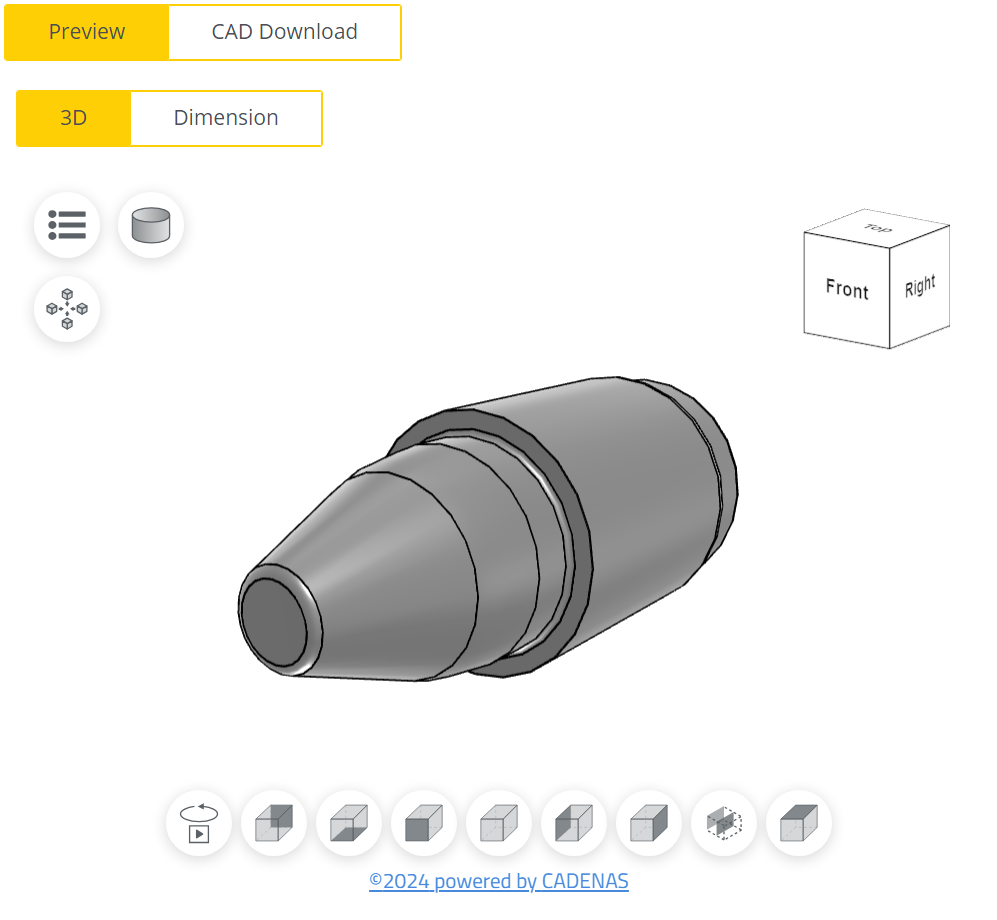

Preview and download the CAD file you need with our product configuration tool.

See product configuration
