Application

Back Tap Pilots

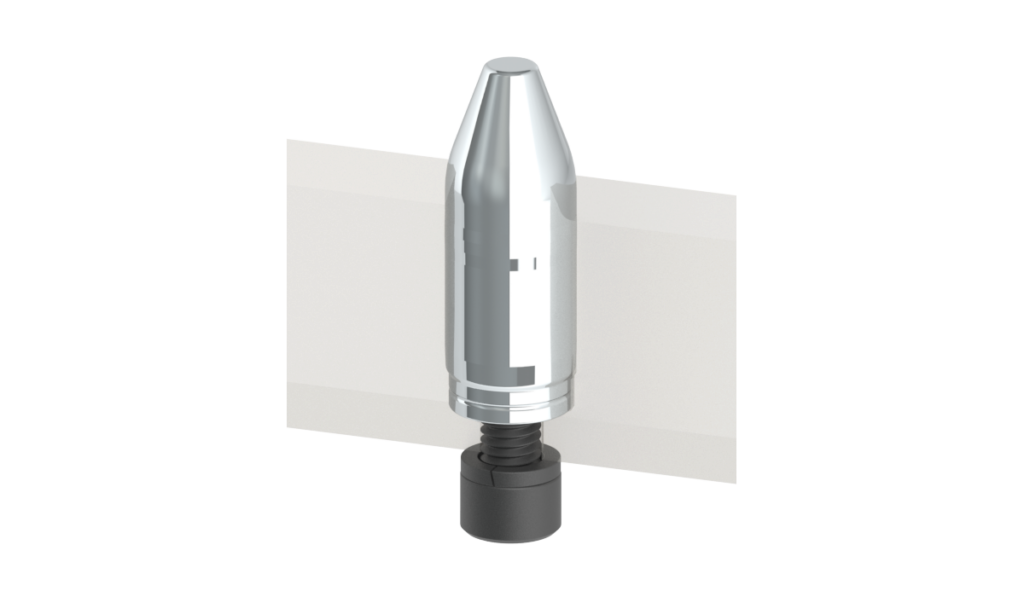

Used to locate metal stock in metal stamping dies.

Innovation

Off the shelf availability in 10mm, 13mm, 16mm and English equivalent sizes.

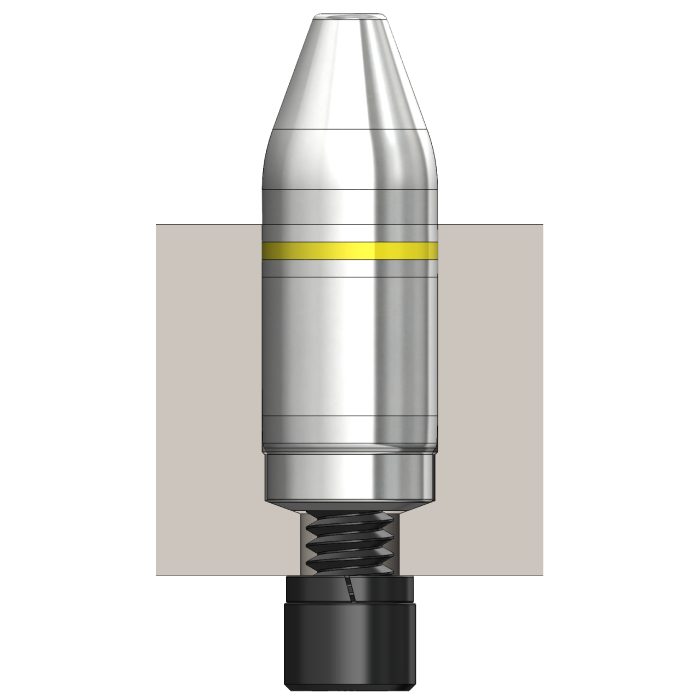

Integrated “Press Ring” ensures a secure fit. The upper portion of pilot body is slightly larger which offers a more secure fit and ensures the pilot doesn’t rotate during assembly/disassembly. Not for use in hardened details.

Drill Ream

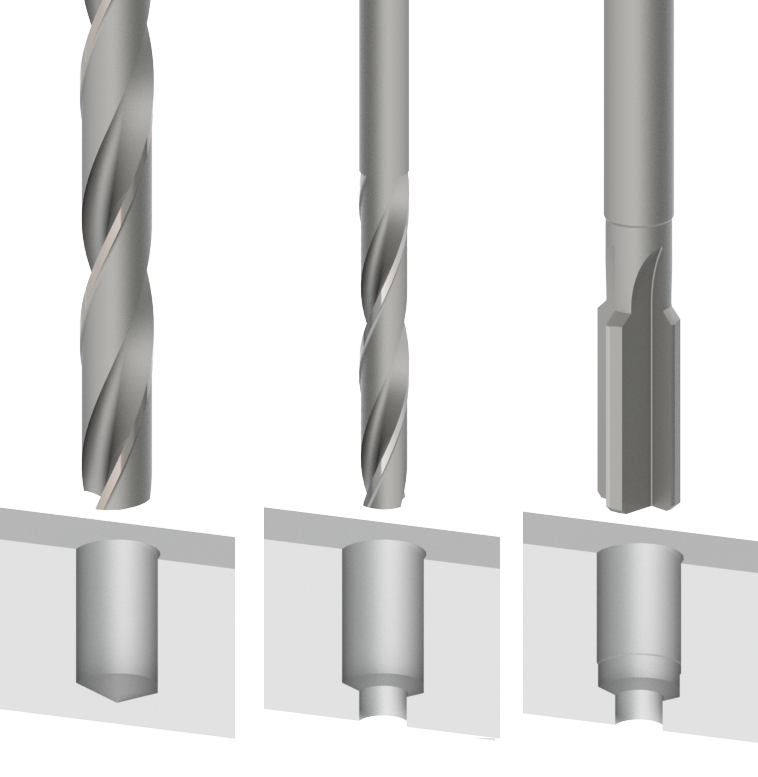

Easy machining—No Milling— its as simple as Drill, Drill, Ream.

Reaming provides a consistent diameter and straight wall for a reliable fit.

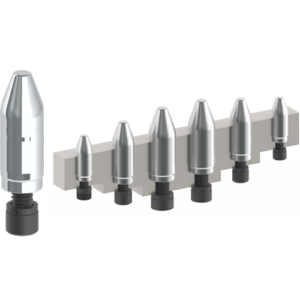

Space Comparison

See all technical data

Options

Diameters

10mm

13mm

16mm

.375"

.500"

.625"

See all technical data

Pricing

$30.00

PA-10mm/.375"

PA-10mm/.375"

$32.00

PA-13mm/.500"

PA-13mm/.500"

$35.00

PA-16mm/.625"

PA-16mm/.625"

Configure Product

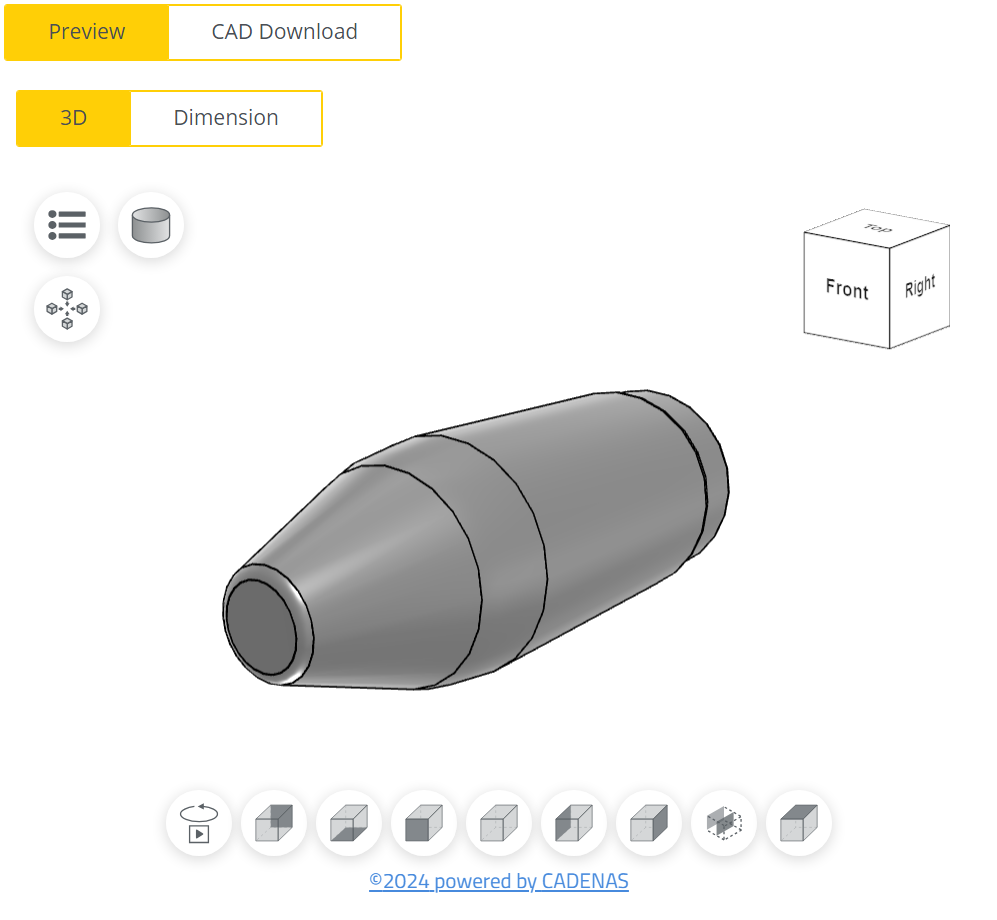

Preview and download the CAD file you need with our product configuration tool.

See product configuration
