Application

Tight Space Pilot Assemblies

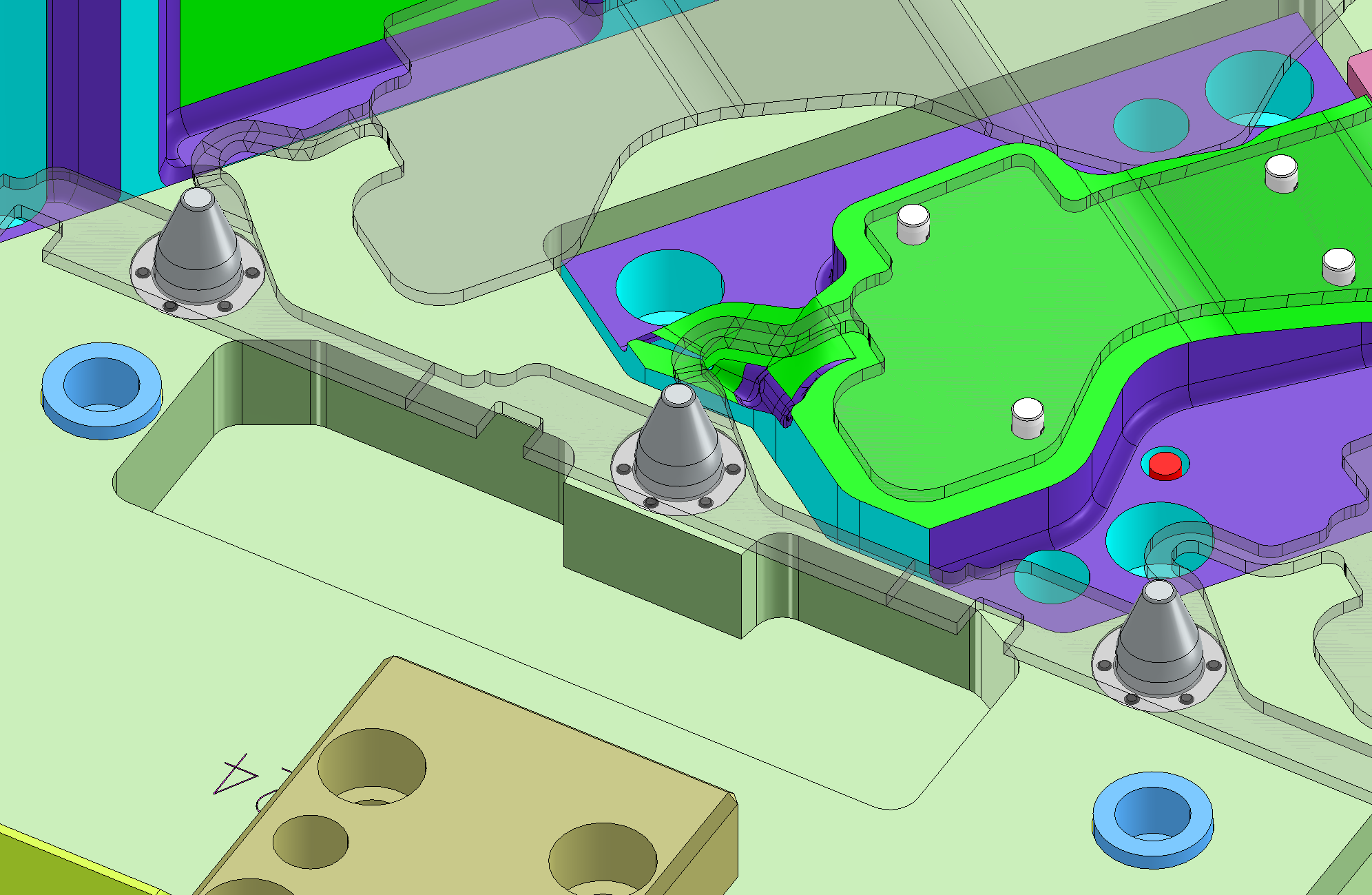

Used to locate and eject heavy duty metal stock in metal stamping dies.

Innovation

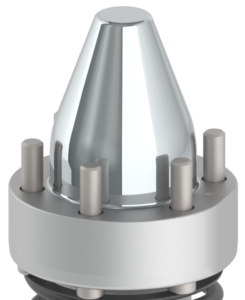

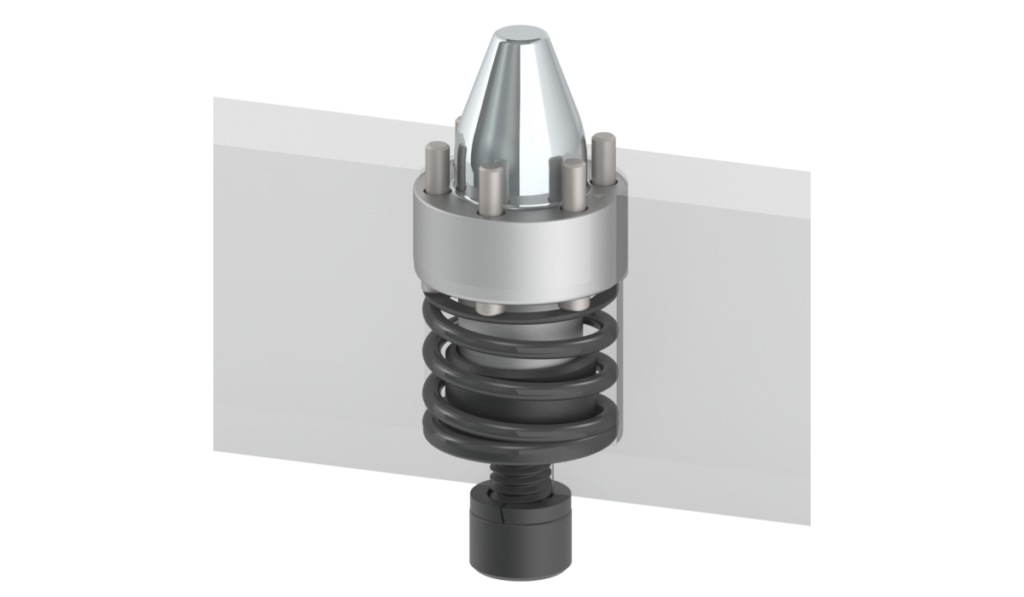

Locates and Ejects All-in-One Assembly

Our fully integrated “off the shelf” Pilot Assemblies locate and eject metal stock. They’re designed and manufactured for robust and superior long-life production performance.

Design Features

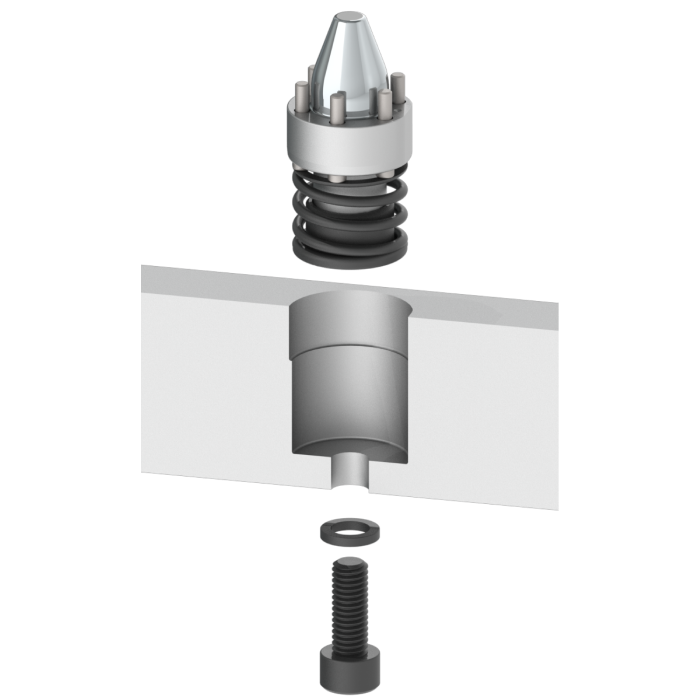

  • A flat provides anti-rotation during fastener tightening and loosening
  • Machining of locating bore and flat allows for large common endmill (1/2″)
  • Lock washer provided

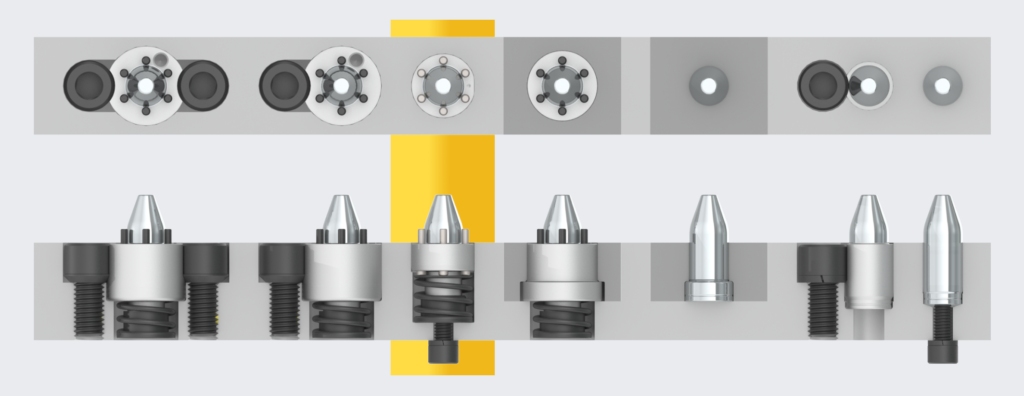

Space Comparison

See all technical data

Options

Diameters

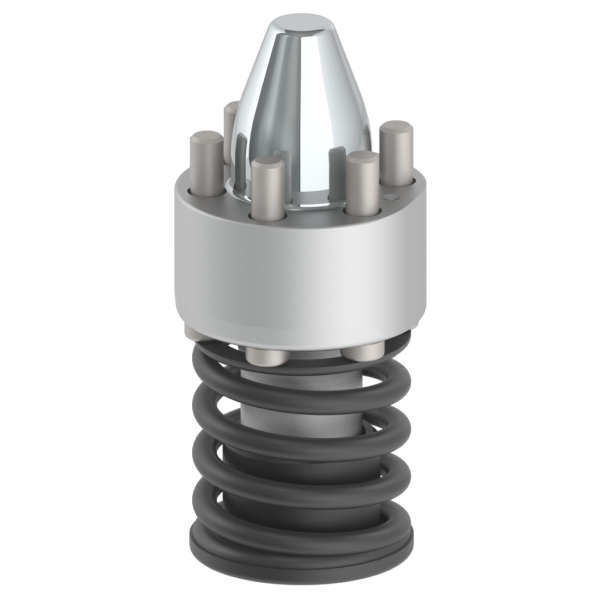

10mm / .375"

Pilot assembly with red stripe

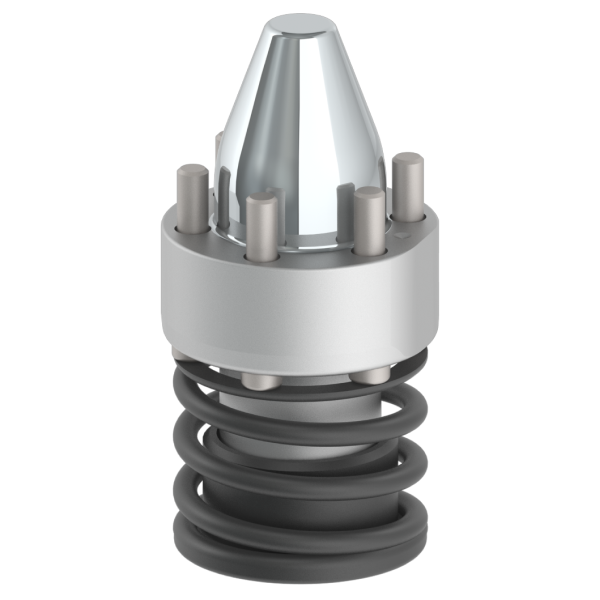

13mm / .500"

Pilot assembly with red stripe

16mm / .625"

Pilot assembly with red stripe

More Details

Choose a proper Pilot Diameter based on the Stock Thickness

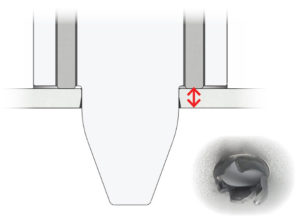

Thickness labeled by red arrows of plate

Stock Thickness in relationship to the Pilot Diameter is important for 2 main reasons.

  1. To provide enough locating surface area, based on land length and diameter, between the pilot and the stock to effectively locate the stock.
  2. To provide a robust assembly that reduces the potential of the Pilot assembly being damaged during common miss-hits/misfeeds where the pilot is required to pierce and/or form the stock.

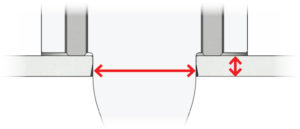

Maximum Stock Thickness — Ejector Pin Style

Pilot Dia. Max. Stock Thickness Pilot Dia. Max. Stock Thickness
.375” .075” 10mm 1.9mm
.500” .100” 13mm 2.5mm
.625” .125” 16mm 3.2mm

Spring Pressures

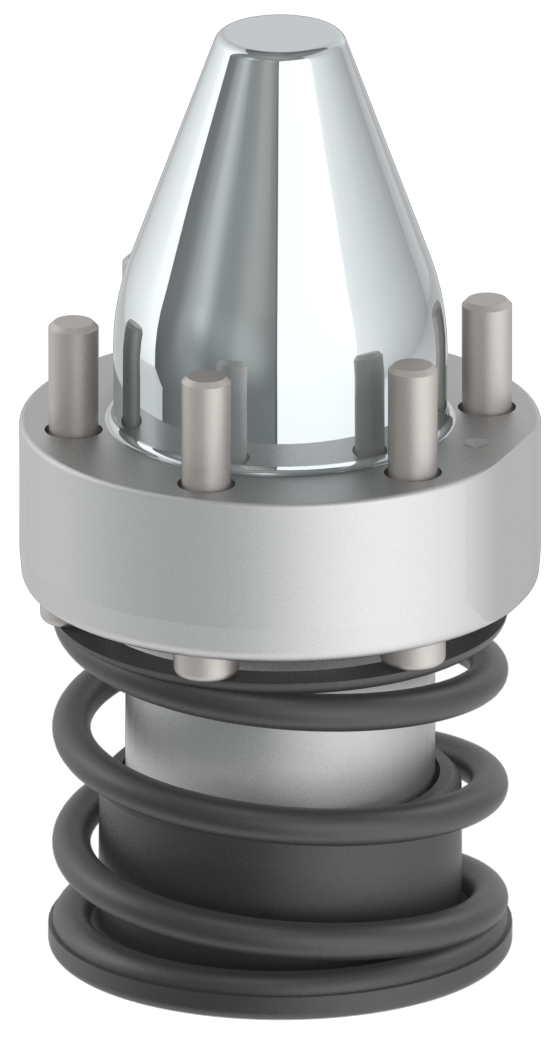

Standard

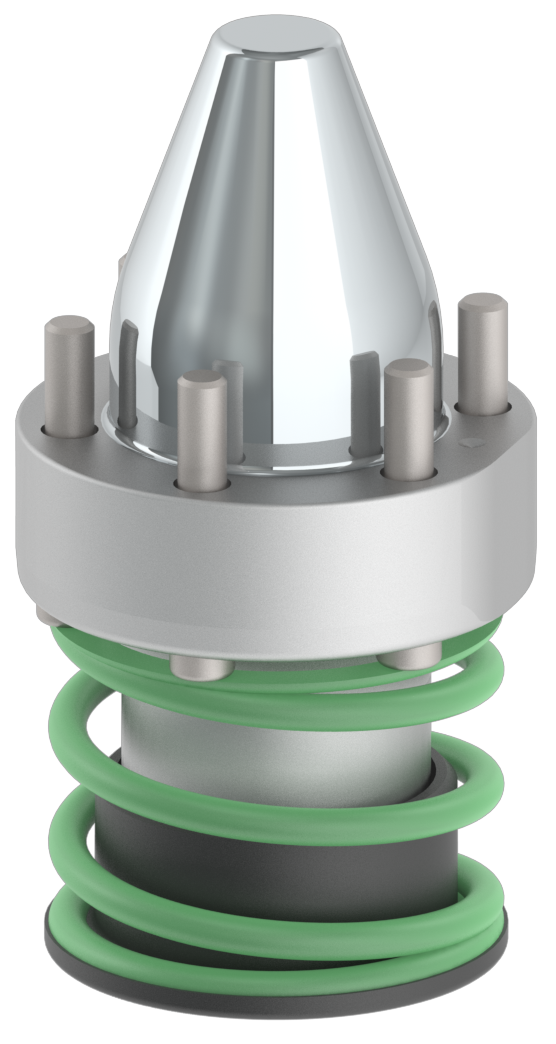

Light

More Details

Pilots - Ejection/Spring Force

Ejector Pins
.375” / 10mm 12 lbs. on Contact
20 lbs. at Max Travel
5 lbs. on Contact
10 lbs. at Max Travel
.500” / 13mm 14 lbs. on Contact
23 lbs. at Max Travel
5 lbs. on Contact
10 lbs. at Max Travel
.625” / 16mm 14 lbs. on Contact
20 lbs. at Max Travel
5 lbs. on Contact
10 lbs. at Max Travel

*Single Spring drives all Ejectors so Forces listed are for the Spring

See all technical data

Pricing

$55.00

PA-10mm/.375"

PA-10mm/.375"

$57.00

PA-13mm/.500"

PA-13mm/.500"

$61.00

PA-16mm/.625"

PA-16mm/.625"

Configure Product

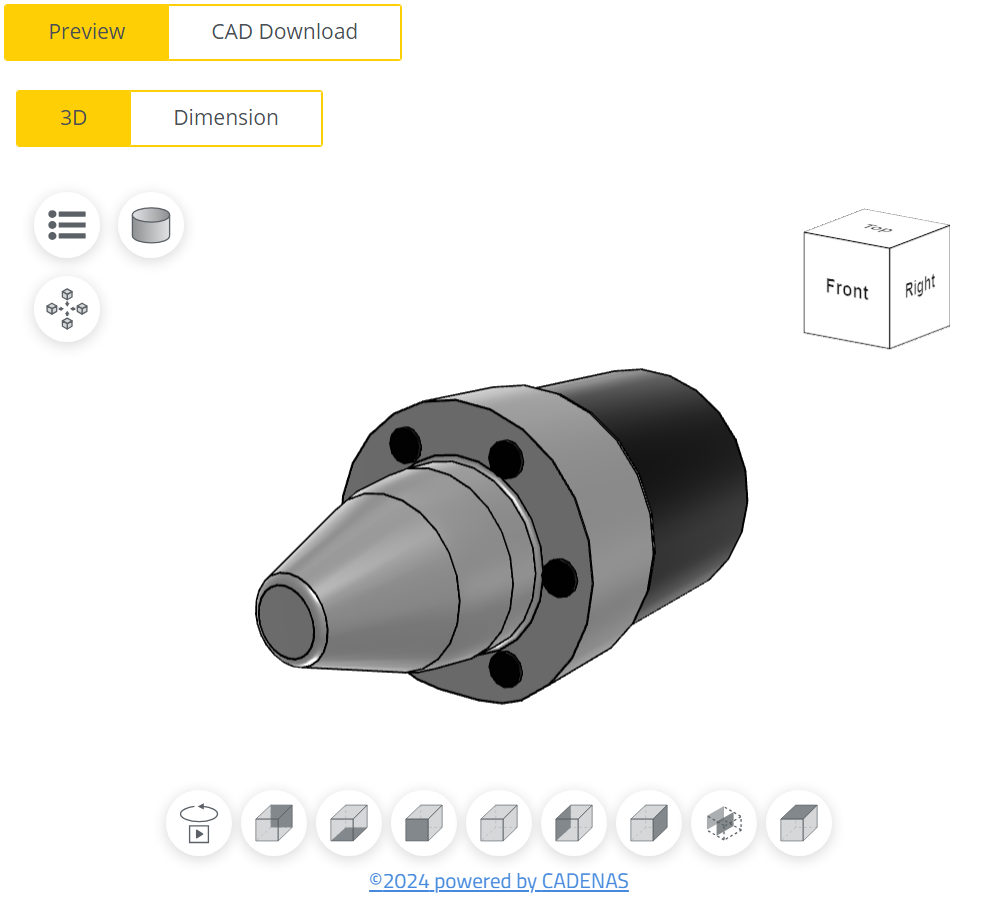

Preview and download the CAD file you need with our product configuration tool.
