Application

Ejector Pin Pilot Assemblies

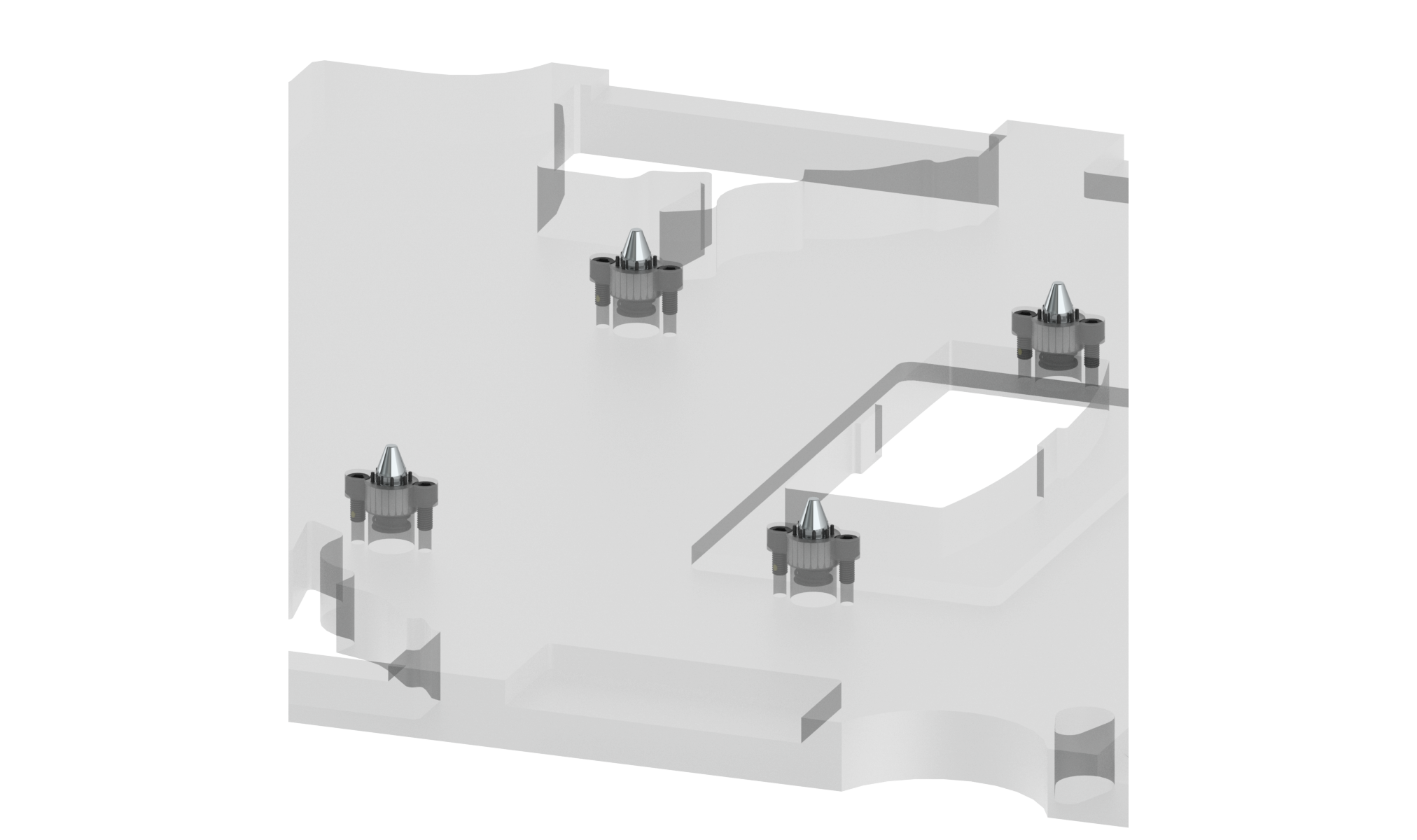

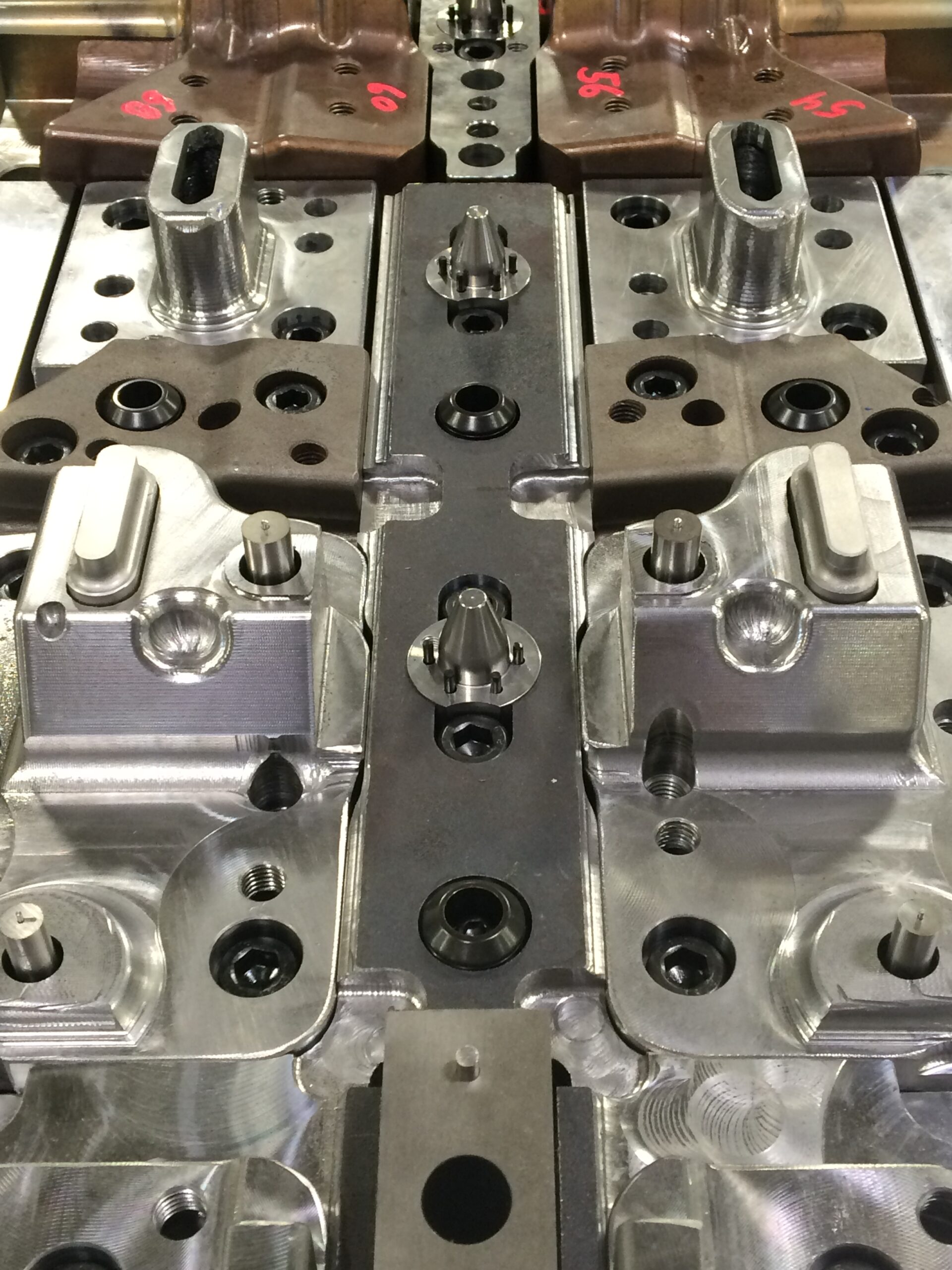

Used to locate and eject heavy duty metal stock in metal stamping dies.

Innovation

Locates and Ejects All-in-One Assembly

Our fully integrated “off the shelf” Pilot Assemblies locate and eject metal stock. They’re designed and manufactured for robust and superior long-life production performance.

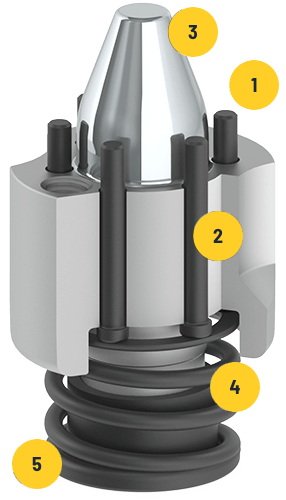

Ejector Pin Style Design Features
(for heavy-duty stock)

  1. Optimal stripping close to pilot
  2. Multiple hardened ejectors
  3. Heavy-duty (M2), one-piece design
  4. Long-lasting spring
  5. Self-contained assembly

Benefits

Superior performance maximizes uptime
Designed to last the life of your die using a long-life spring and ejection close to the pilot.

Global design commonality
Nominal sizes in both English and metric allow for one pilot style in all your global tooling.

Savings in design
All-in-one assembly speeds up design process and drops in your die fast.

Pilot Method Comparison

  • All-in-one assembly
  • Ejection close to pilot
  • Long-life spring
  • Drop-in assembly
  • Pilot body location concentric to pilot point (accurate by design)

  • Lots of loose parts
  • Ejection far from pilot
  • Short life/small springs
  • Not easily removed in press
  • Assembly is labor intensive and full of hassle

  • Lots of loose parts
  • Ejection far from pilot
  • Large footprint
  • Short life/small springs
  • Costly to machine
  • Dowel location is less accurate
See all technical data

Options

Diameters

8mm

Pilot assembly with red stripe

10mm

Pilot assembly with red stripe

13mm

Pilot assembly with red stripe

16mm

Pilot assembly with red stripe

20mm

Pilot assembly with red stripe

.3125"

Pilot assembly with red stripe

.375"

Pilot assembly with red stripe

.500"

Pilot assembly with red stripe

.625"

Pilot assembly with red stripe

.750"

Pilot assembly with red stripe

More Details

Choose a proper Pilot Diameter based on the Stock Thickness

Thickness labeled by red arrows of plate

Stock Thickness in relationship to the Pilot Diameter is important for 2 main reasons.

  1. To provide enough locating surface area, based on land length and diameter, between the pilot and the stock to effectively locate the stock.
  2. To provide a robust assembly that reduces the potential of the Pilot assembly being damaged during common miss-hits/misfeeds where the pilot is required to pierce and/or form the stock.

Maximum Stock Thickness — Ejector Pin Style

Pilot Dia. Max. Stock Thickness Pilot Dia. Max. Stock Thickness
.3125” .050” 8mm 1.27mm
.375” .075” 10mm 1.9mm
.500” .100” 13mm 2.5mm
.625” .125” 16mm 3.2mm
.750” .150” 20mm 3.8mm

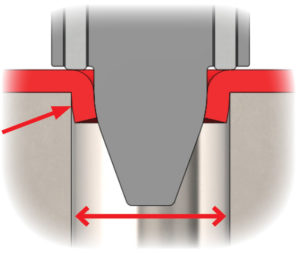

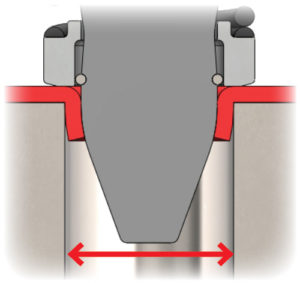

A properly sized receiving hole is important

Clearance minimizes the forces subjected on the Pilot and tooling during a miss-hit situation. The hole below the pilot allows the material to extrude, rather than creating a “pinch trim” situation. See Receiving Hole Guidelines for detailed information on proper sizing.

Style: Ejector Pins

Style: Round Stripper

Mounting Styles

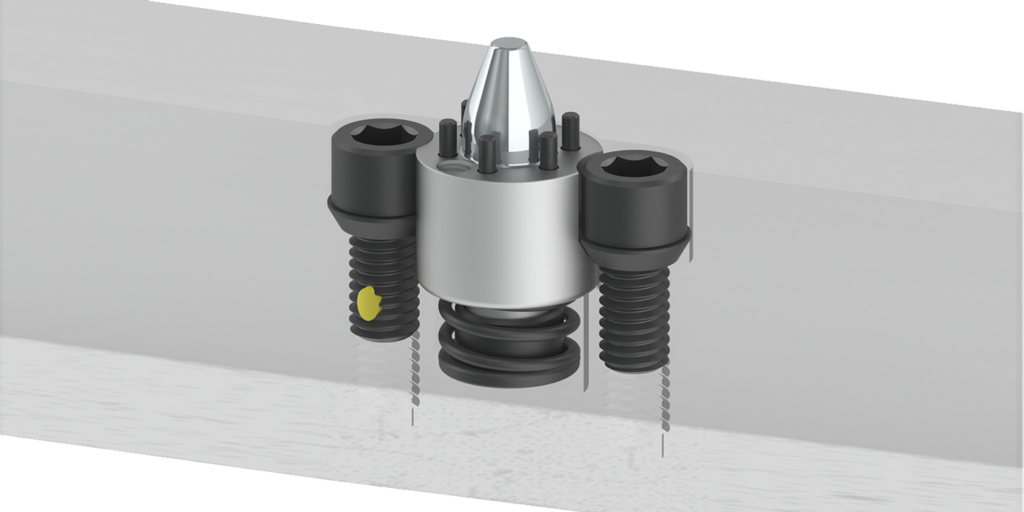

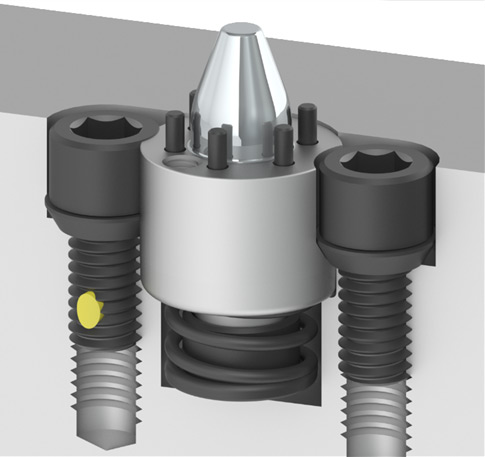

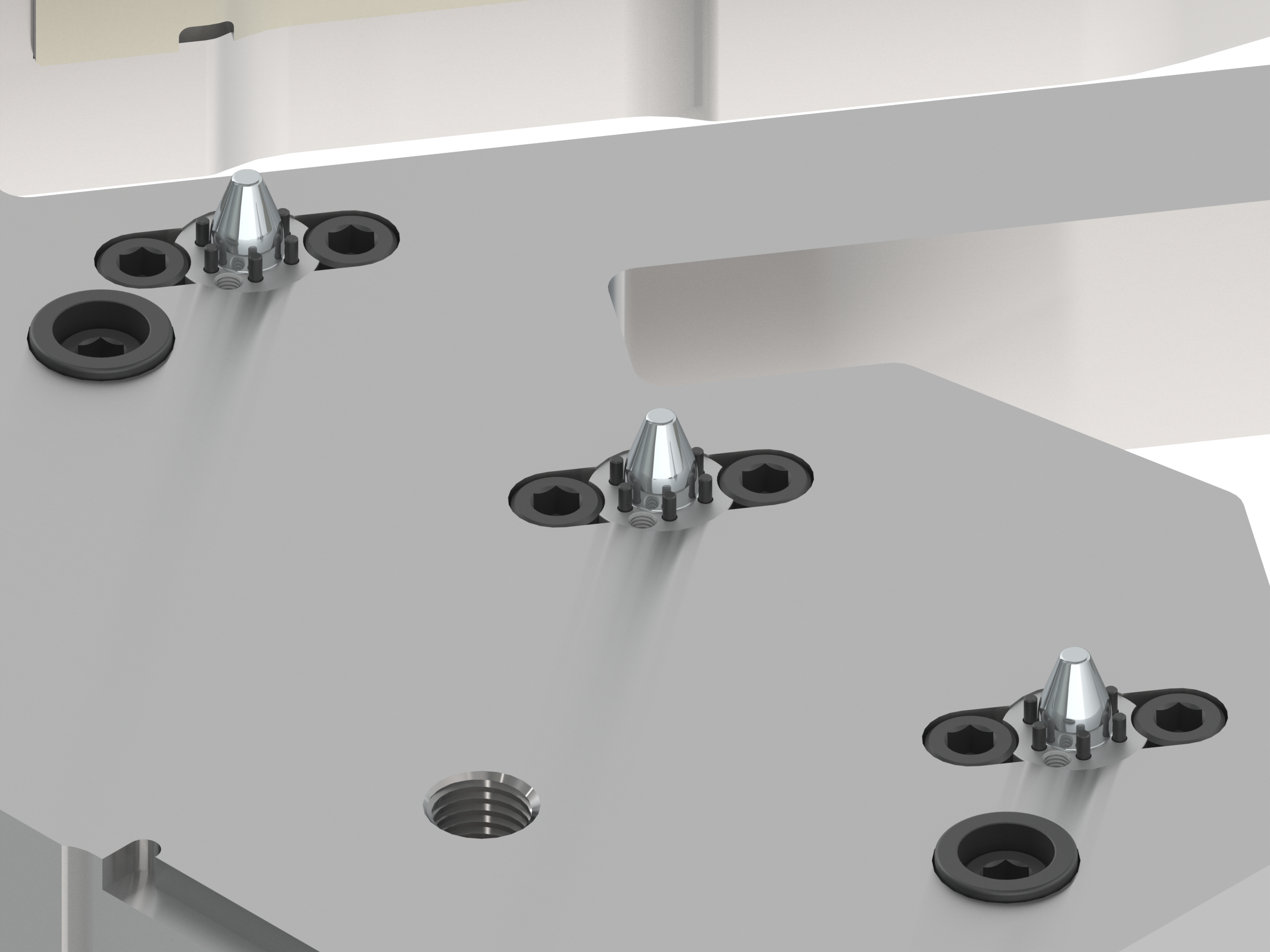

In Pad—Fasteners

Pilot assembly ejector in stripper pad

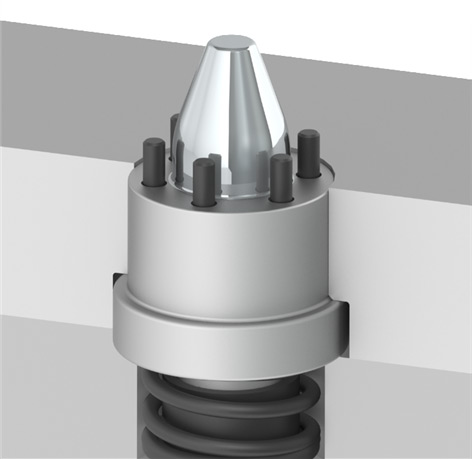

In Window

Pilot piece with ejector in window of assembly

Spring Pressures

Standard

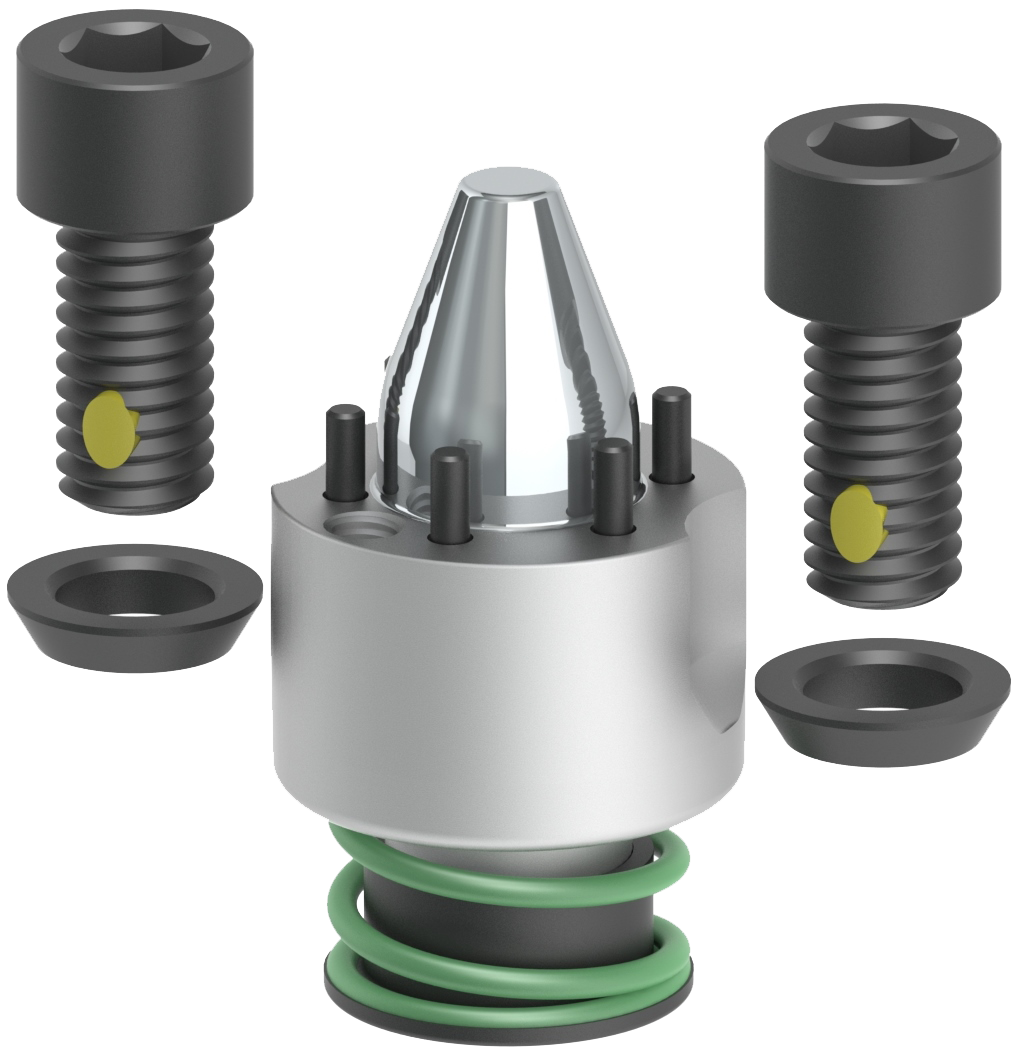

Light

More Details

Pilots - Ejection/Spring Force

Ejector Pins
Pilot Diameter Standard Spring* Light Spring*
.3125” / 8mm 10 lbs. on Contact
15 lbs. at Max Travel
5 lbs. on Contact
10 lbs. at Max Travel
.375” / 10mm 12 lbs. on Contact
20 lbs. at Max Travel
5 lbs. on Contact
10 lbs. at Max Travel
.500” / 13mm 14 lbs. on Contact
23 lbs. at Max Travel
5 lbs. on Contact
10 lbs. at Max Travel
.625” / 16mm 14 lbs. on Contact
20 lbs. at Max Travel
5 lbs. on Contact
10 lbs. at Max Travel
.750” / 20mm 14 lbs. on Contact
20 lbs. at Max Travel
5 lbs. on Contact
10 lbs. at Max Travel

*Single Spring drives all Ejectors so Forces listed are for the Spring

See all technical data

Pricing

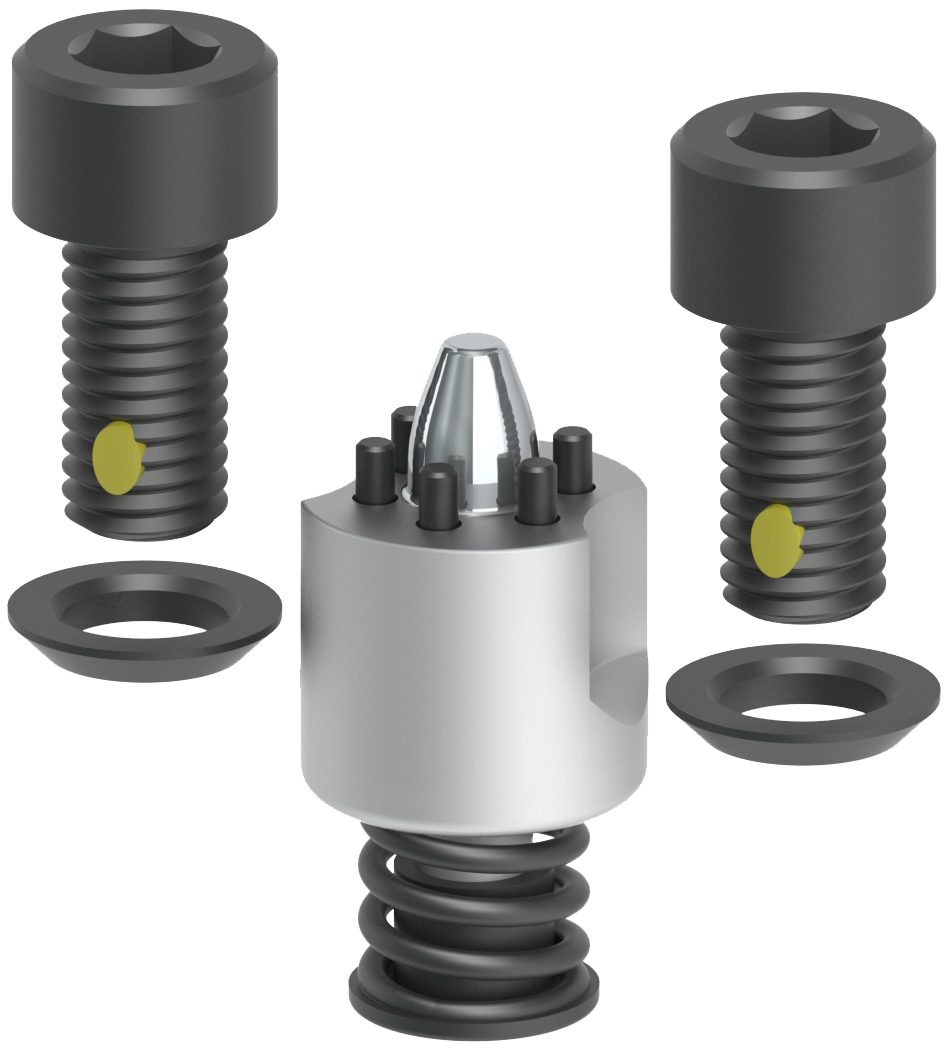

Pilot Assembly - 8mm

$48.00

PA-8mm/.3125"

PA-8mm/.3125"

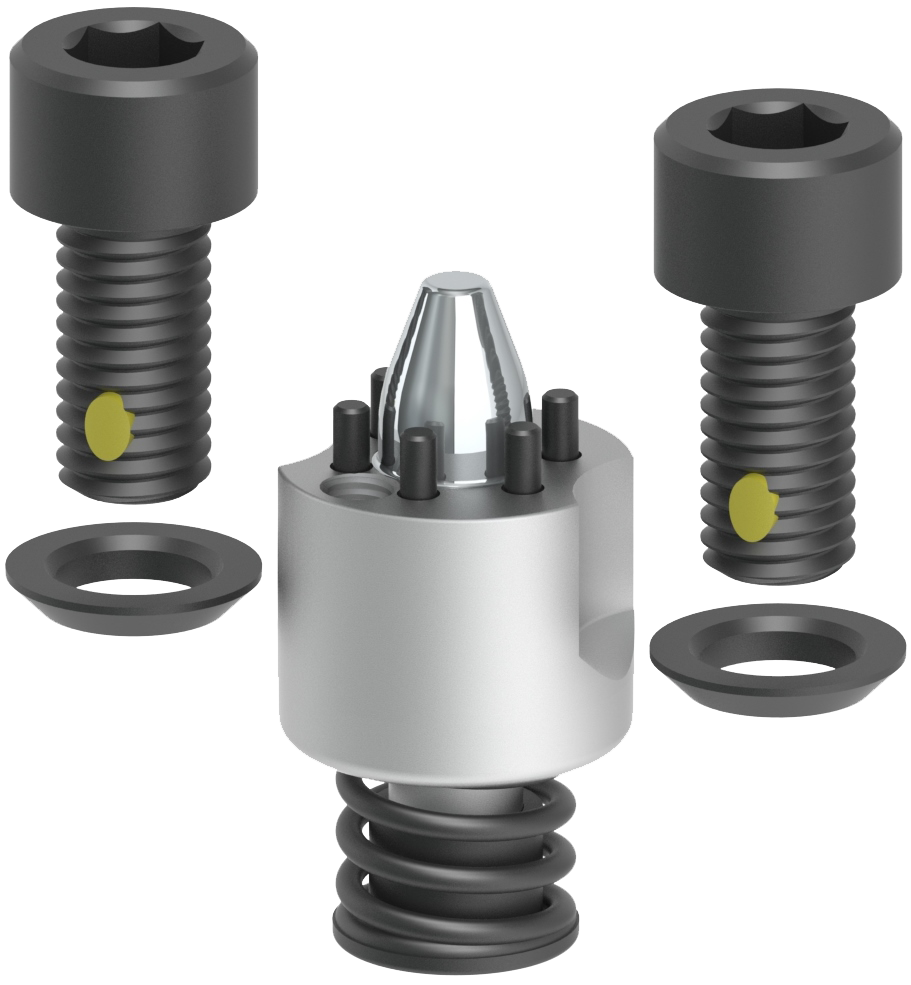

Pilot Assembly - 10mm

$51.00

PA-10mm/.375"

PA-10mm/.375"

Pilot Assembly - 13mm

$53.00

PA-13mm/.500"

PA-13mm/.500"

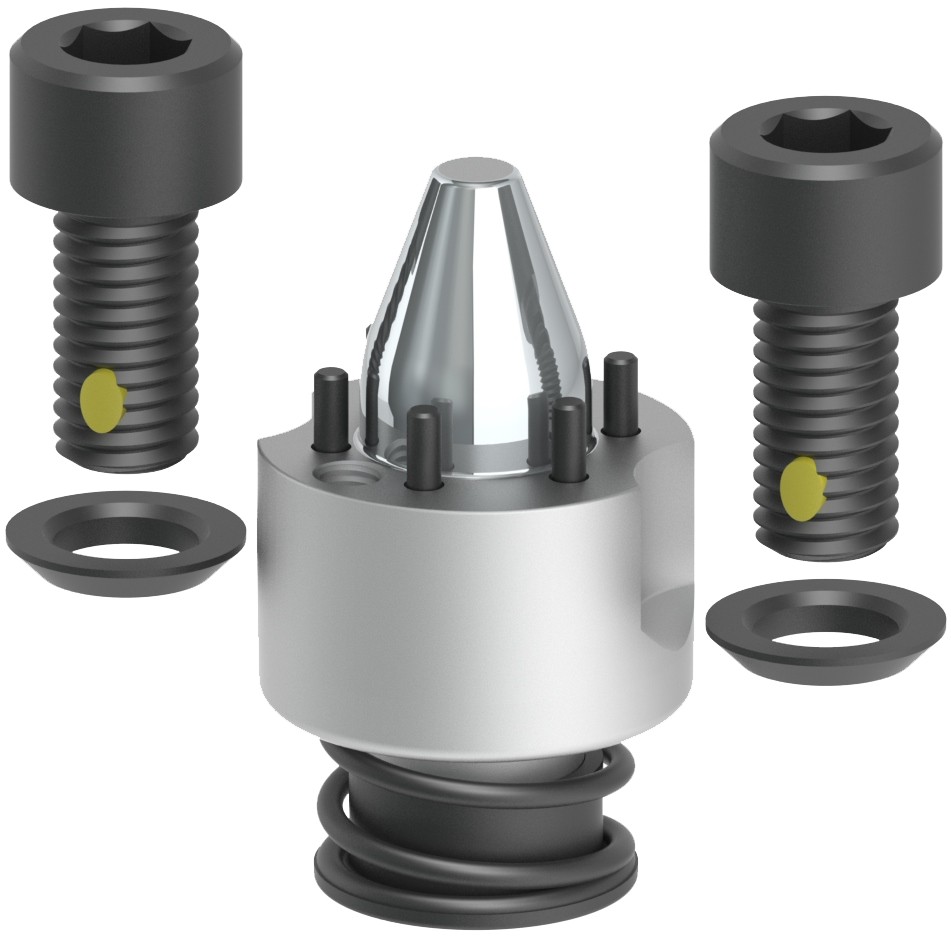

Pilot Assembly - 16mm

$57.00

PA-16mm/.625"

PA-16mm/.625"

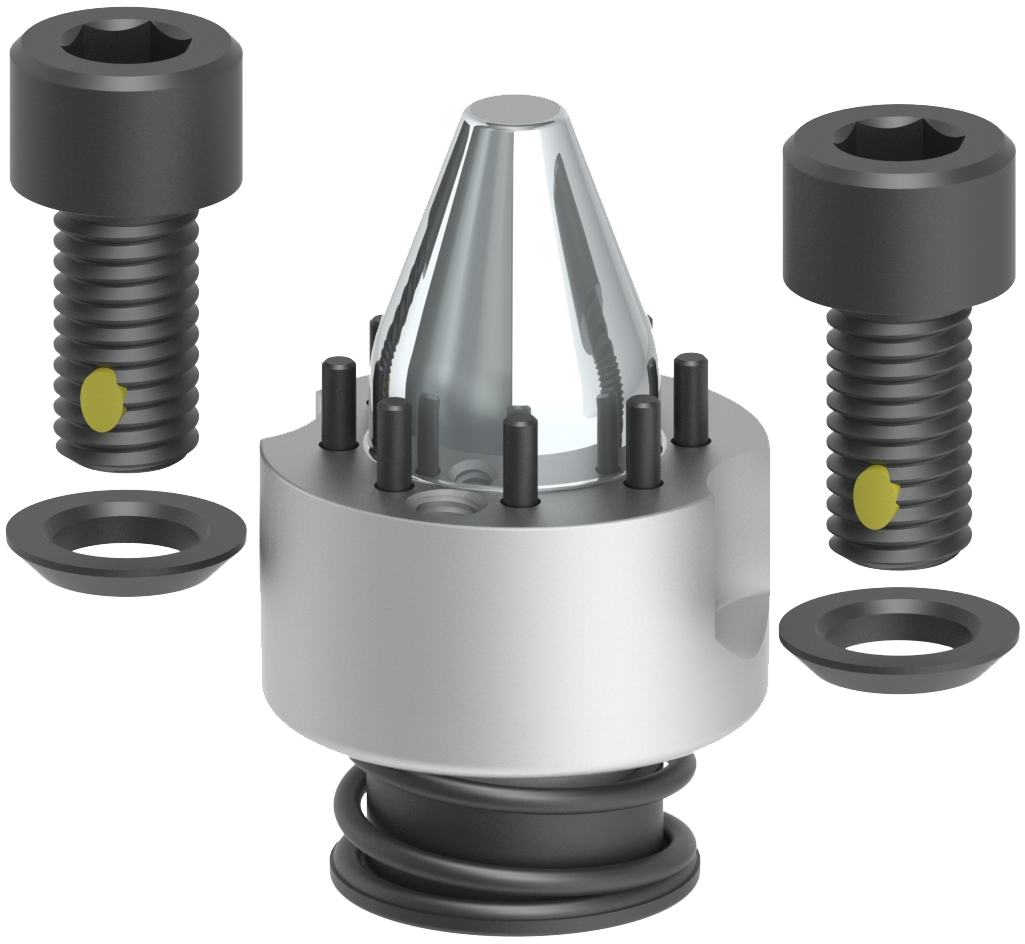

Pilot Assembly - 20mm

$64.00

PA-20mm/.750"

PA-20mm/.750"

Configure Product

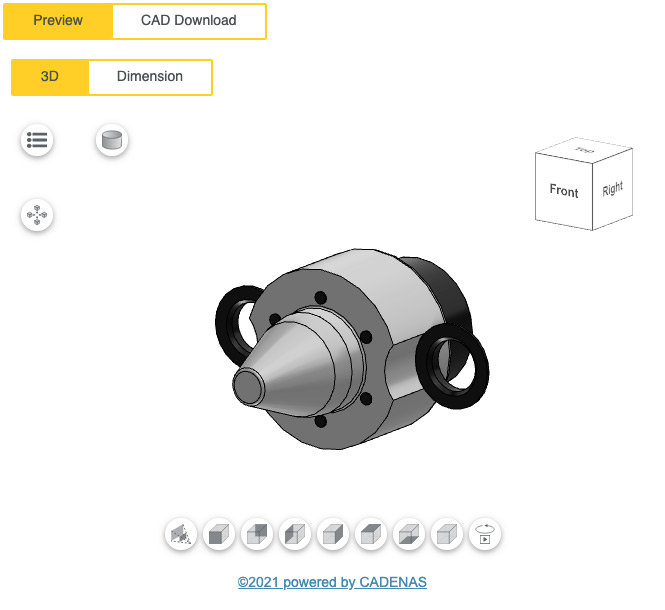

Preview and download the CAD file you need with our product configuration tool.

See product configuration
